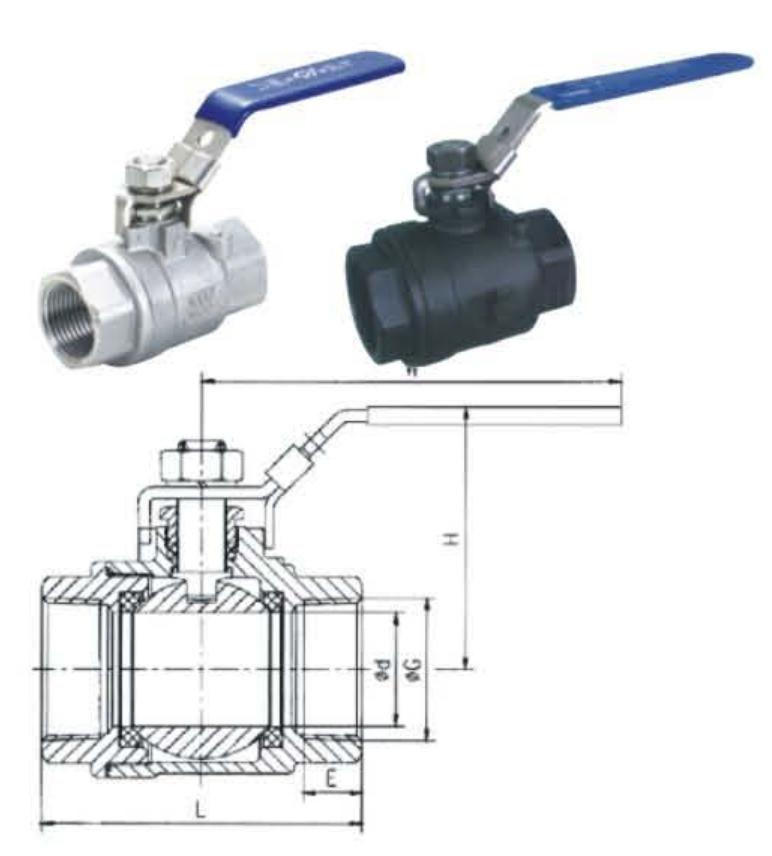

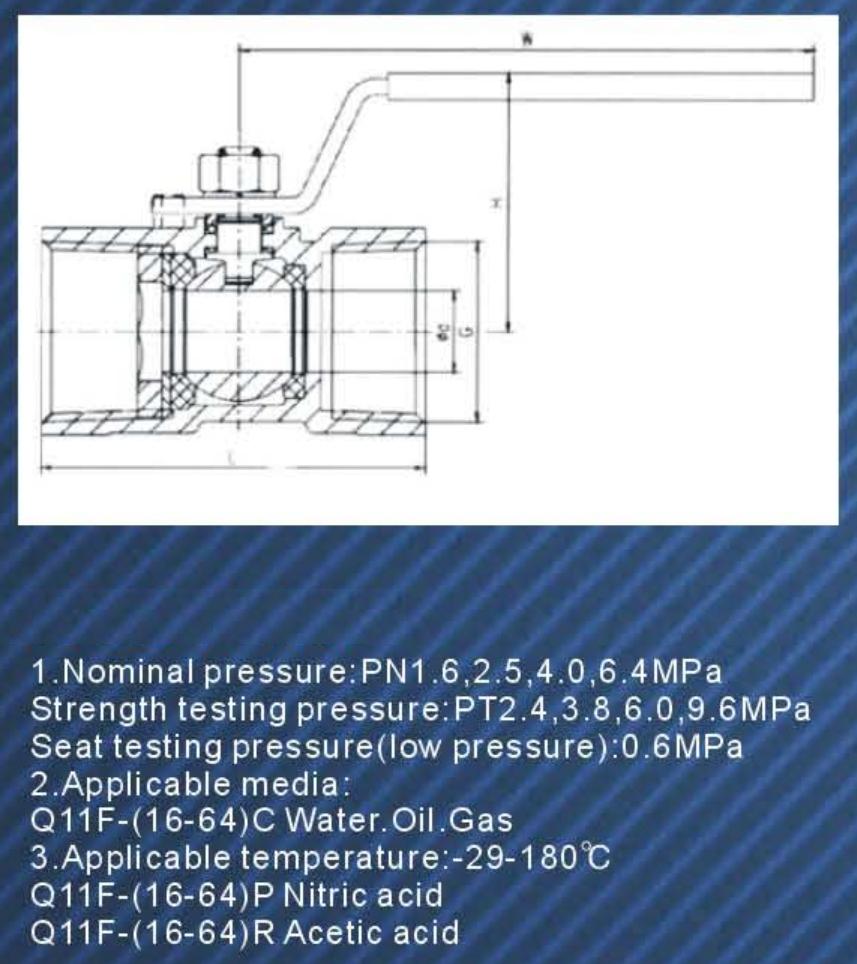

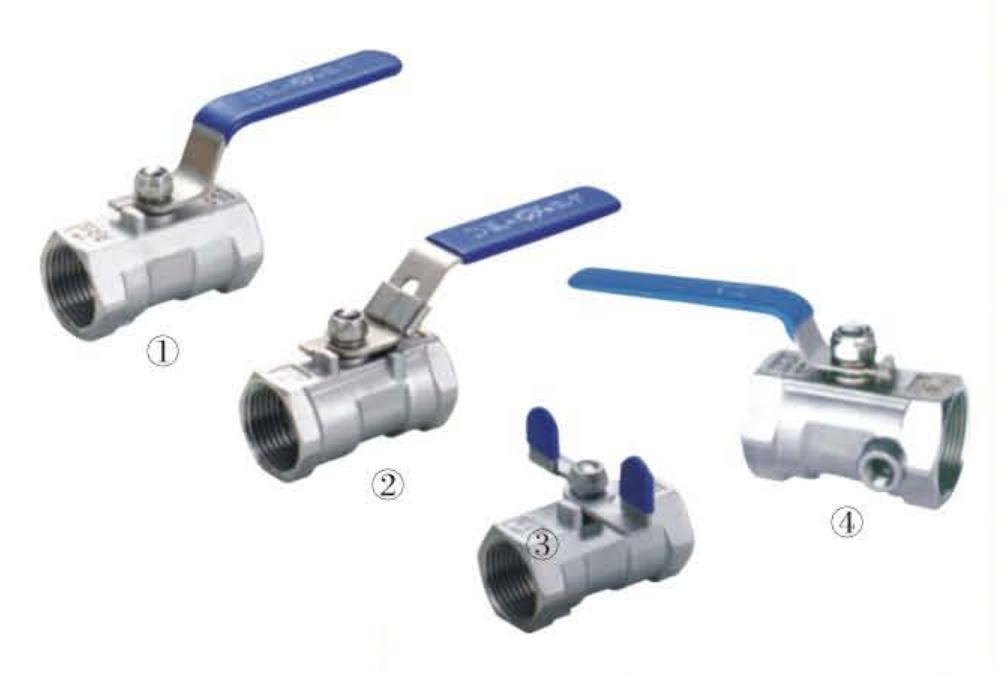

1PC-2PC TYPE BALL VALVE WITH INTERNAL THREAD

Description

1. Nominal pressure: PN1.6, 2.5, 4.0, 6.4MPa
   Strength testing pressure: PT2.4, 3.8, 6.0, 9.6MPa
   Seat testing pressure (low pressure): 0.6MPa
2. Applicable media:
   Q11F-(16-64)C Water, Oil, Gas
   Q11F-(16-64)P Nitric acid
   Q11F-(16-64)R Acetic acid
3. Applicable temperature: -29-180°C
