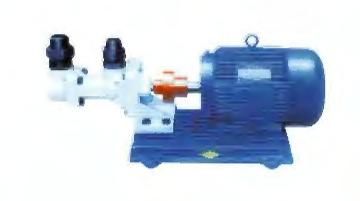

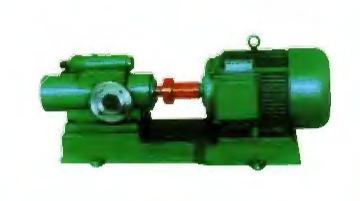

Product Name: 3G Series Three Screw Pump
Application: Mainly used to deliver lubricating medium, such as fuel oil, lubricating oil, hydraulic oil, etc. It can also be used to deliver other liquids with similar properties.
Features:

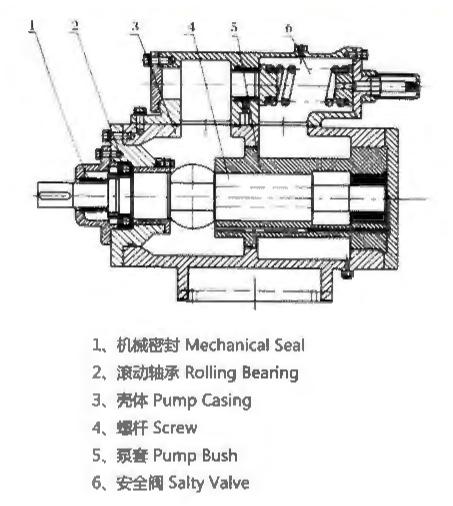

Structure: The pump consists of a driving screw and two driven screws that mesh with each other. The screws are enclosed in a housing with three holes, forming a sealed chamber.

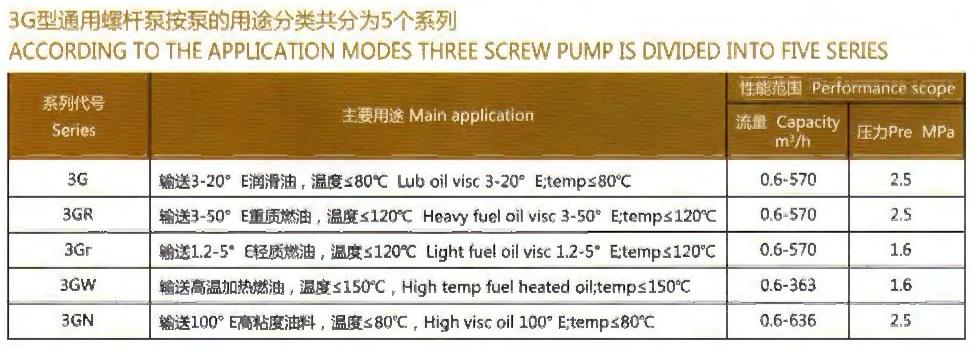

According to the application, model three screw pumps is divided into five series.

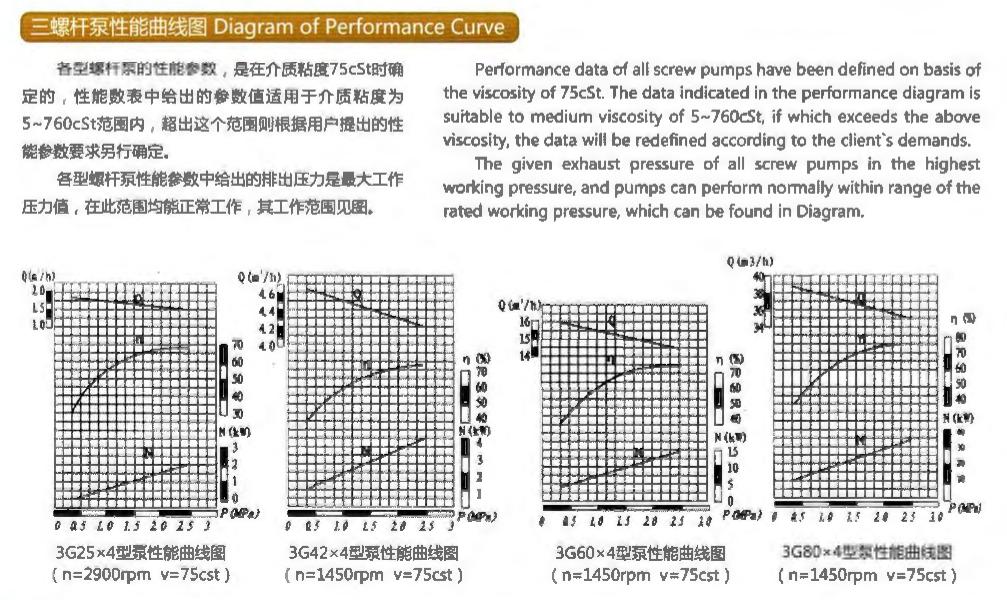

Technical Diagram of Performance Curve

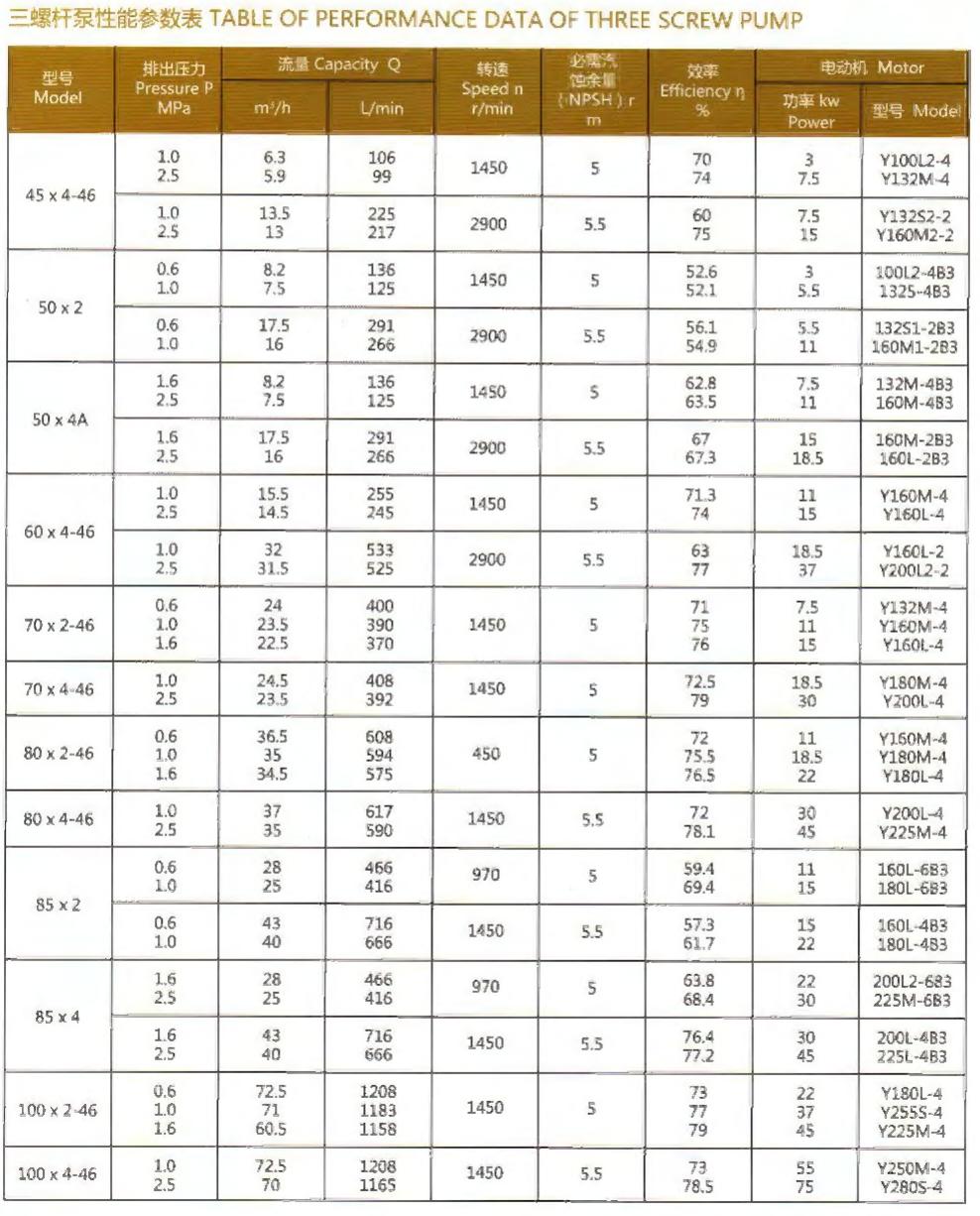

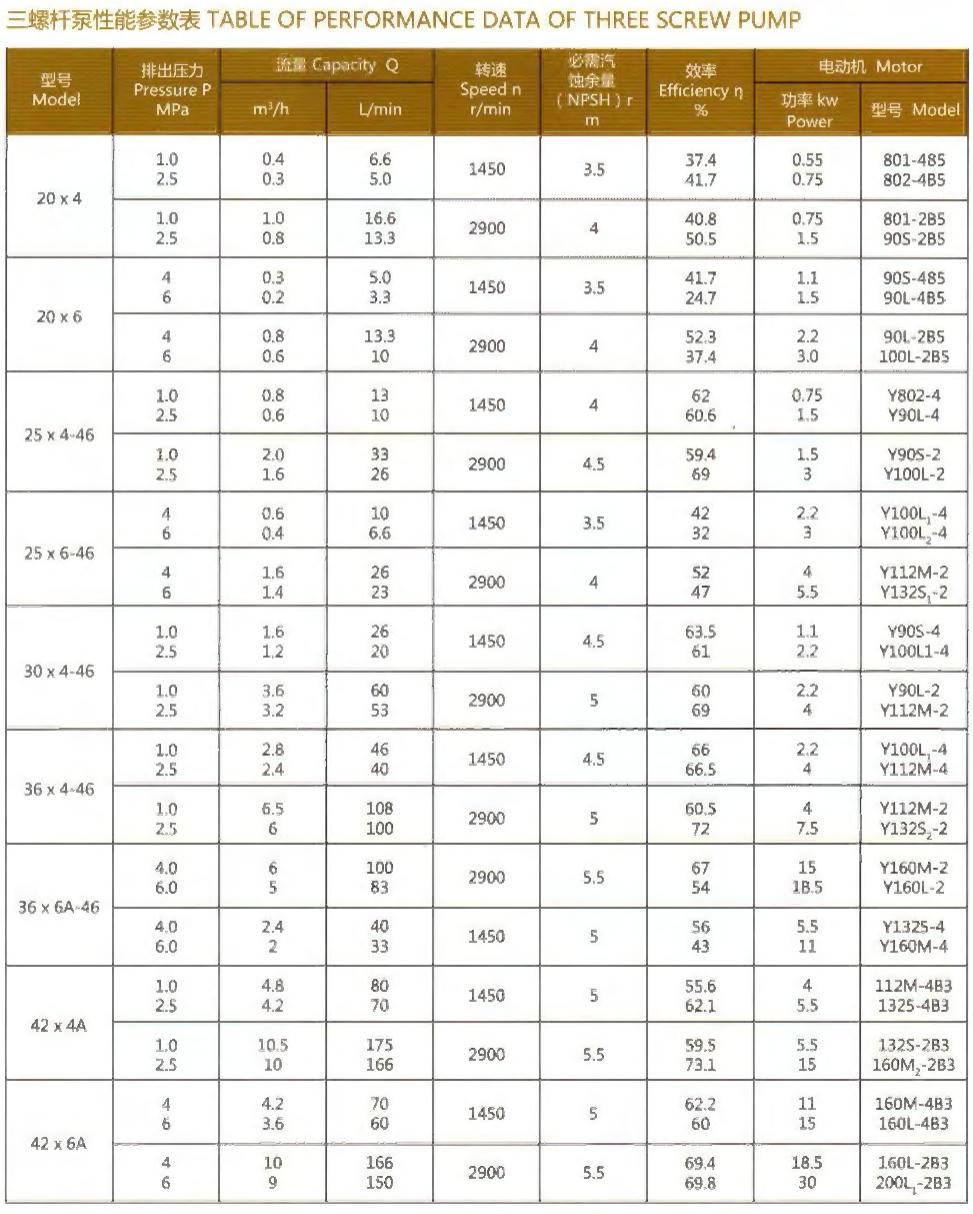

Table of Performance Data of Three Screw Pump
