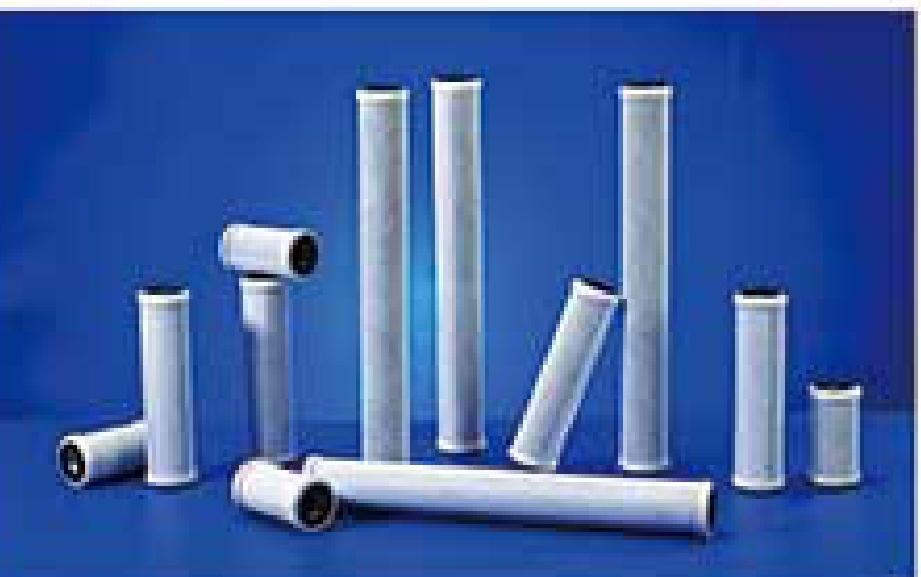

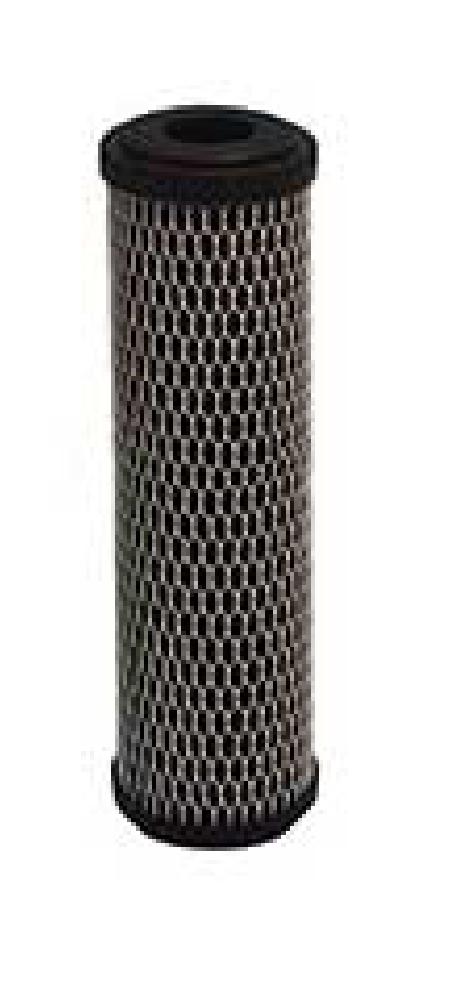

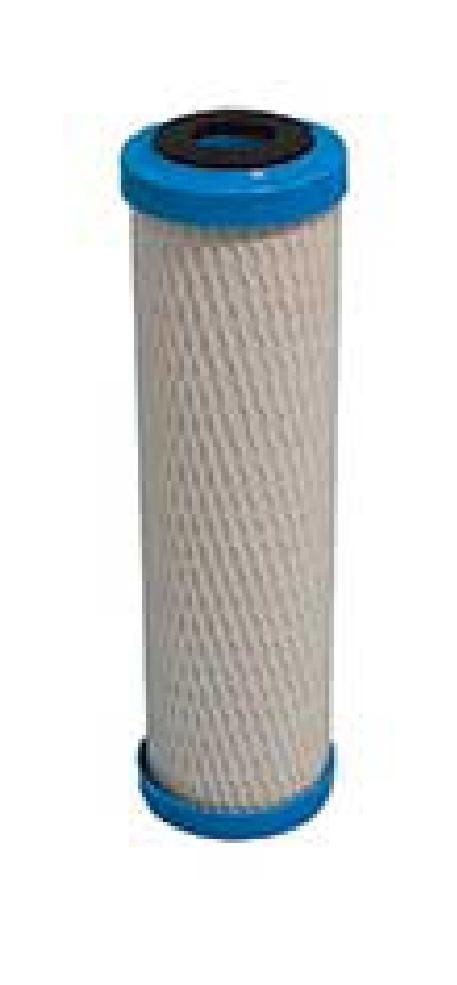

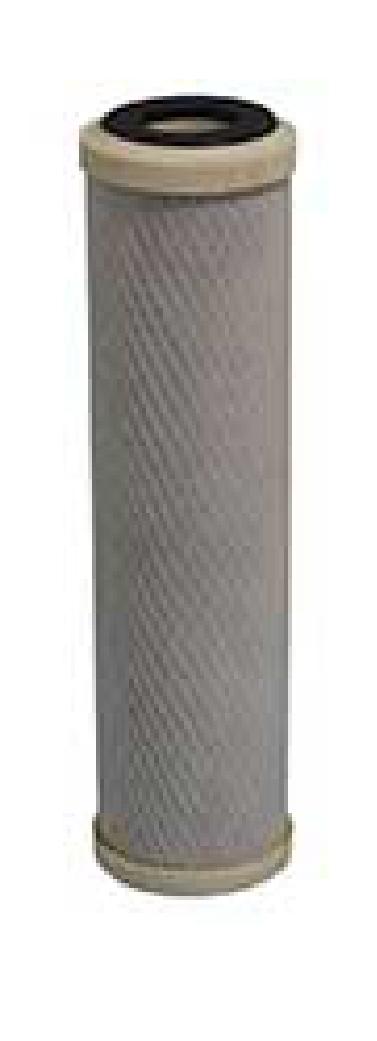

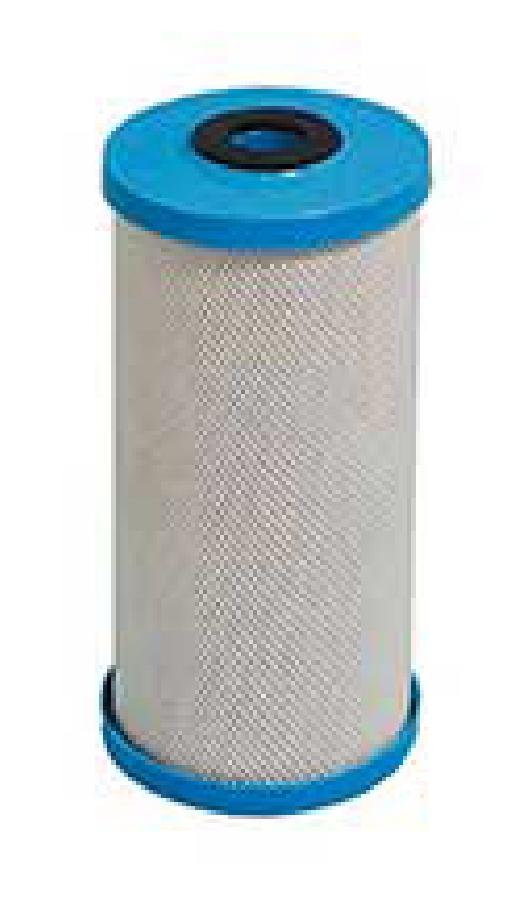

Activated carbon filter element is made of high-quality nutshell charcoal and coal-based activated carbon as raw materials, supplemented by edible-grade binders, and is processed by high-tech and special processes. It integrates adsorption, filtration, interception, and catalysis. It removes organic matter, residual chlorine and other radioactive substances in the water, and has the effect of decolorizing and removing peculiar smell. It is an ideal new generation product in the liquid and air purification industry.
Operating temperature: 52°C
Rated flow rate: ≤300L/h (refers to the flow rate of filtered water per 250mm long filter element)
Size: outer diameter 65mm inner diameter 30mm
Length: 130+2mm 250+2mm(254) 500+2mm(508) 750+2mm(762) 1000+2(1016)
Specific surface area: 800~1000 m²/g; Carbon tetra-chloride adsorption rate: 50~60%;
Benzene adsorption capacity: 20~25%; Ash moisture content: ≤3.5%;
Iodine adsorption value: ≥800~1000mg/g; Methylene blue adsorption value: 14~16ml/g.
Electronics, electric power industry: pure water, gas, electrofluid, printing wire plate, etc.
Chemical, petrochemical: solvents, coatings, magnetic pulps, detergents, liquid candle, etc.
Pharmaceutical industry: hospital water, pharmaceutical injections, traditional Chinese medicine, etc.
Food industry: food, beverages, drinking water, alcohol, etc.
