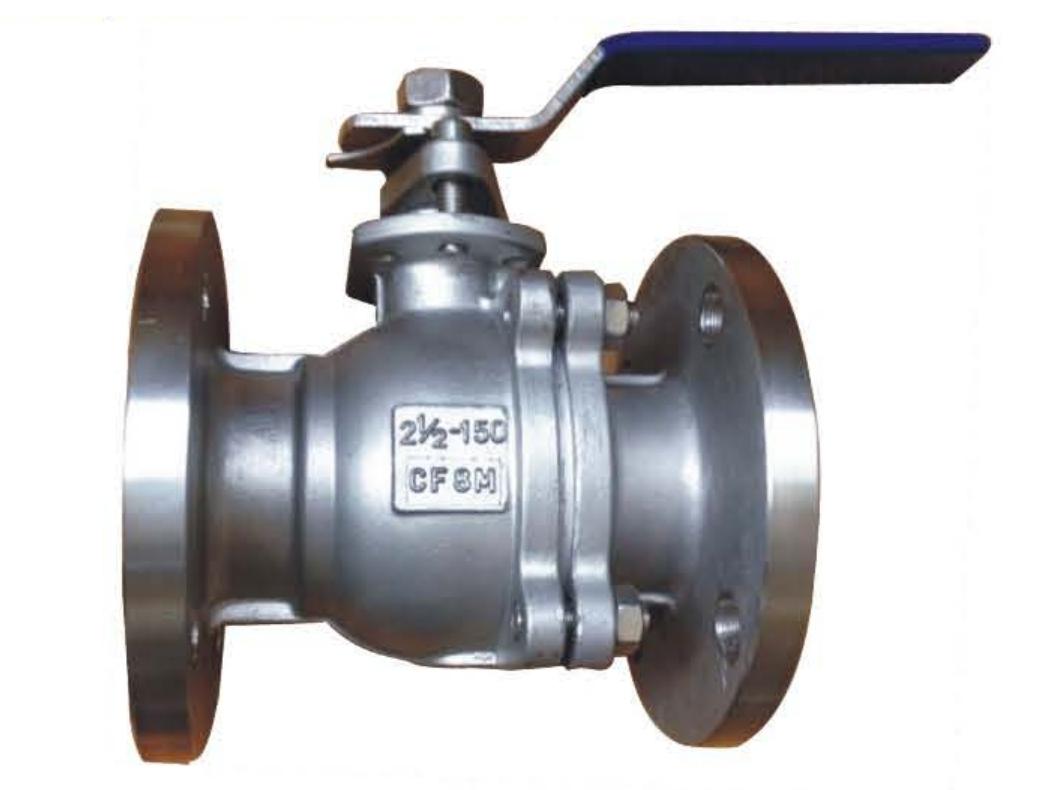

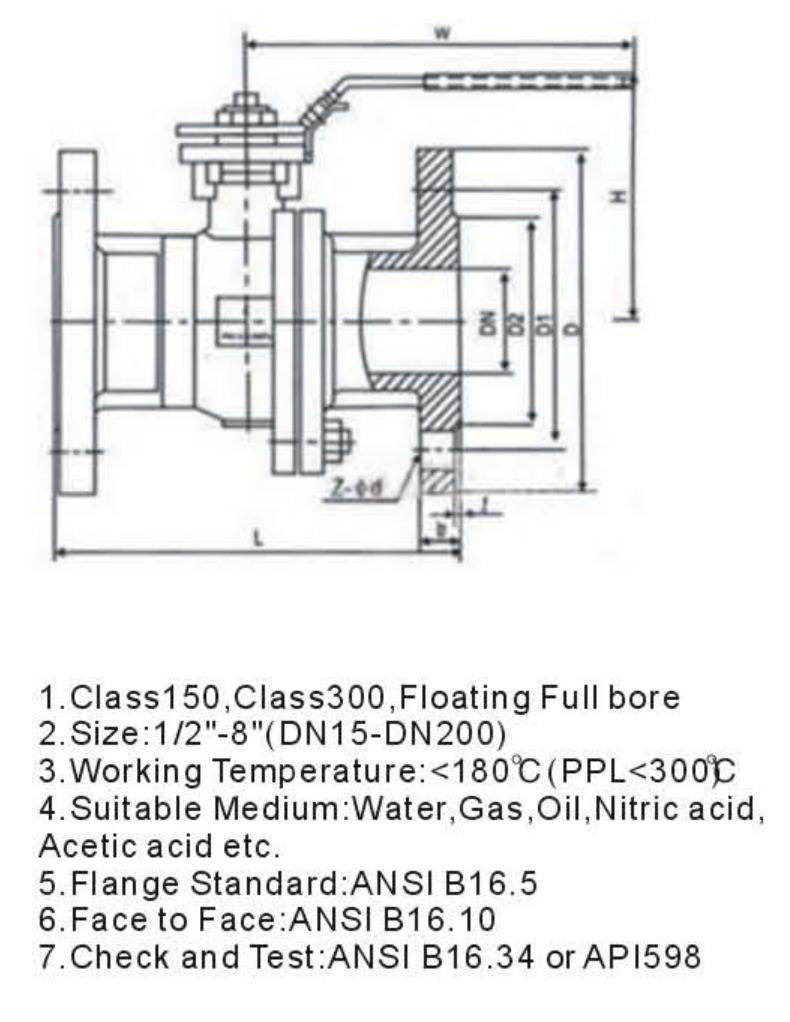

ANSI BALL VALVES-CLASS150-300

1. Class150, Class300, Floating Full bore
2. Size: 1/2''-8'' (DN15-DN200)
3. Working Temperature: ≤180°C (PPL≤300°C)
4. Suitable Medium: Water, Gas, Oil, Nitric acid, Acetic acid etc.
5. Flange Standard: ANSI B16.5
6. Face to Face: ANSI B16.10
7. Check and Test: ANSI B16.34 or API598

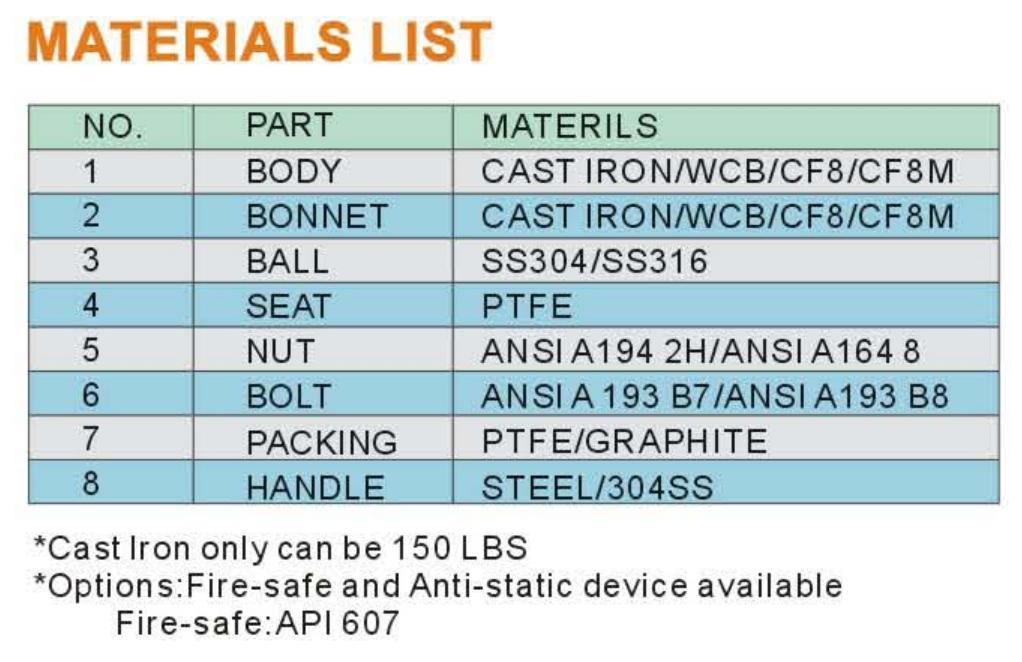

Materials List

• Body: Cast Iron/WCB/CF8/CF8M
• Bonnet: Cast Iron/WCB/CF8/CF8M
• Ball: SS304/SS316
• Seat: PTFE
• Nut: ANSI A194 2H/ANSI A164 8
• Bolt: ANSI A193 B7/ANSI A193 B8
• Packing: PTFE/Graphite
• Handle: Steel/304SS

*Cast Iron only can be 150 LBS
*Options: Fire-safe and Anti-static device available
Fire-safe: API 607
