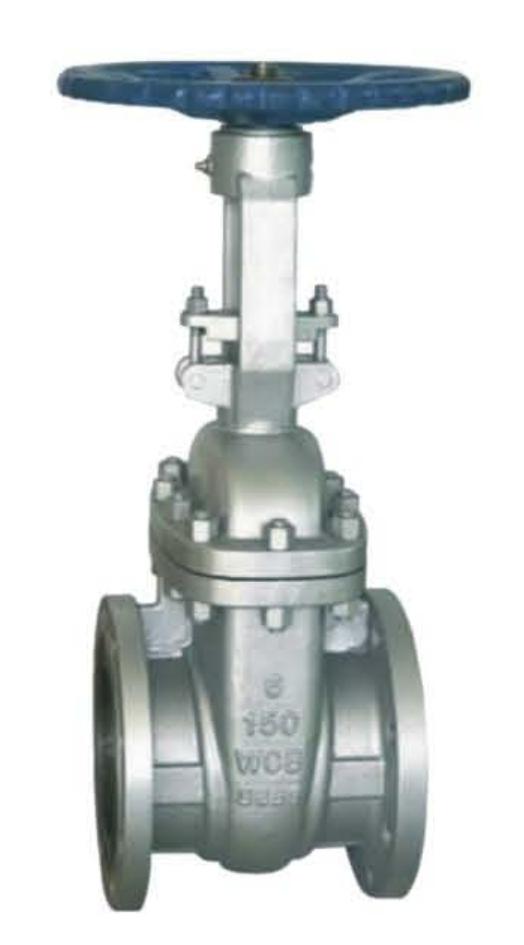

ANSI CAST STEEL GATE VALVE-CLASS150

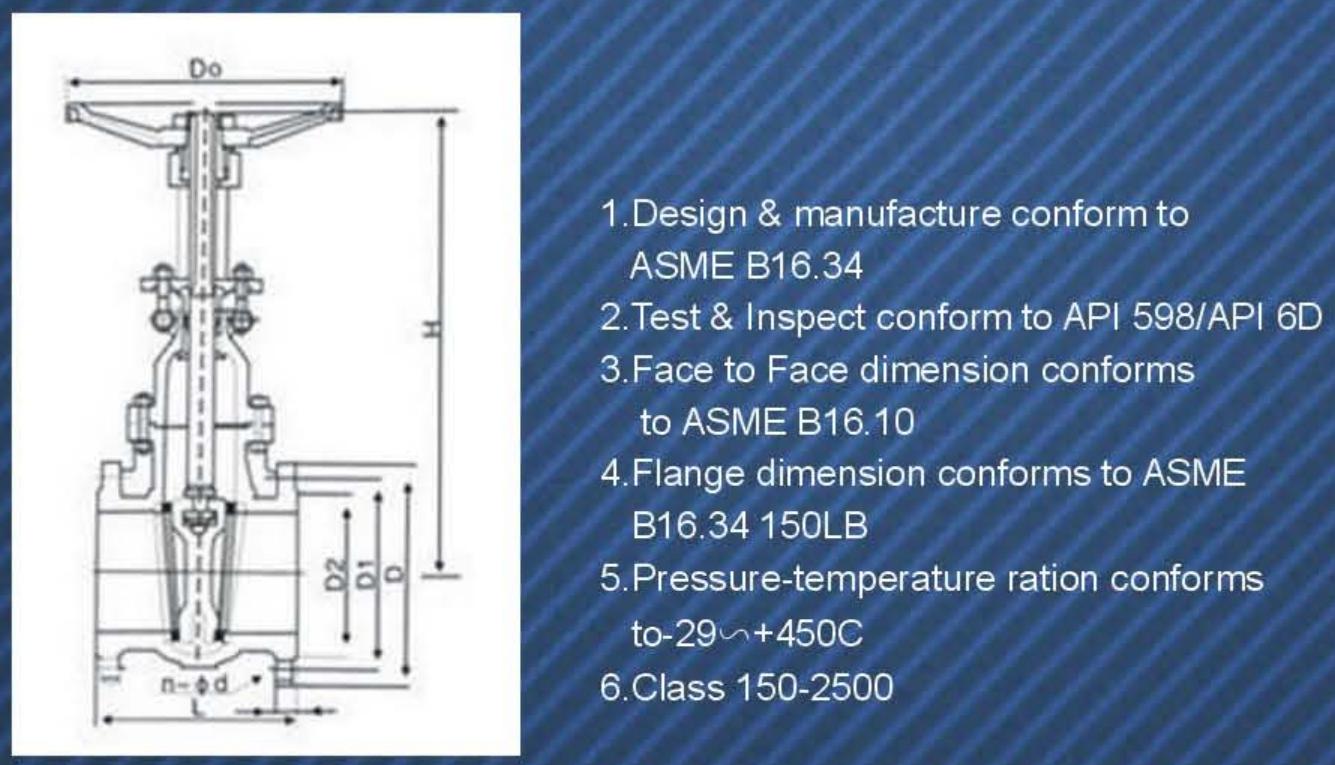

1. Design & manufacture conform to ASME B16.34
2. Test & Inspect conform to API 598/API 6D
3. Face to Face dimension conforms to ASME B16.10
4. Flange dimension conforms to ASME B16.34 150LB
5. Pressure temperature ration conforms to -29~+450C
6. Class 150-2500
