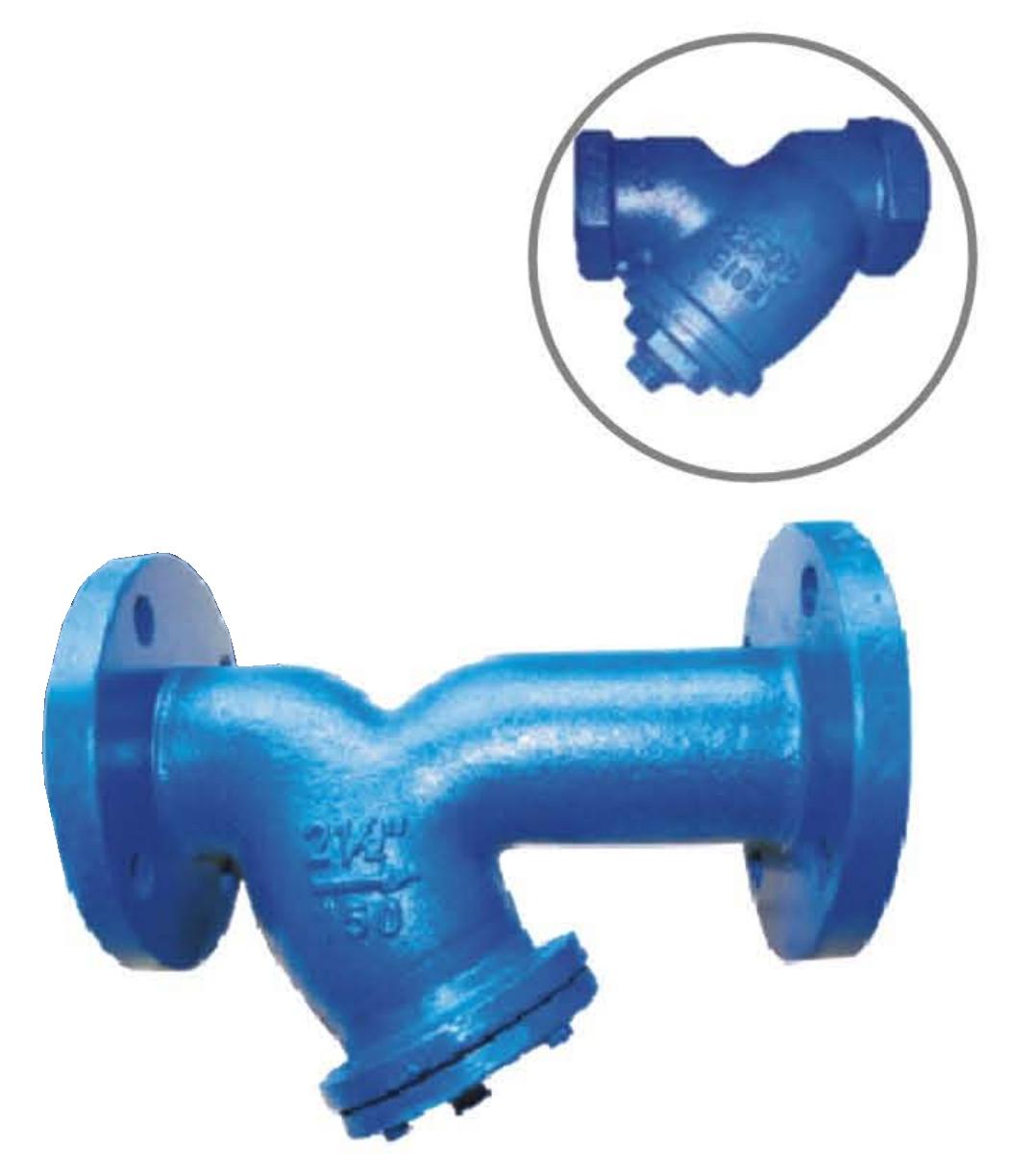

ANSI Y STRAINERS-CLASS125-150

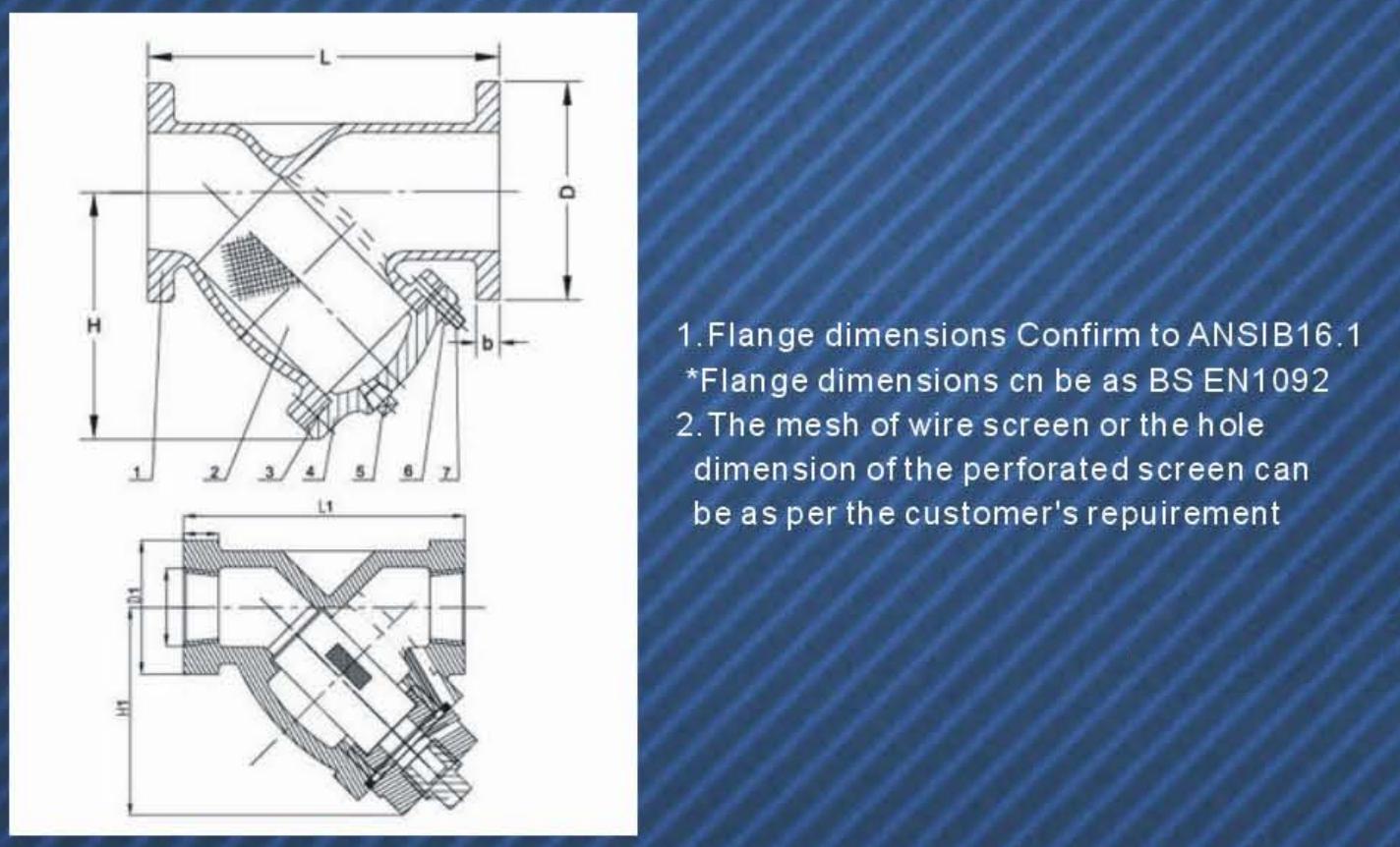

1. Flange dimensions confirm to ANSI B16.1.

*Flange dimensions can be as BS EN1092.

2. The mesh of wire screen or the hole dimension of the perforated screen can be as per the customer's requirement.

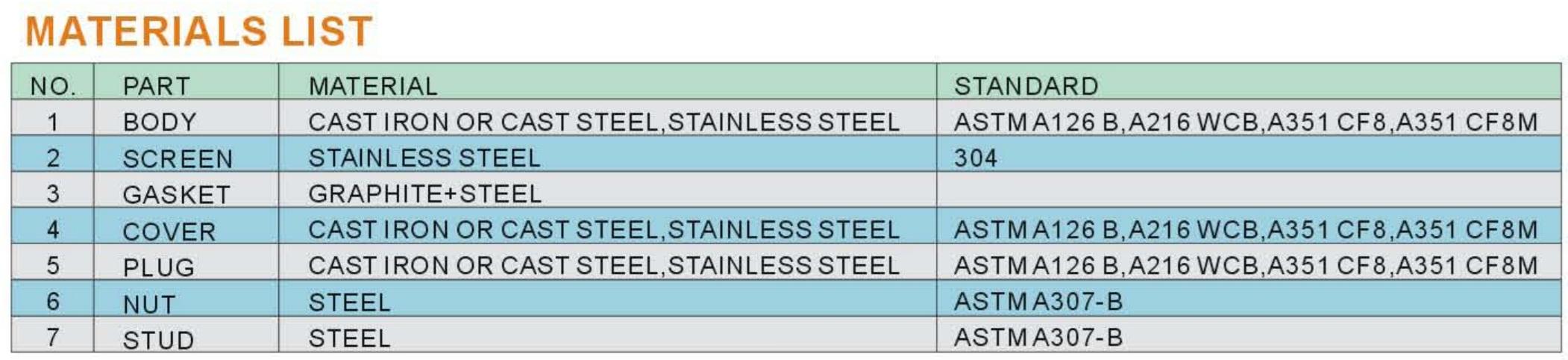

Materials List

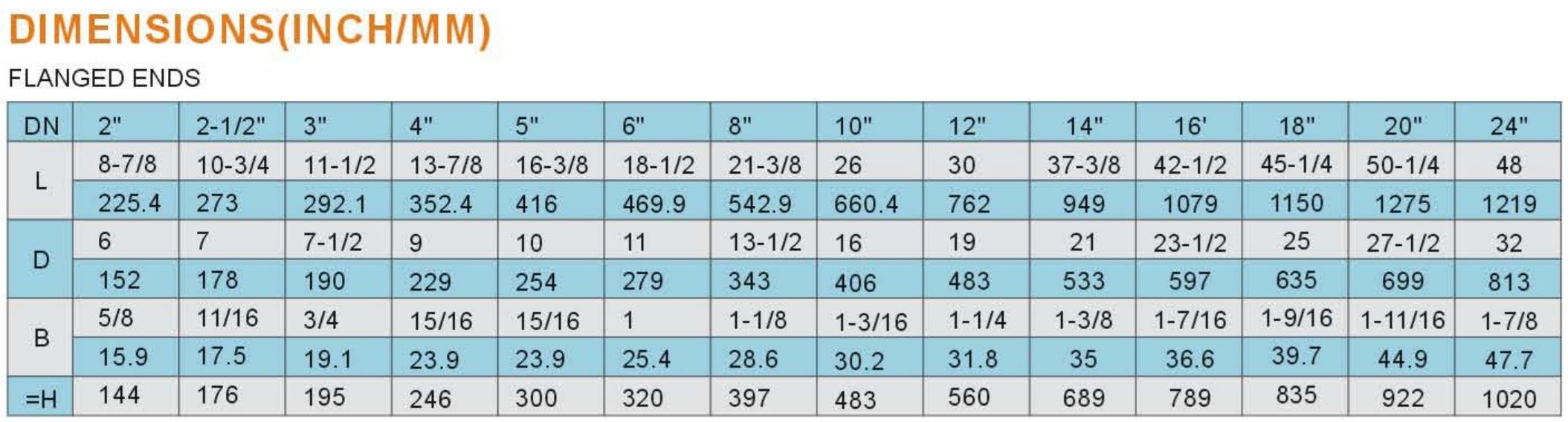

Dimensions (Inch/mm)

Flanged Ends

Threaded Ends (NPT)
