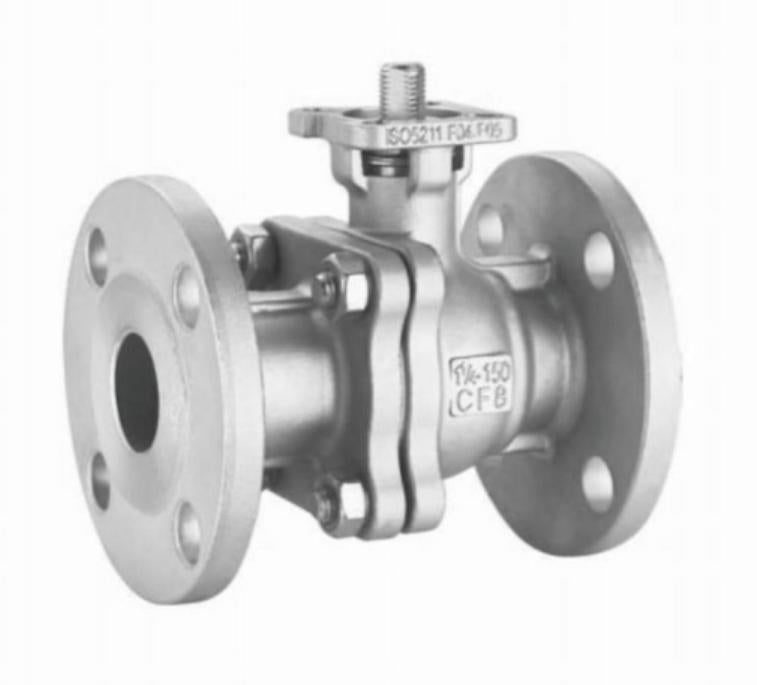

API STANDARD HIGH PLATFORM FLANGE BALL VALVE

Main Performance Specifications

Design and manufacture: ASME B16.34-2004
Structural length: ASME B16.10-2000
Connection size: ASME B16.5-2003
Inspection and test: API 598-2004

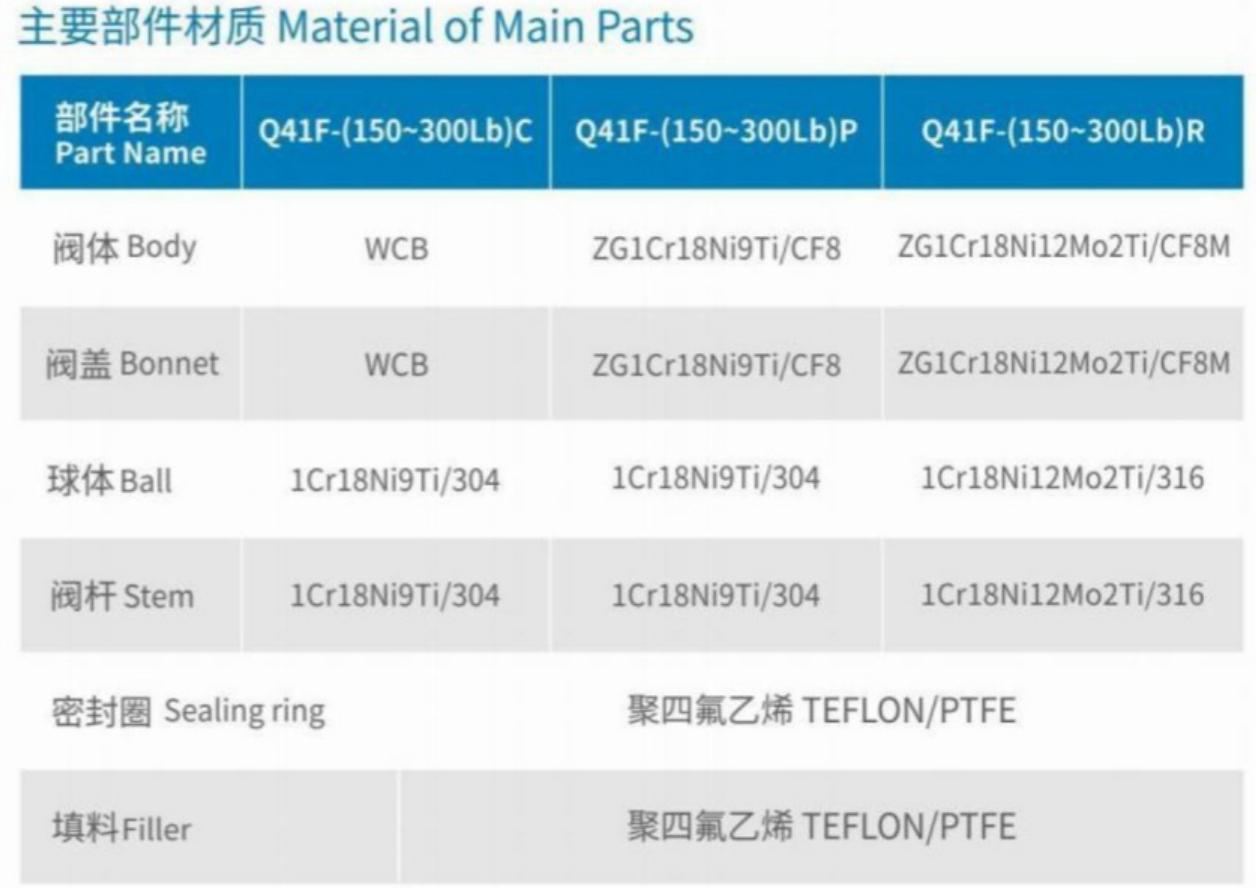

Material of Main Parts

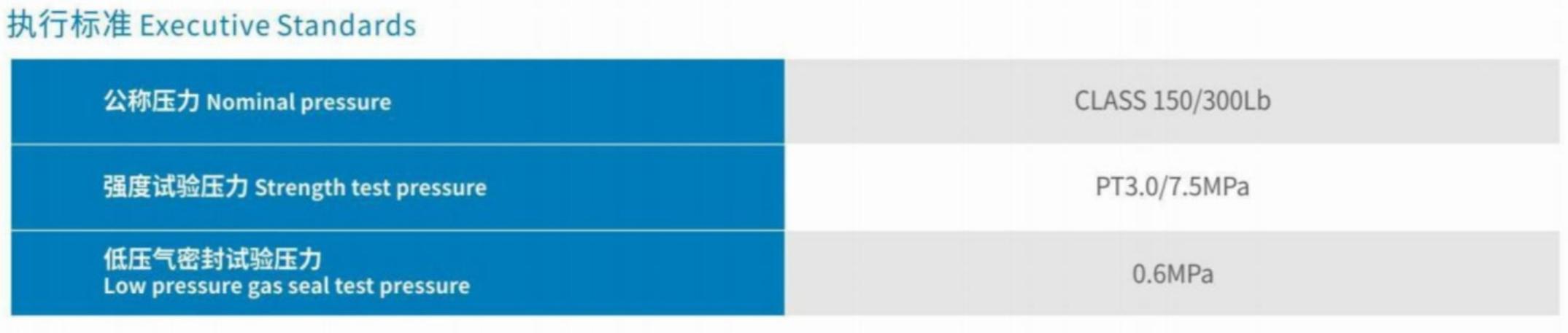

Executive Standards

Nominal pressure: CLASS 150/300Lb
Strength test pressure: PT3.0/7.5Mpa
Low pressure gas seat test pressure: 0.6MPa

Applicable Media

Water, oil and air
Nitric acid
Acetic acid

Applicable Temperature

-20~120°C

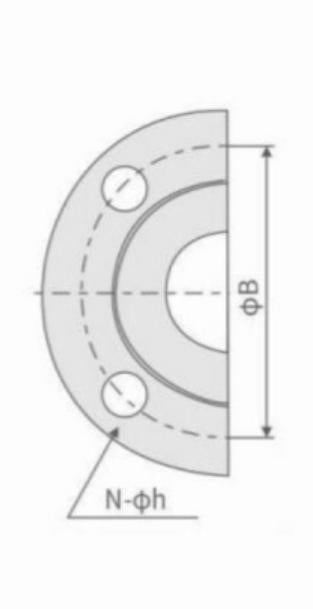

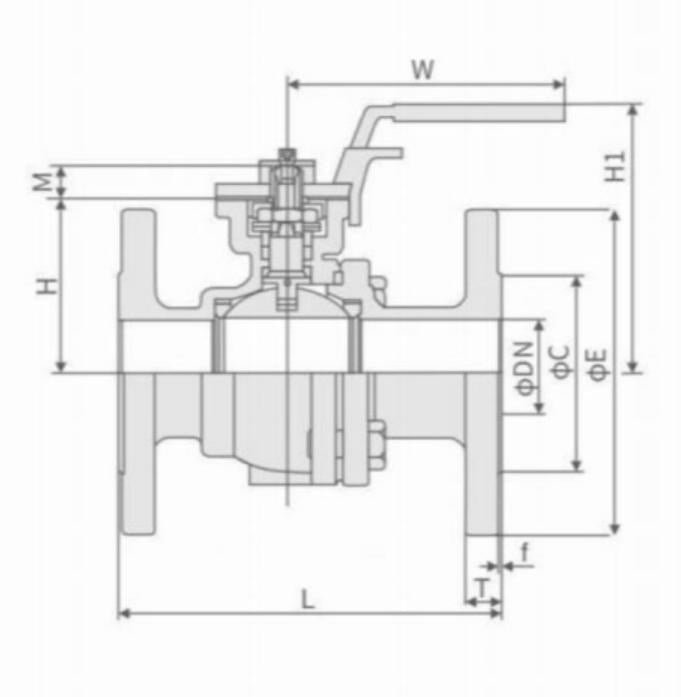

Main External and Connecting Dimensions
