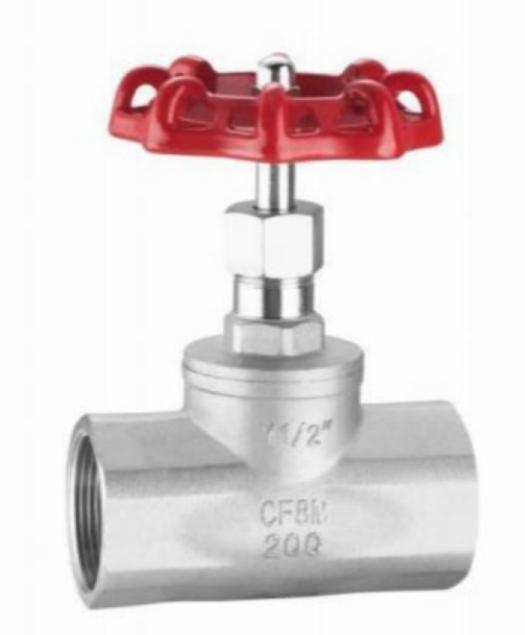

API STANDARD INTERNAL THREAD GLOBE VALVE

Main Performance Specifications

Product specification: NPS 1/2"~2"(DN15~50)
Applicable temperature: -20 ~ 120 ℃
Nominal pressure: PN 1.6MPa
Design and manufacture: GB/T 12237/ANSI B16.34
Connection size: GB/T 9113.1/ASME B16.5 CLASS150
Structural length: GB/T 12221/ASWM B16.1
Thread standard: according to BSPT/BSPP/NPT/DIN/JIS/RC/G
Inspection and test: GB/T 13927/API 598

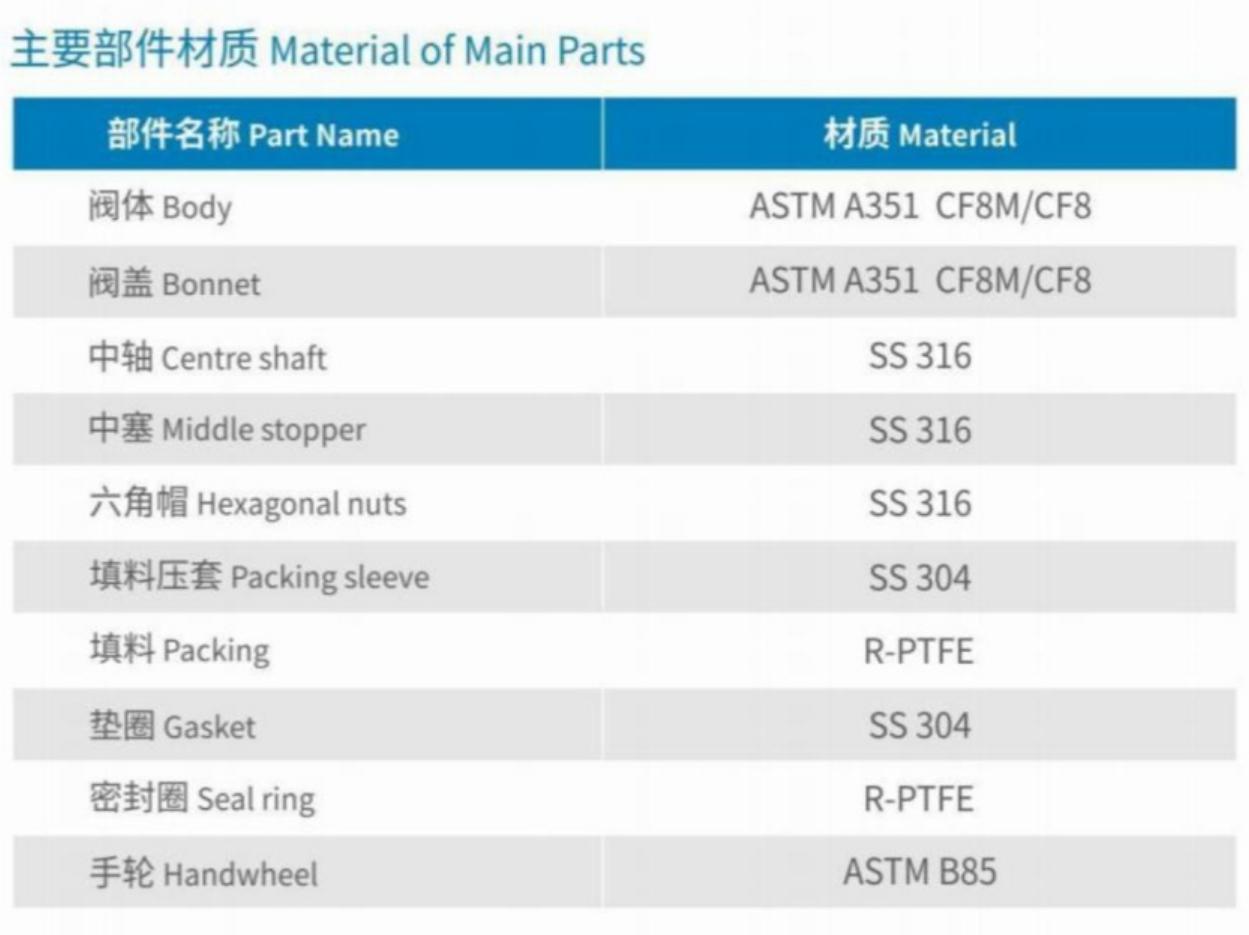

Material of Main Parts

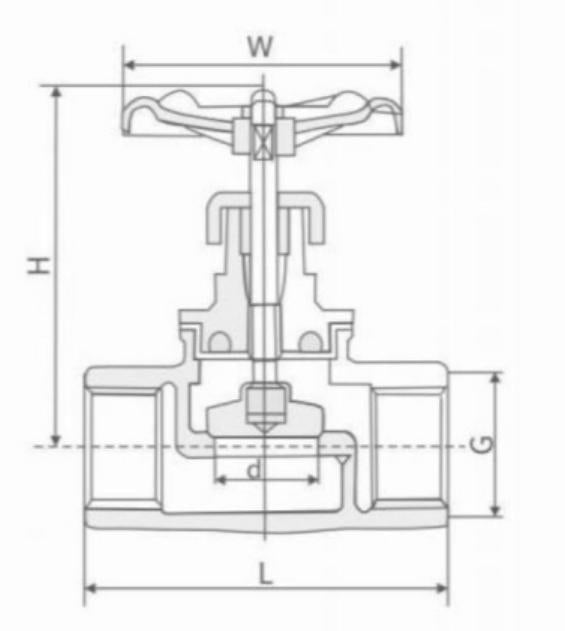

Main External and Connecting Dimensions
