How does it work

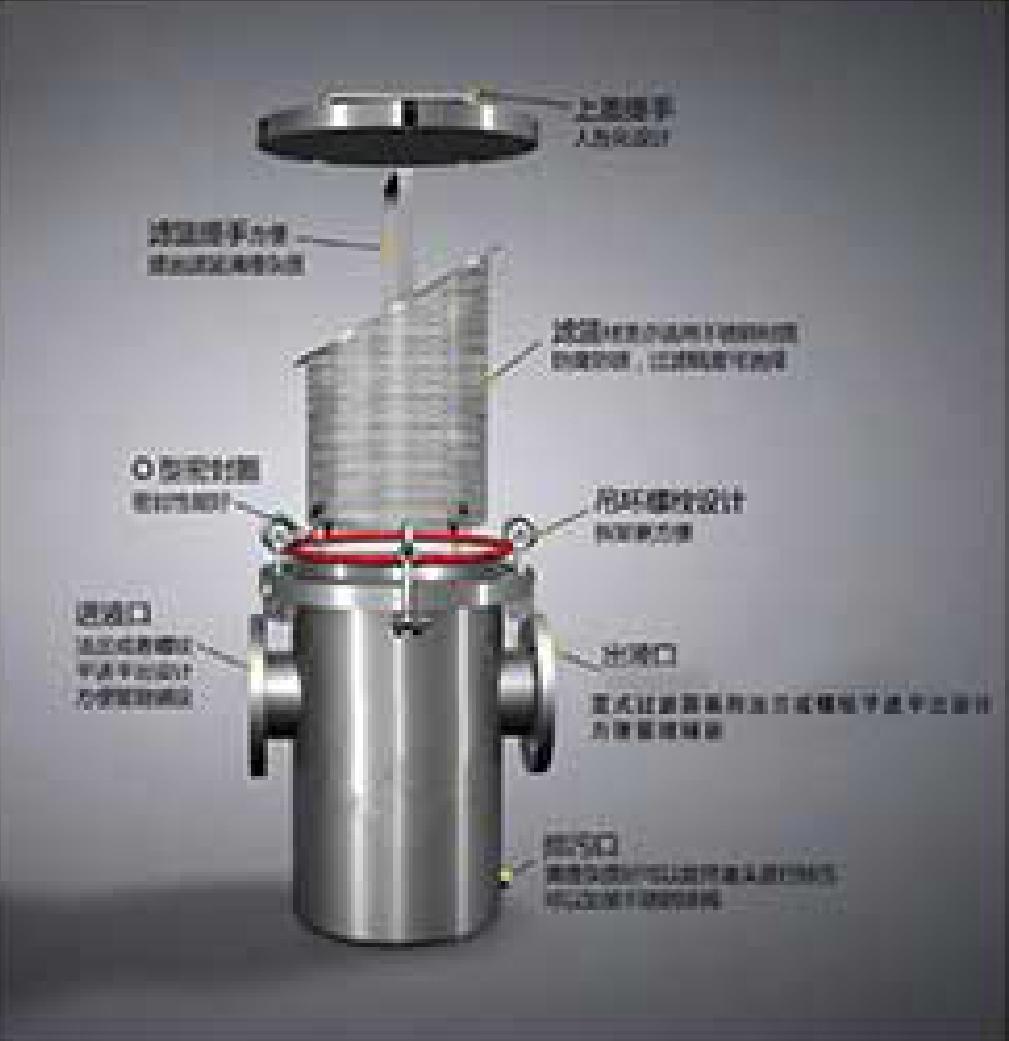

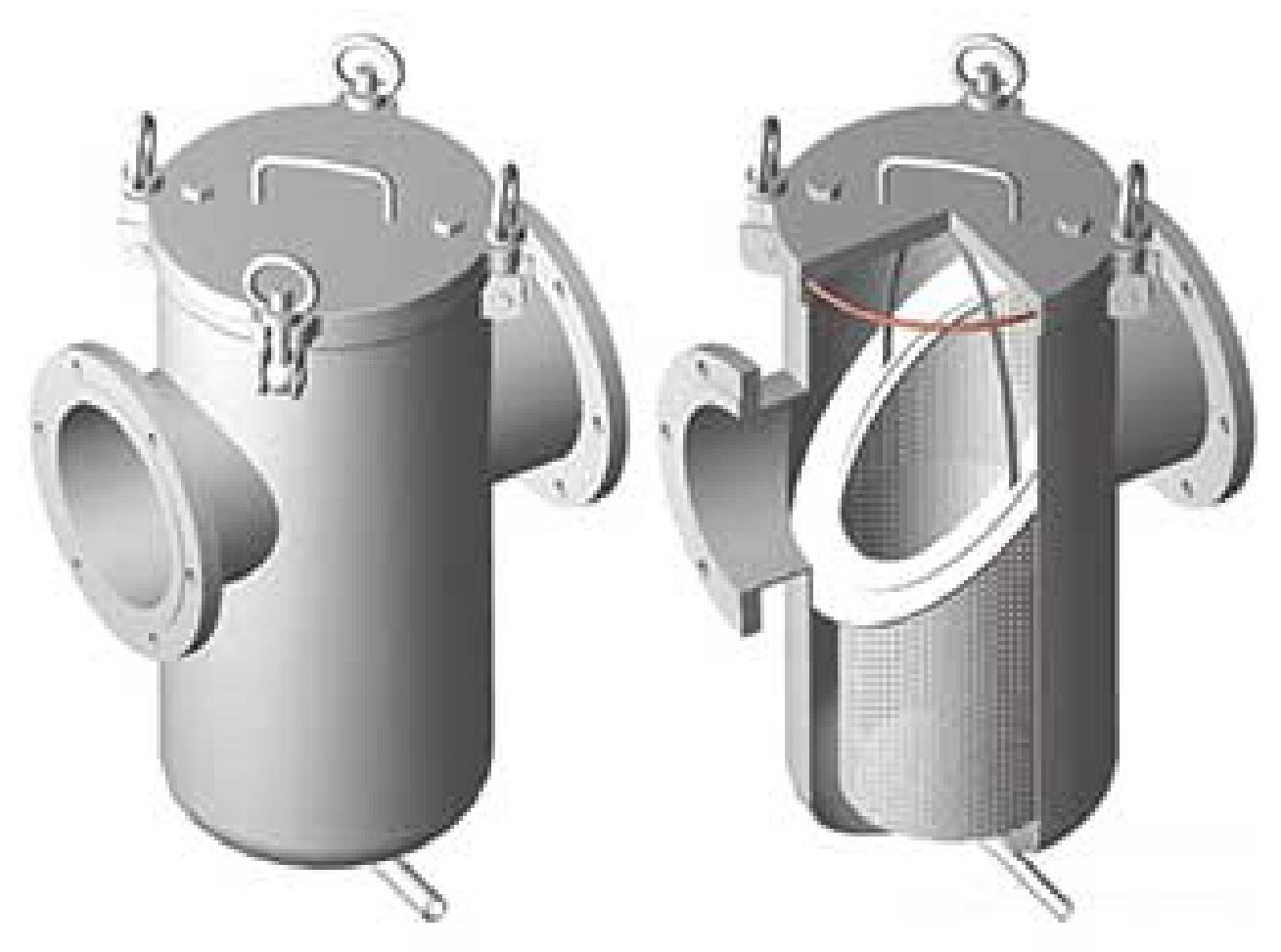

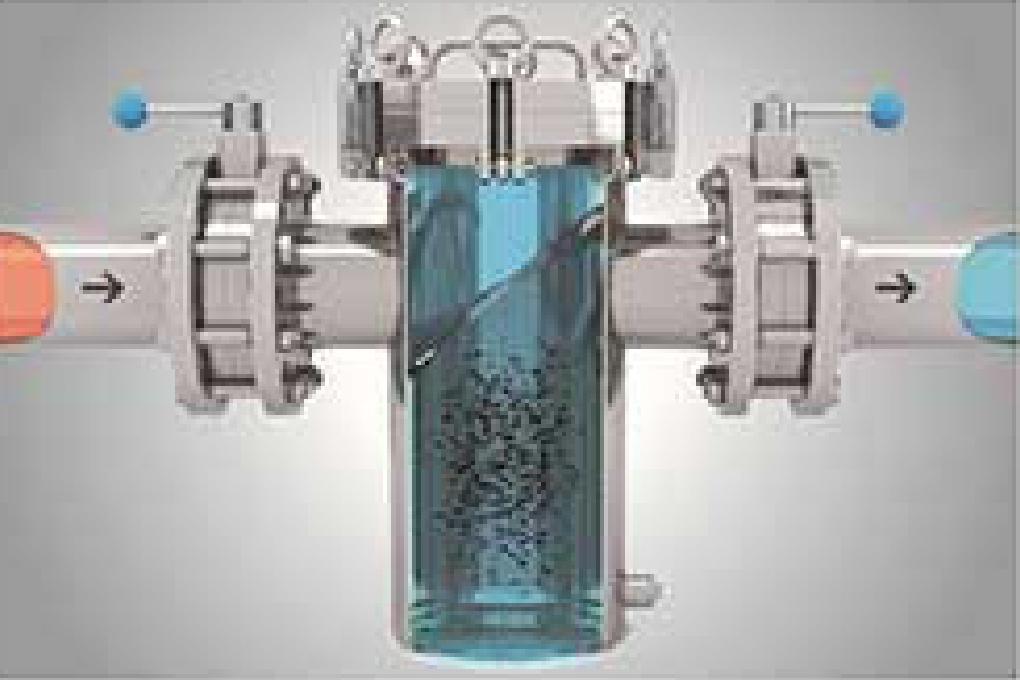

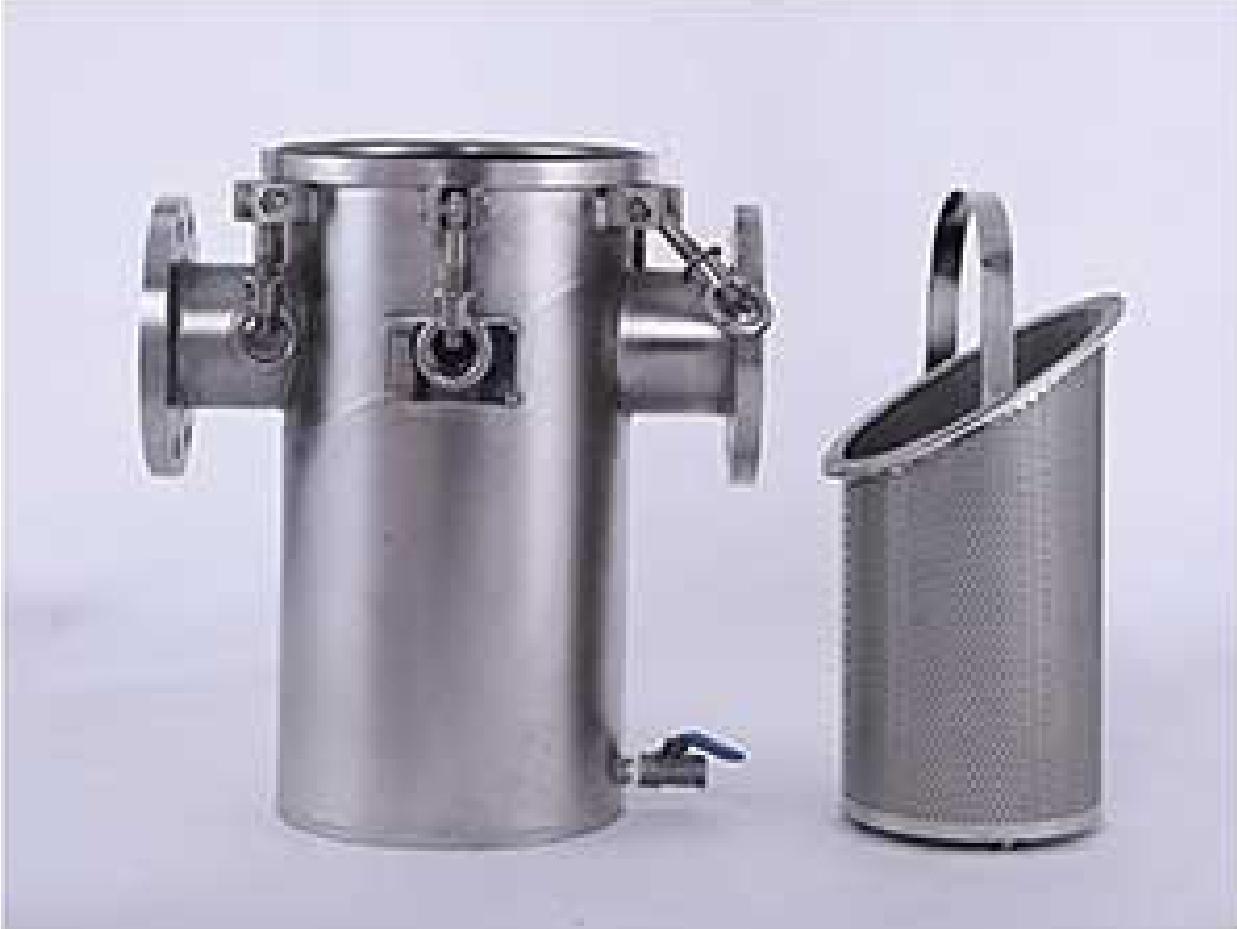

Basket filter is mainly composed of inlet and outlet pipes, filter cartridges, filter baskets, upper covers, sealing rings and fasteners. When the fluid enters the filter cartridge equipped with a filter screen of a certain specification, the solid impurity particles are blocked in the filter basket, and the clean fluid passes through the filter basket and is discharged from the filter outlet. When cleaning is needed, open the drain valve, drain the remaining liquid, remove the upper cover, take out the filter basket, clean it, then reinstall it.
Specification
Material: AISI304, AISI316L, carbon steel
Design pressure: 1.0MPa, 1.6MPa, 2.5MPa
Inlet and outlet: DN25-300 flange
Filter aperture: 10-500 mesh or higher
Sealing ring: silicone rubber, EPDM, fluorine rubber
Filter elements: metal single-layer filter basket, metal sintered filter basket, etc.
Application
Basket filter is an indispensable device on the pipeline of conveying medium. It is usually installed at the inlet of pressure reducing valve, pressure relief valve, fixed water level valve or other equipment to filter impurities in the medium to protect the valve and equipment. Basket filter is widely used in the industries of chemical, petrochemical, petroleum, paper, mining, electric power, liquefied gas, food, pharmaceuticals, water supply and drainage, municipal project, mechanical equipment, electronics, construction and other fields.
