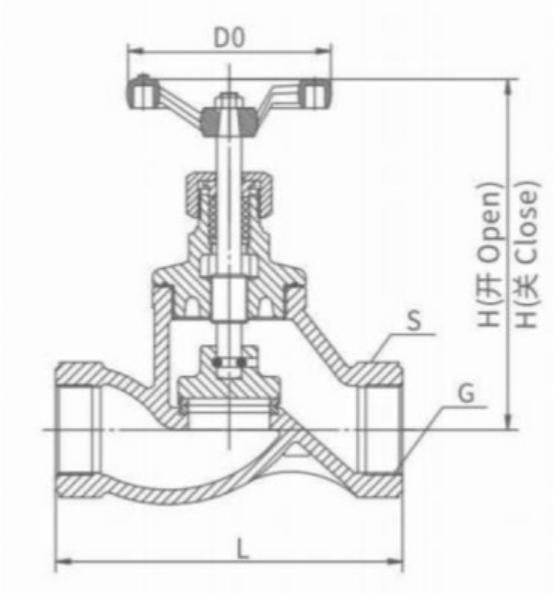

Schemc
Main Performance Specifications
Product specification: DN 15 - 65
Applicable temperature: 100 - 200 °C
Nominal pressure: PN 1.6MPa
Applicable media: water, air, gas and oil

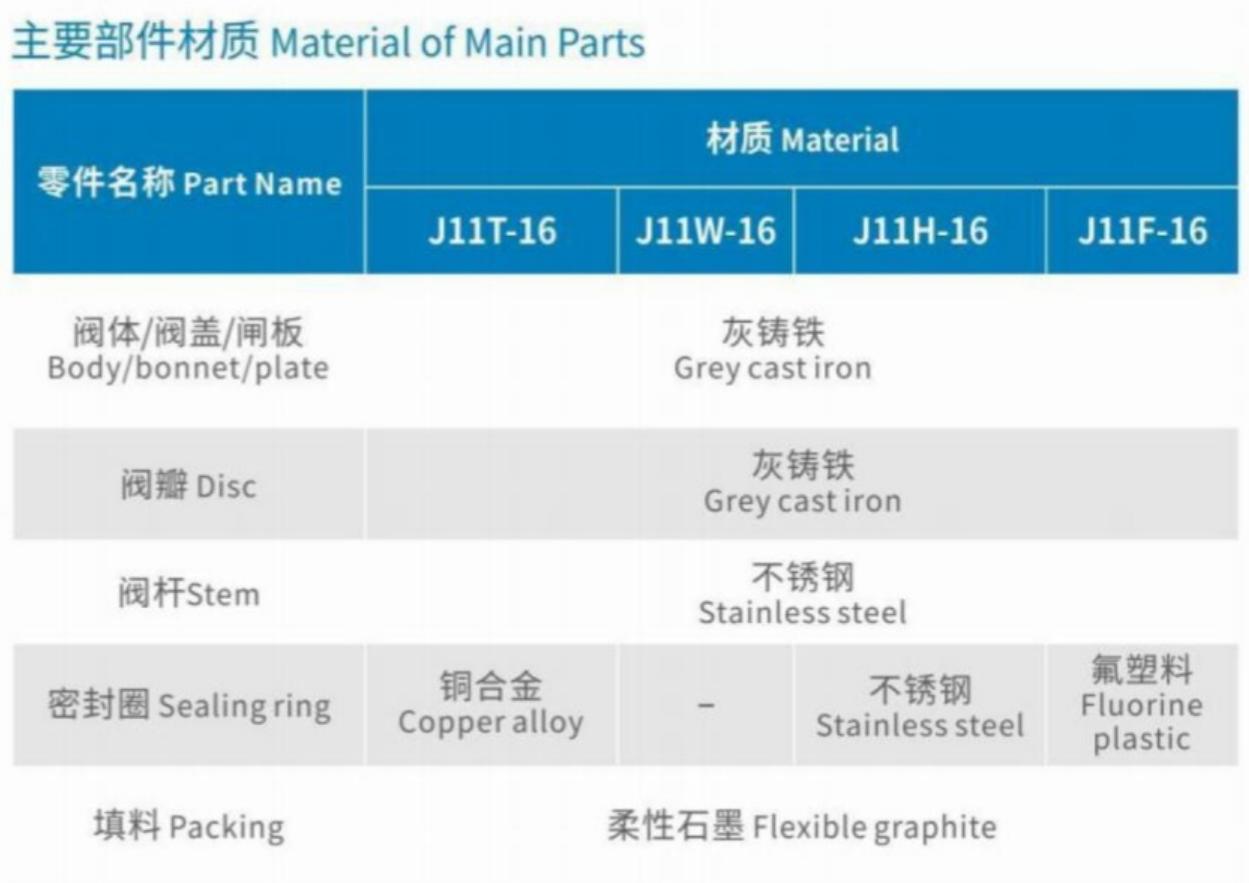

Material of Main Parts

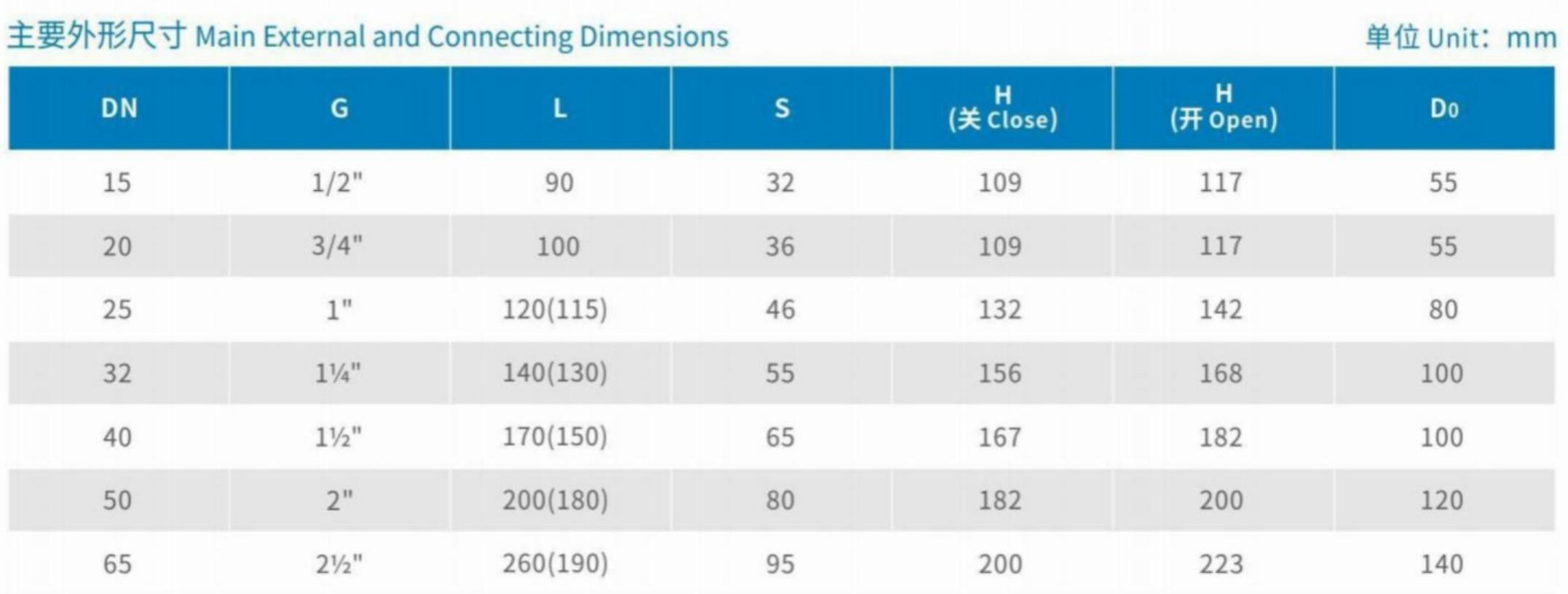

Main External and Connecting Dimensions
Note: 1. This product is in accordance with GB/T8464 "iron and copper threaded connection valves".
2. The data in brackets is N11 series of GB/T12221 "structural length of metal valves".
