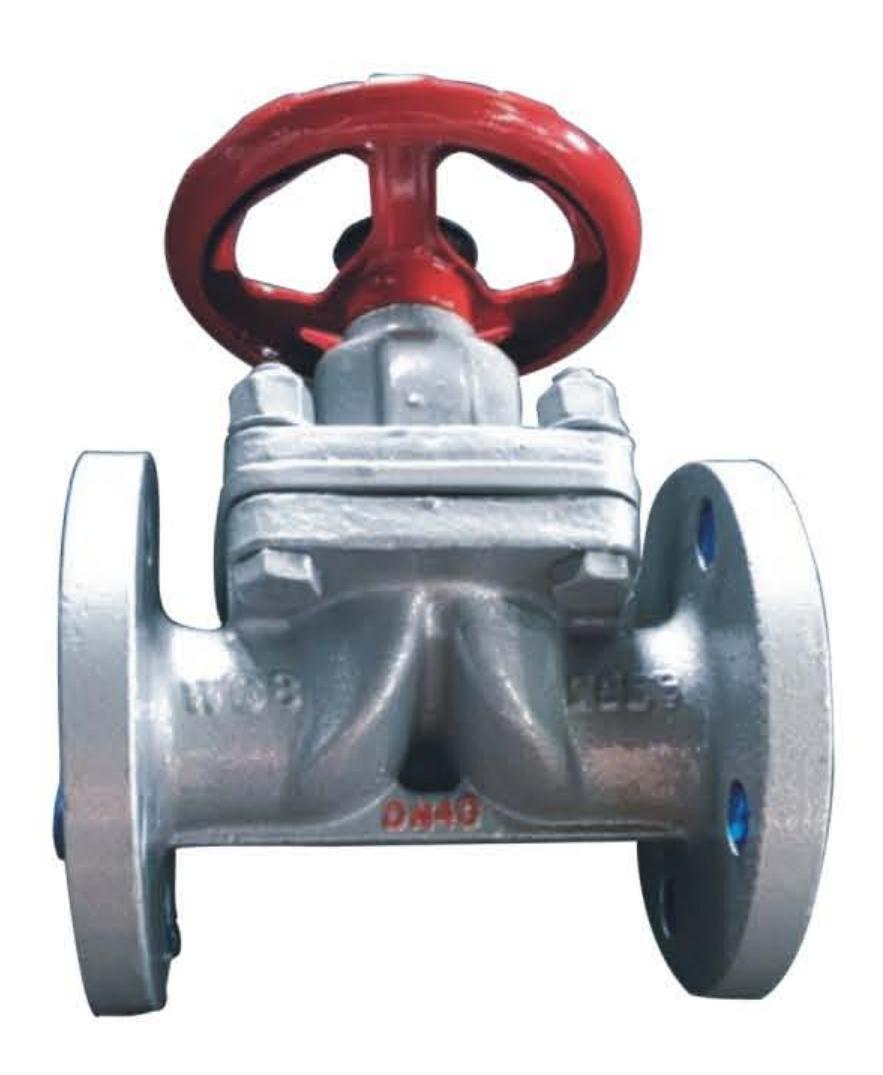

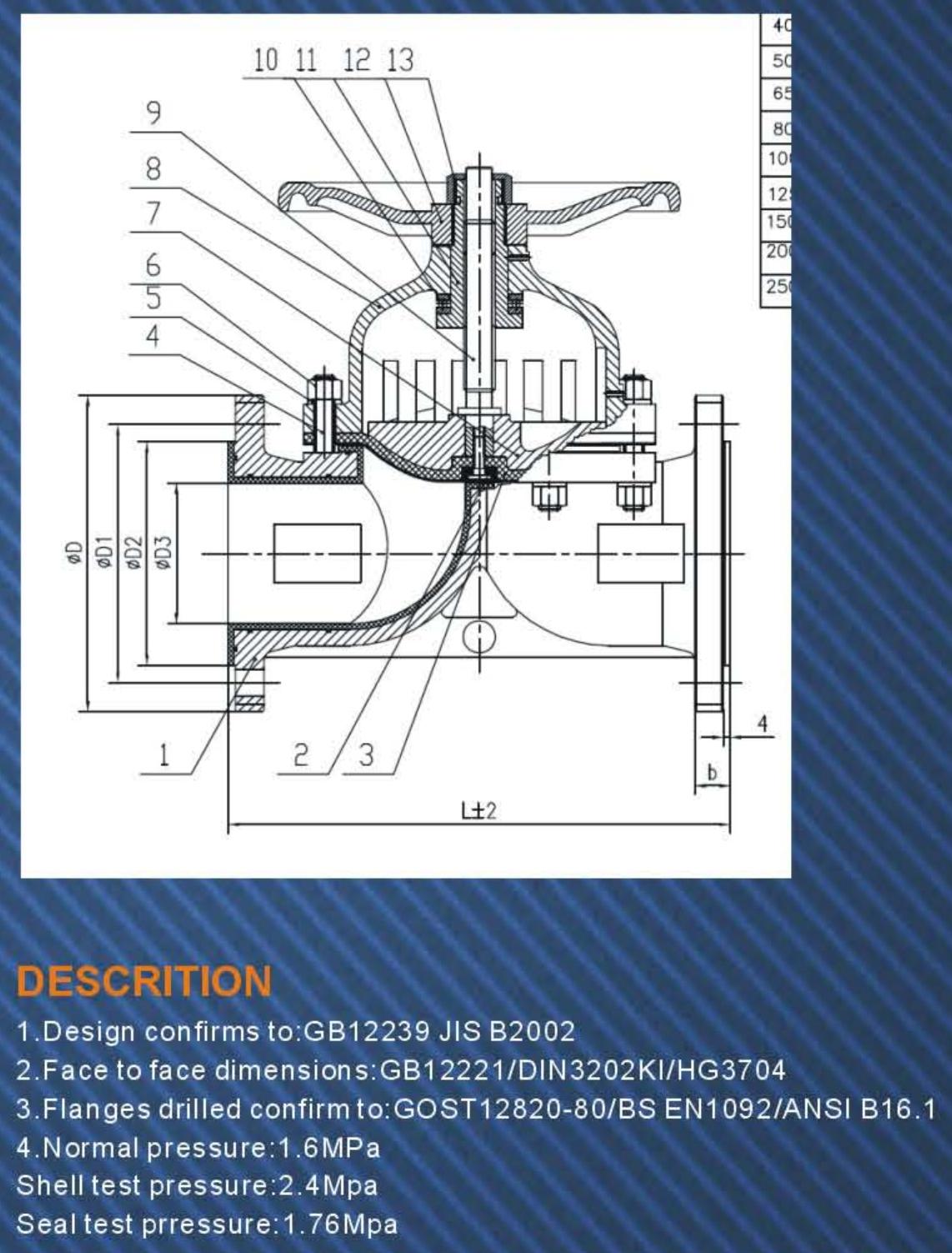

CAST STEEL DIAPHRAGM VALVE-PN16

1. Design confirms to: GB12239 JIS B2002
2. Face to face dimensions: GB12221/DIN3202K/HG3704
3. Flanges drilled confirm to: GOST12820-80/BS EN1092/ANSI B16.1
4. Normal pressure: 1.6MPa
Shell test pressure: 2.4MPa
Seal test pressure: 1.76MPa
