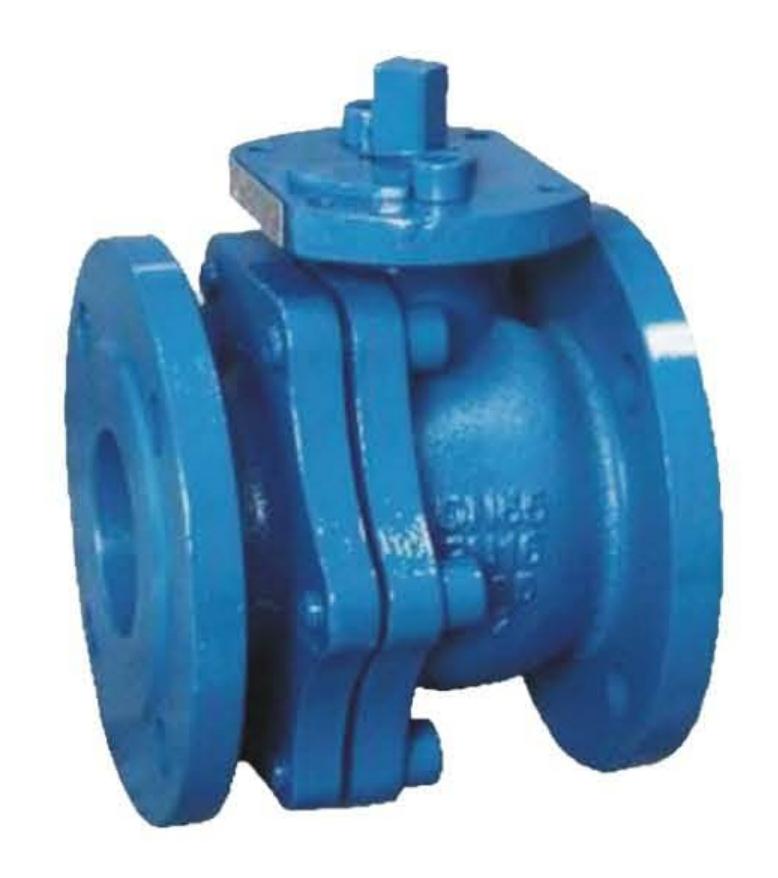

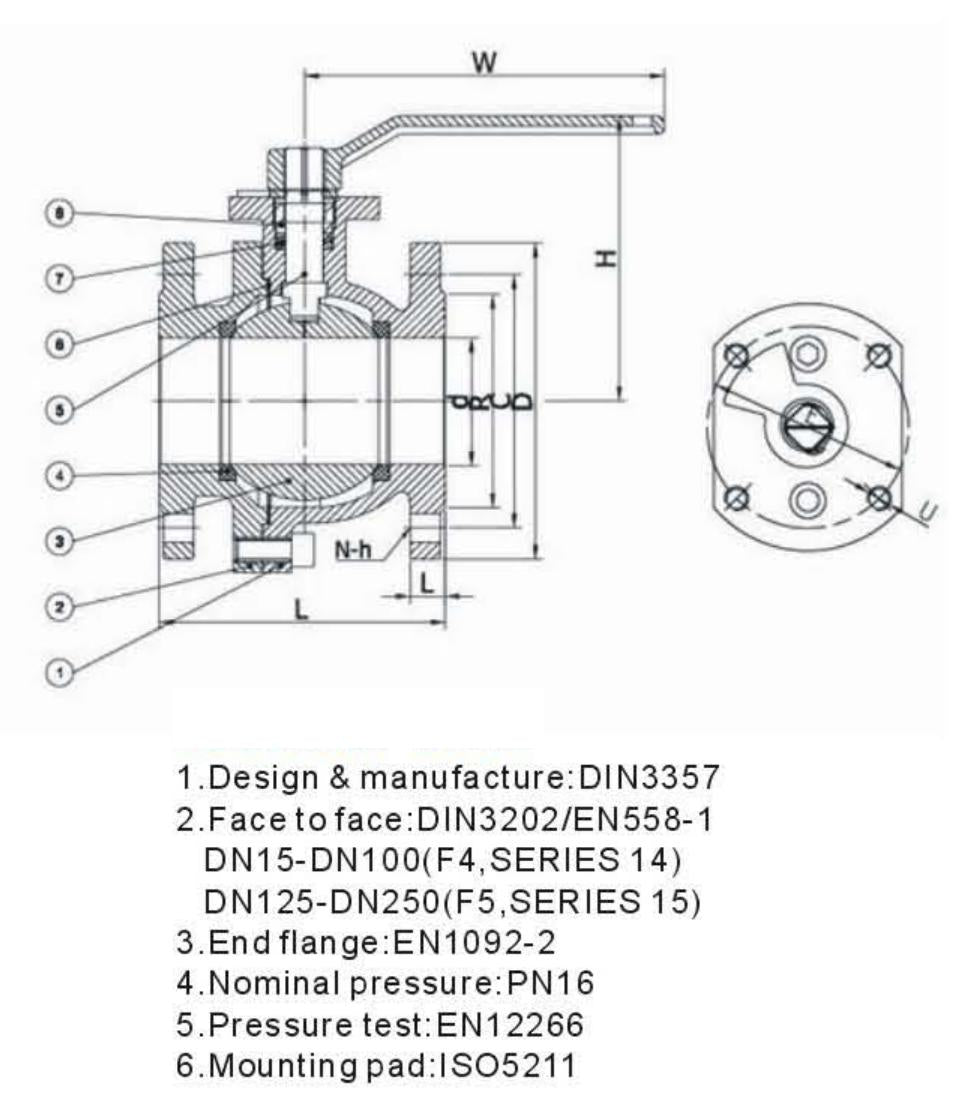

DIN BALL VALVES-PN16

1. Design & manufacture: DIN3357
2. Face to face: DIN3202/EN558-1
DN15-DN100 (F4, SERIES 14)
DN125-DN250 (F5, SERIES 15)
3. End flange: EN1092-2
4. Nominal pressure: PN16
5. Pressure test: EN12266
6. Mounting pad: ISO5211
