Schemc

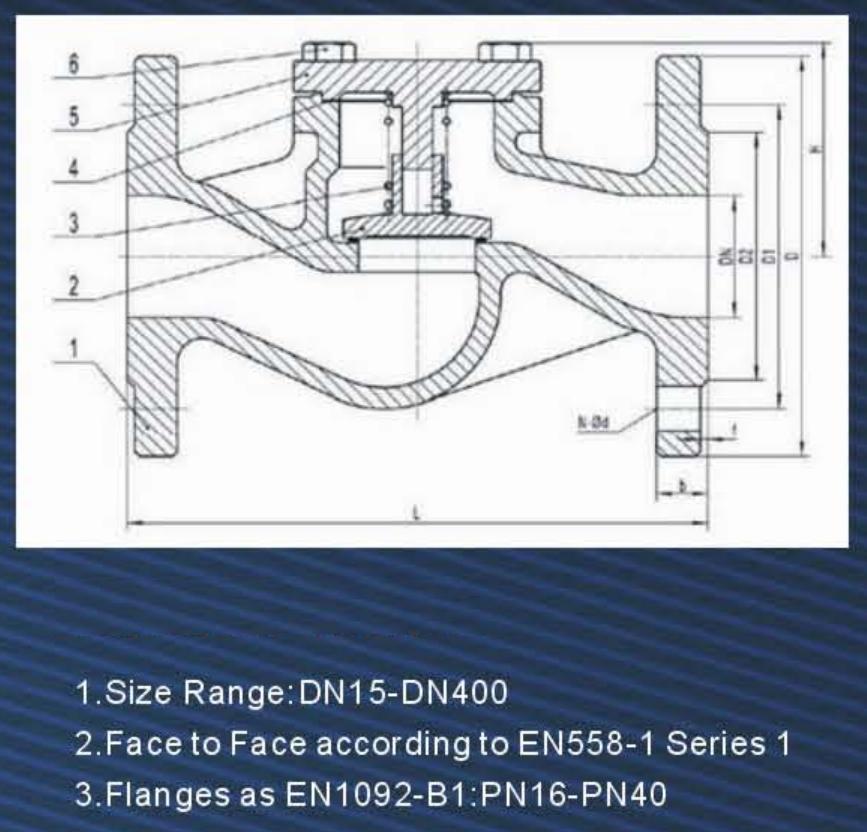

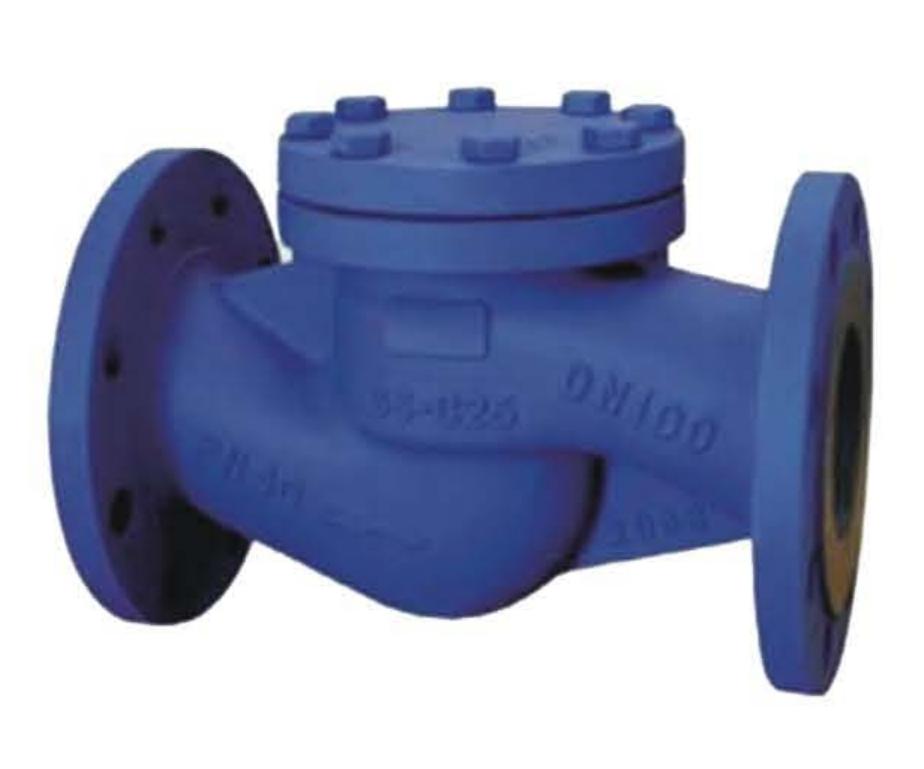

DIN CAST STEEL LIFT CHECK VALVES PN16-25-40
DIN CAST STEEL LIFT CHECK VALVES PN16-25-40
Description
Size Range: DN15-DN400
Face to Face according to EN558-1 Series 1
Flanges as EN1092-B1: PN16-PN40

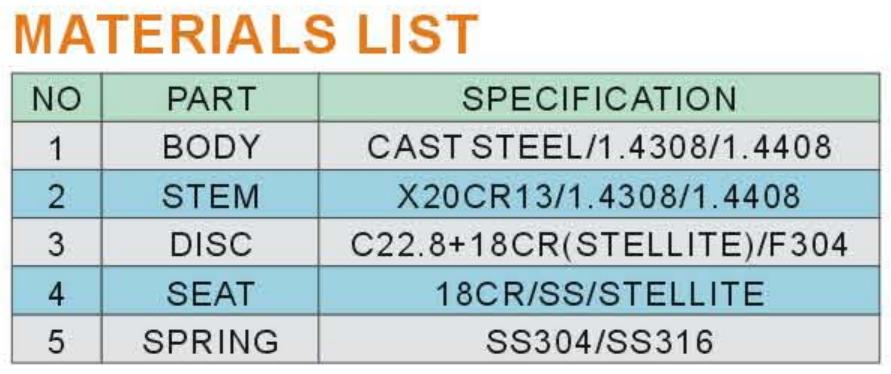

Materials List

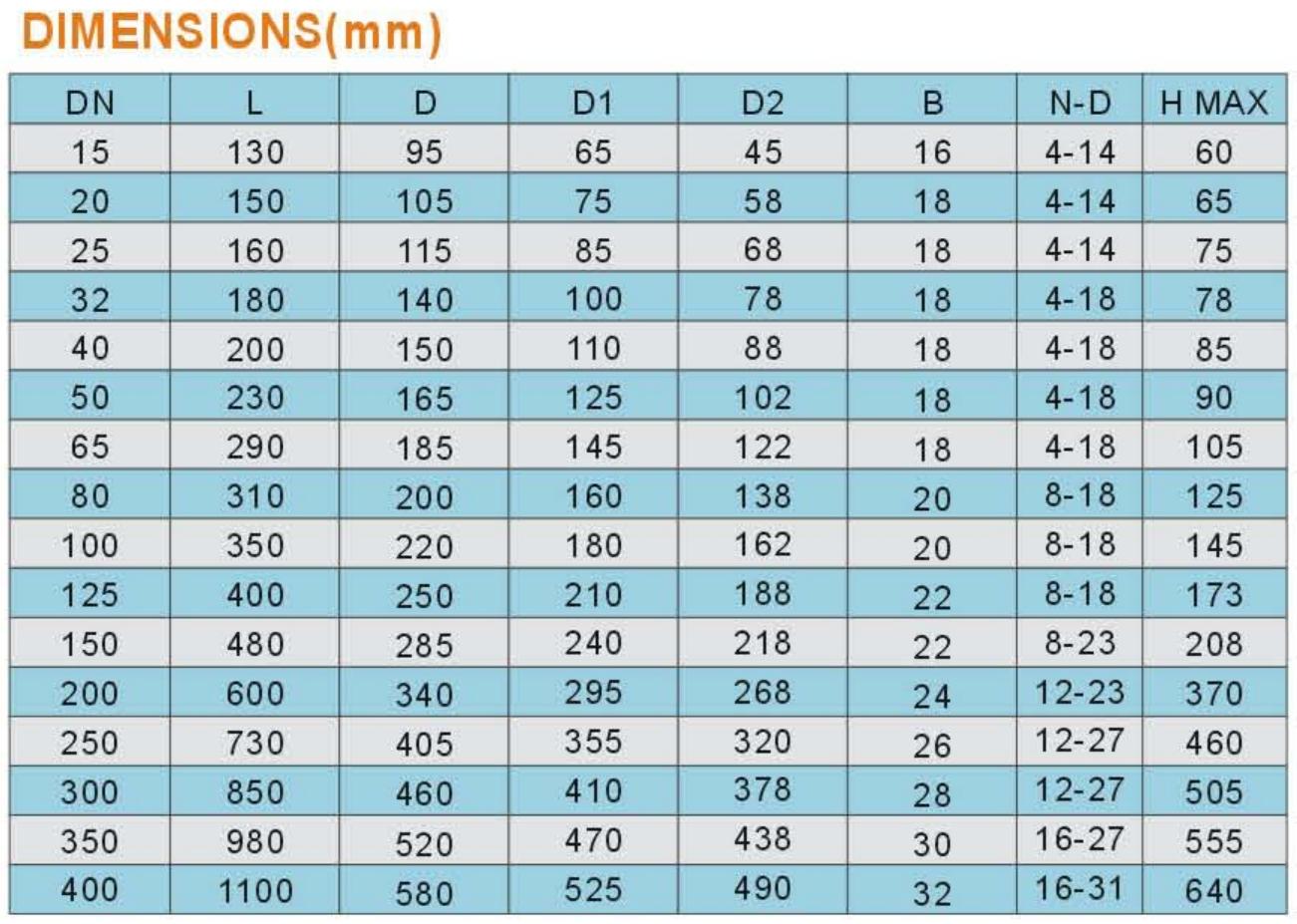

Dimensions (mm)
