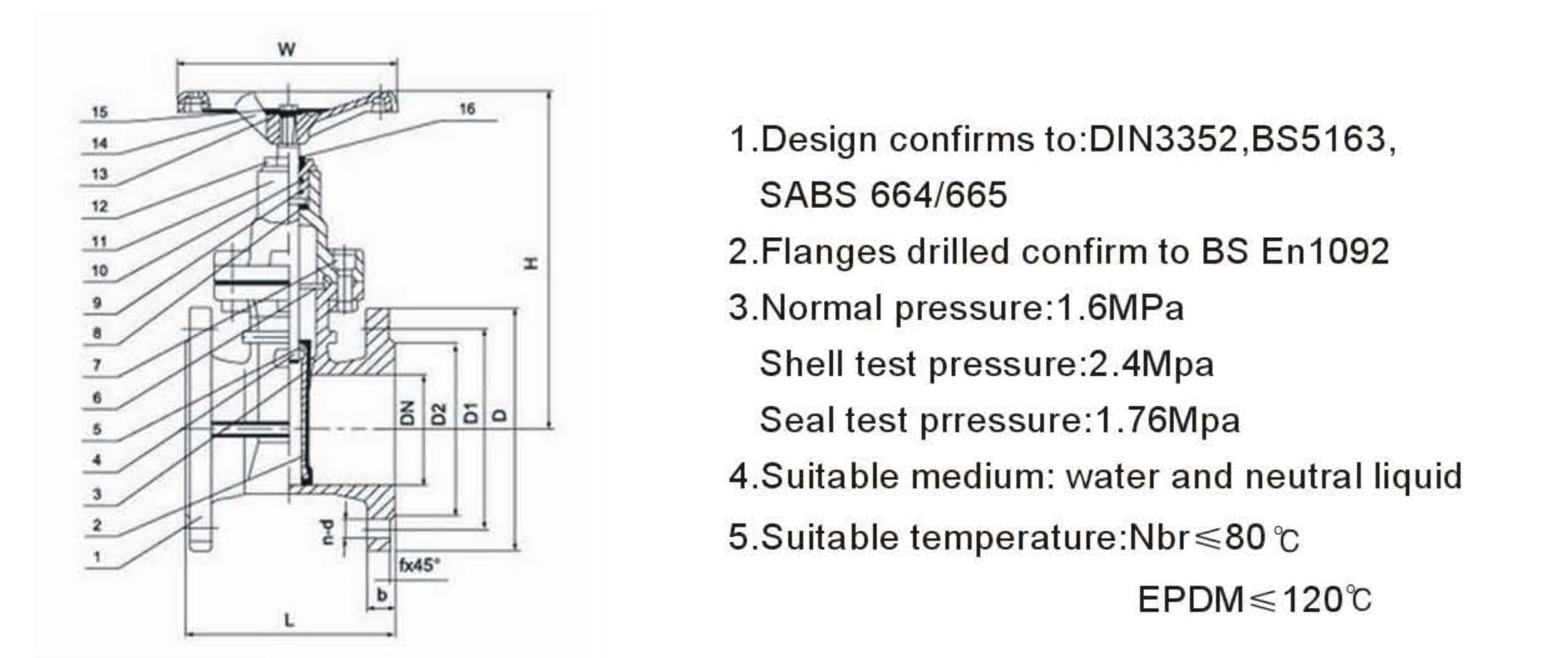

Schemc
1. Design confirms to: DIN3352, BS5163, SABS 664/665
2. Flanges drilled confirm to BS En1092
3. Normal pressure: 1.6MPa
Shell test pressure: 2.4MPa
Seal test pressure: 1.76MPa
4. Suitable medium: water and neutral liquid
5. Suitable temperature: Nbr ≤80℃, EPDM ≤120℃
