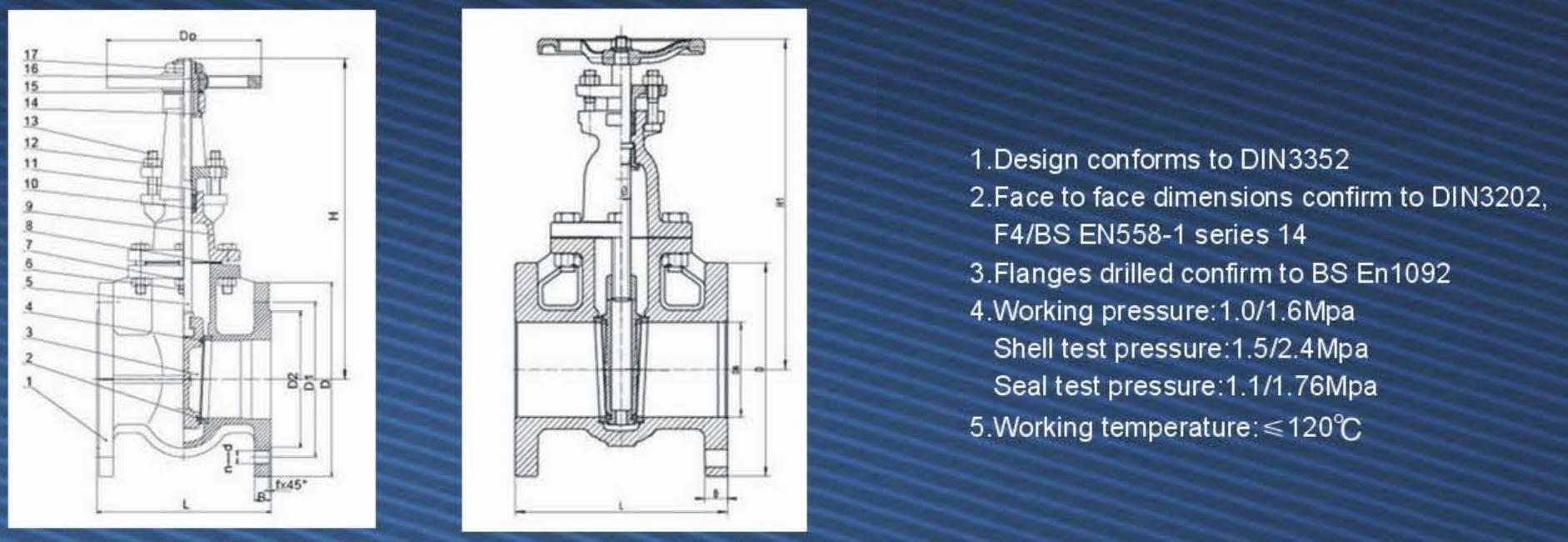

Schemc
1. Design conforms to DIN3352
2. Face to face dimensions conform to DIN3202, F4/BS EN558-1 series 14
3. Flanges drilled conform to BS En1092
4. Working pressure: 1.0/1.6Mpa
Shell test pressure: 1.5/2.4Mpa
Seal test pressure: 1.1/1.76Mpa
5. Working temperature: <120°C
