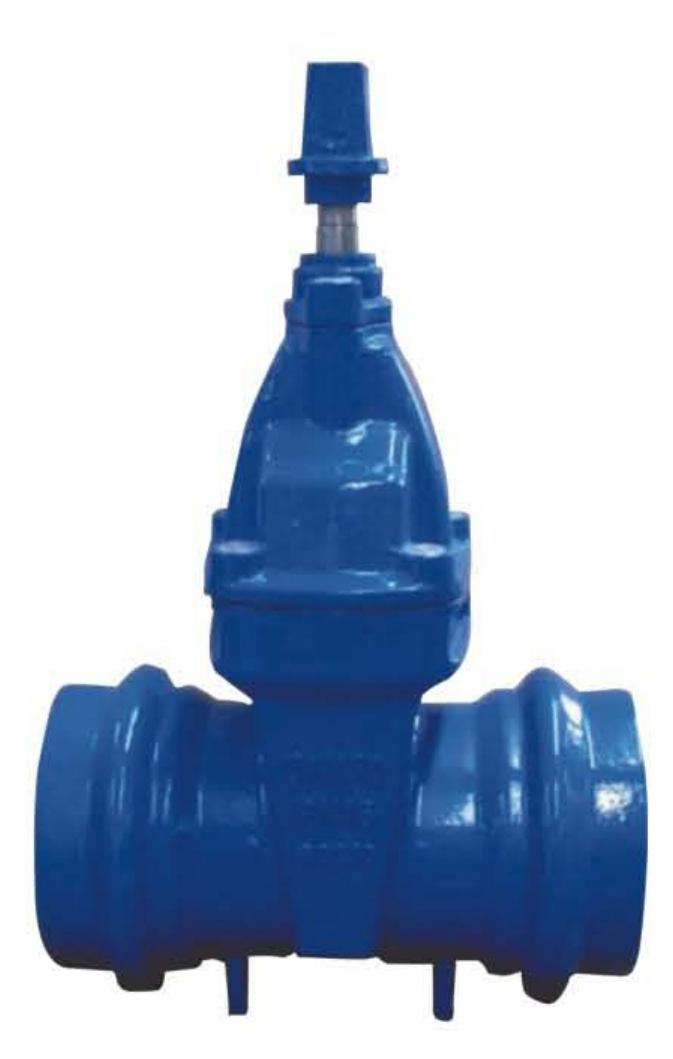

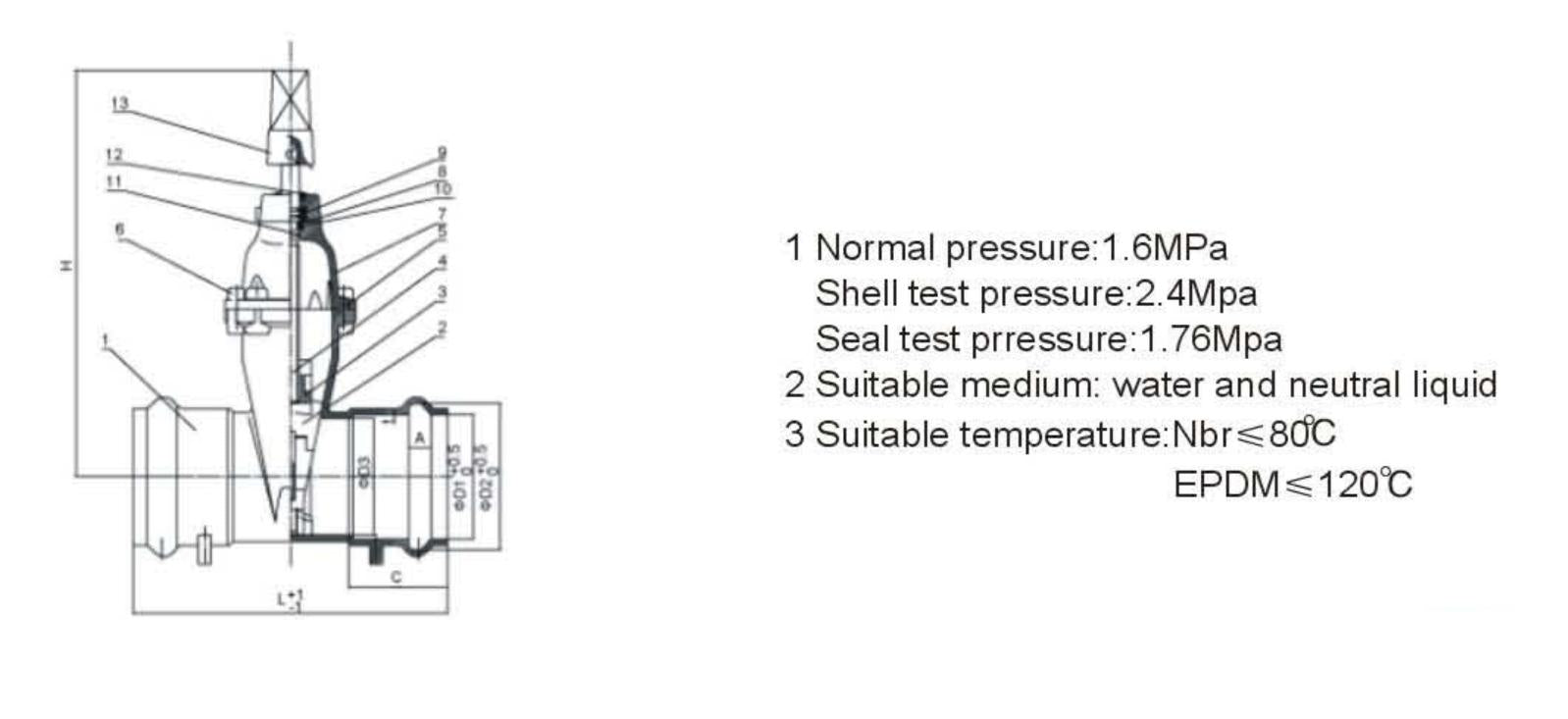

DIN3352 RESILIENT WEDGE SOCKET GATE VALVE

1 Normal pressure: 1.6MPa
Shell test pressure: 2.4MPa
Seal test pressure: 1.76MPa

2 Suitable medium: water and neutral liquid

3 Suitable temperature: NBR ≤ 80°C
EPDM ≤ 120°C
