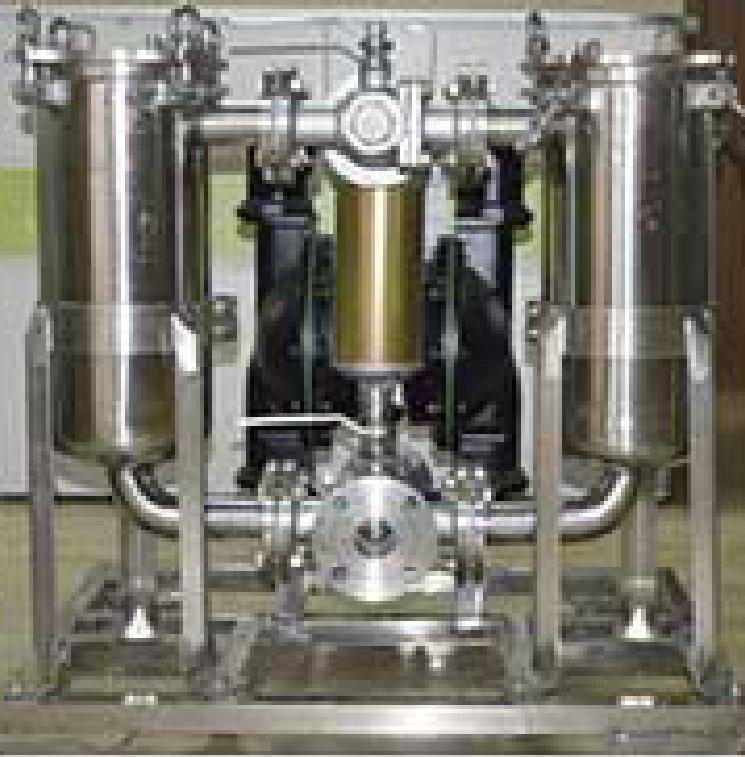

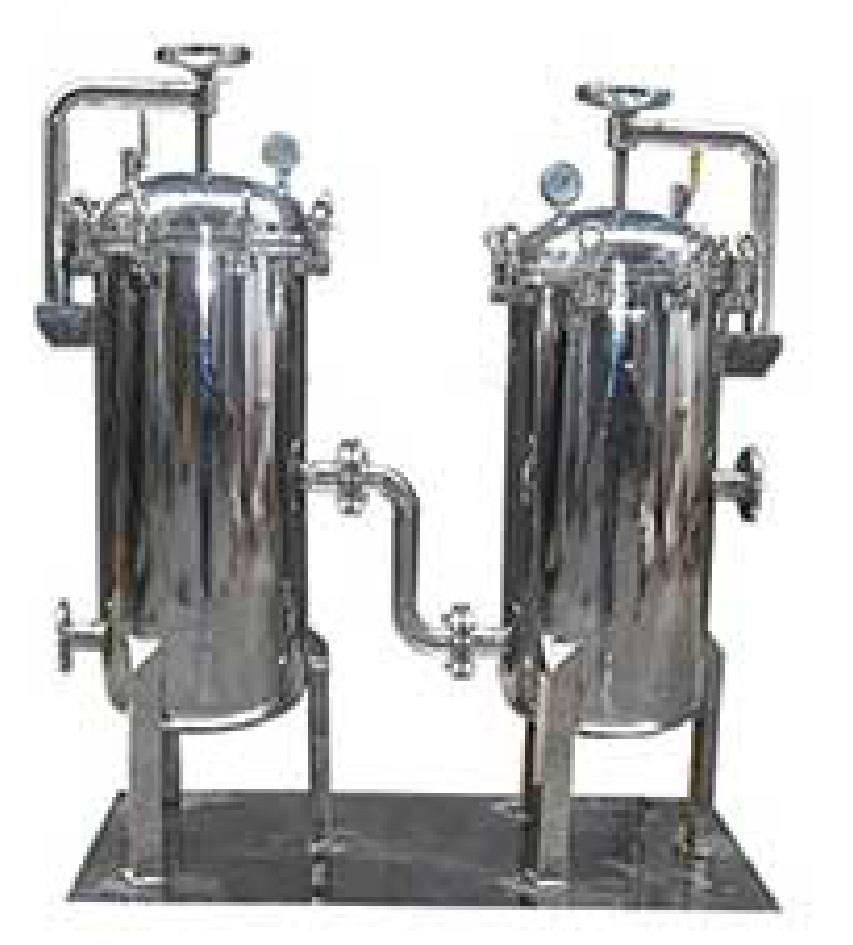

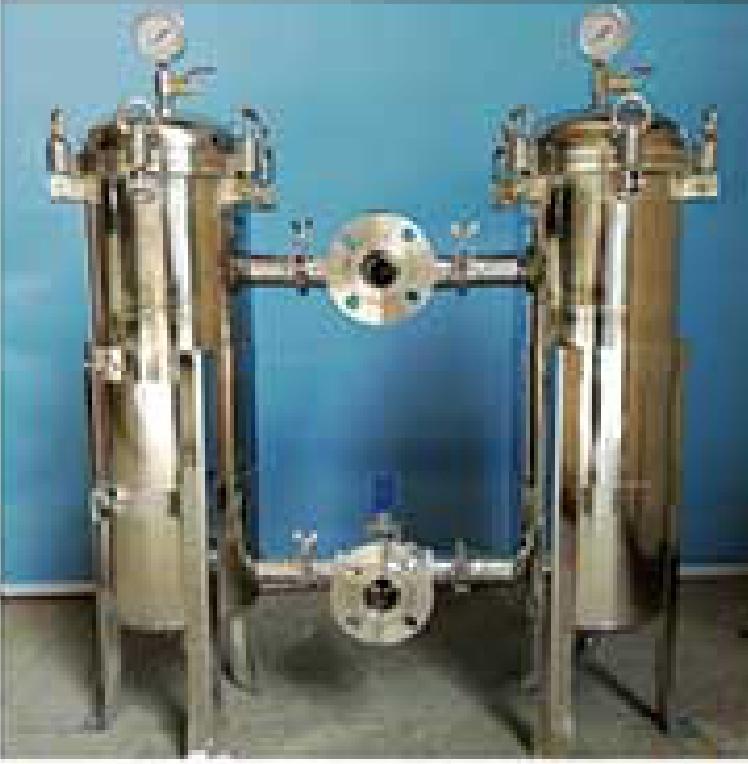

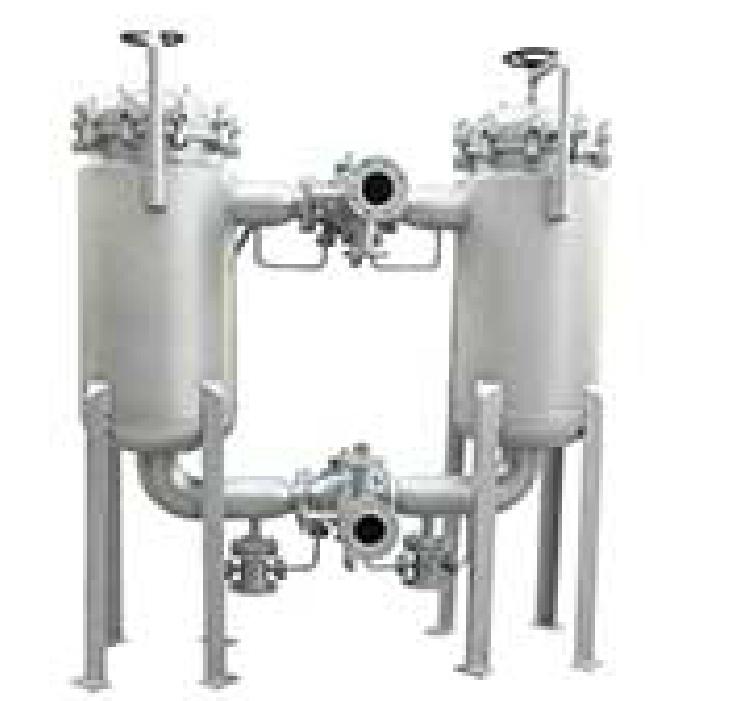

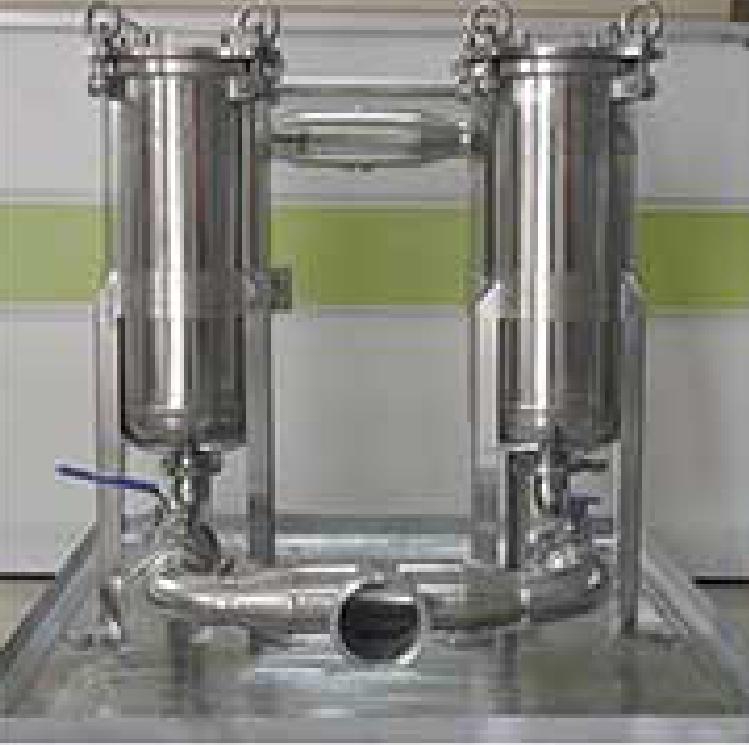

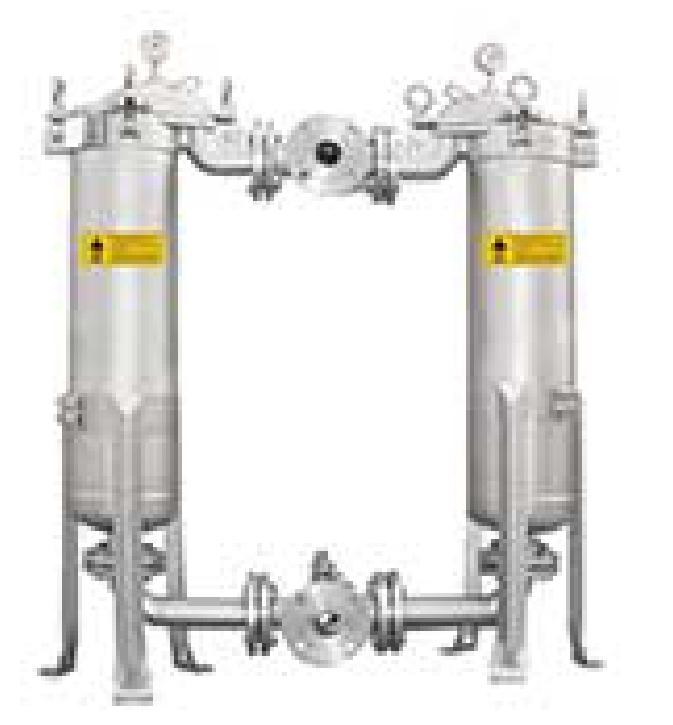

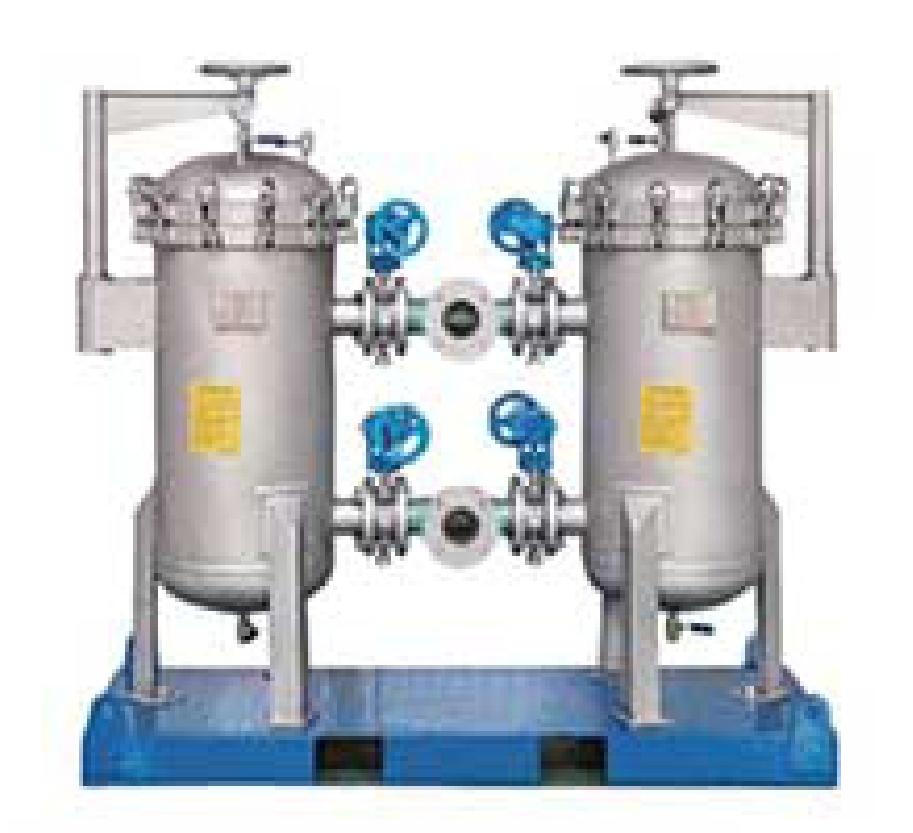

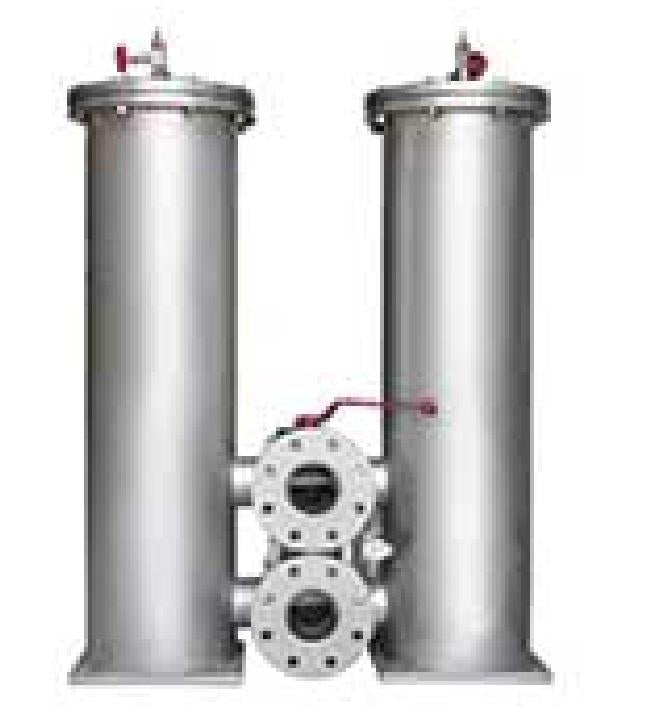

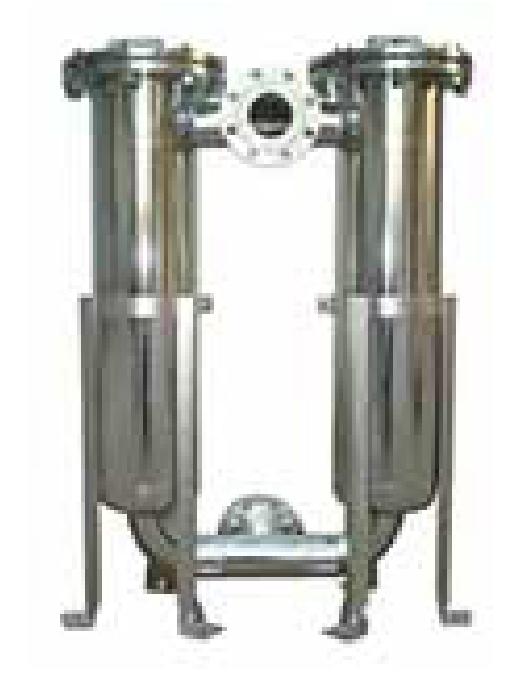

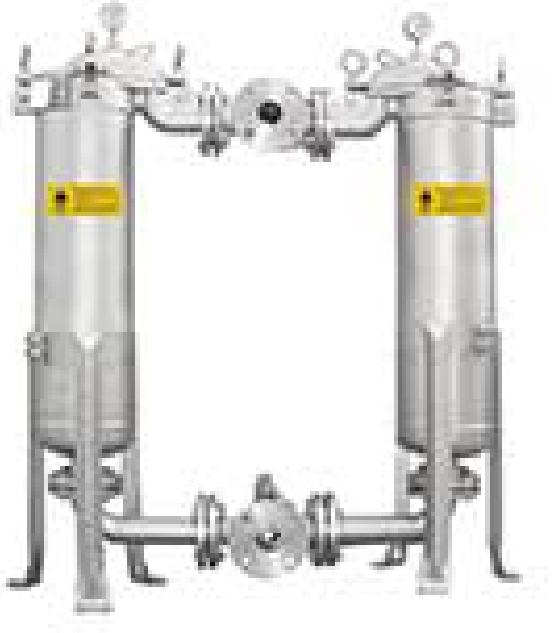

The duplex filter consists of two filter chambers. It can be connected in series or in parallel. One is coarse filtration, the other is precision filtration, or both filtration are precision or coarse filtration. Multiple combinations can be matched according to actual conditions. It is more convenient and quick to replace the filter bag, the operation cost is lower, the structure is reasonable, the filter is more stable and reliable, and it is easy to install and debug.
Duplex filter is also called duplex switching filter. It is made up of two stainless steel filters in parallel. It has many advantages such as novel and reasonable structure, good sealing, strong flow capacity, and easy operation. It is widely used and adaptable. Strong multi-purpose filtering equipment. Two three-way ball valves are used to assemble two single-tube filters on a machine base. There is no need to stop the machine when cleaning the filters to ensure continuous operation.
The reversing is light, the filtering area is large, the service life is long, the pressure loss is small, the filtering accuracy is strictly determined, the operation is simple, the imported pressure difference signal device, the structure is compact, and the space is saved.
Equipment material: SS304, SS316L, carbon steel
Design pressure: 0.6MPa
Sealing ring material: silicone rubber, EPDM rubber, fluorine rubber, PTFE coated fluorine rubber
Remark:
(1) The insulation jacket design can be used to maintain or increase the temperature of the liquid, prevent the liquid from solidifying, and meet the temperature needs of the production line;
(2) Two filters can be connected in parallel, and the modular combination can achieve a high flow rate or continuous production.
The duplex filter adopts advanced equipment technology in the international water treatment industry, and is committed to the design, manufacture, equipment, commissioning and service of water supply systems, circulating water systems, sewage systems and reclaimed water systems. It can be used for water filtration in various industries such as industry, agriculture, municipal power, electronics, medicine, food, printing and dyeing, construction, steel, metallurgy, paper-making and so on.
