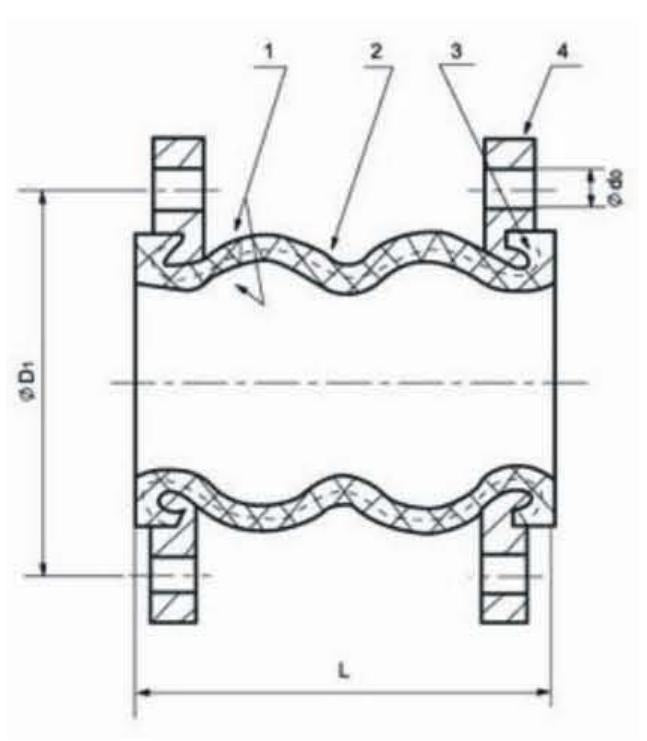

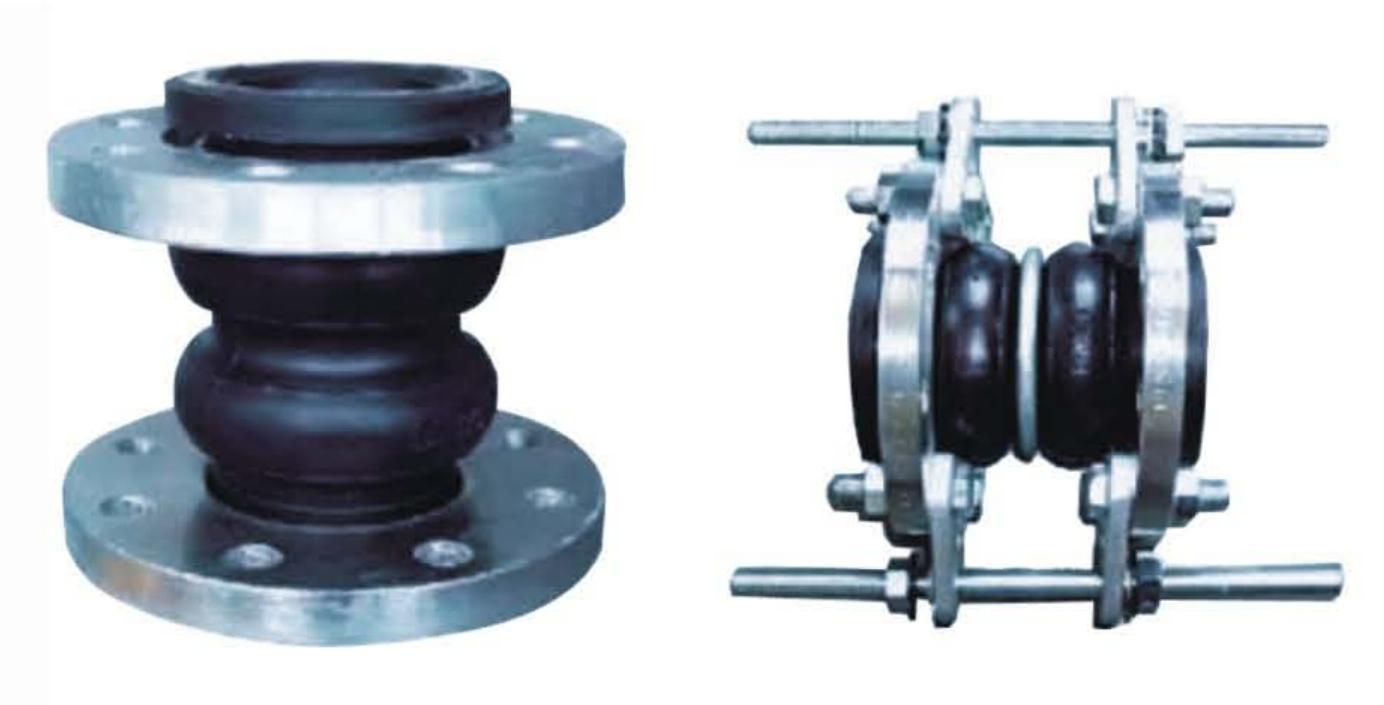

The Double Sphere Flanged Rubber Expansion Joint is designed with a main body made of polarized rubber, a lining of nylon cord fabric, a frame of hard steel wire, and forged steel flanges.
Technical Condition:
- Model: KST-F(I), KST-F(II), KST-F(III)
- Working Pressure (Mpa): 1.6(16), 1.0(10), 0.6(6)
- Bursting Pressure (Mpa): 4.8(48), 3.0(30), 1.8(18)
- Vacuity (Kpa): 86.7(650), 53.5(400), 300
- Applicable Temperature: -10 to +80°C
- Applicable Media: Air, Compressed Air, Water, Sea Water, Weak Acid, etc.
