Main Performance Specifications
- Product specification: NPS 1/2"~2"
- Applicable temperature: -20 ~ 120 °C
- Nominal pressure: PN 1.6MPa
- Design and manufacture: GB/T 12237/ANSI B16.34
- Connection size: GB/T 9113.1/ASME B16.5 CLASS150

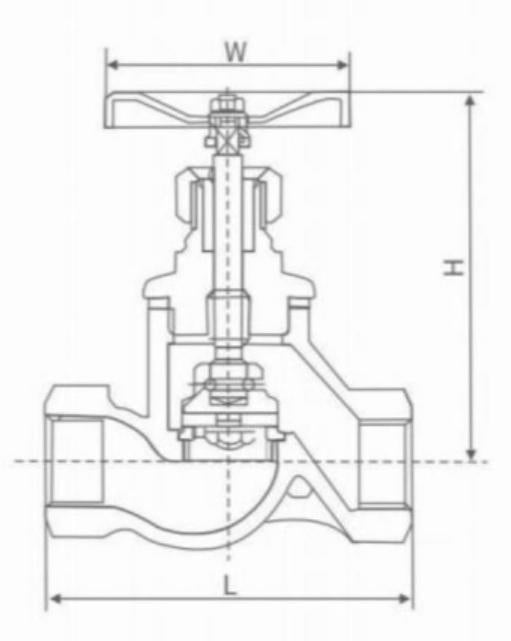

- Structural length: GB/T 12221/ASME B16.1
- Thread standard: according to BSPT/BSP/NPT/DIN/JIS/RC/G
- Inspection and test: GB/T 13927/API 598
Material of Main Parts
- Body: CF8M
- Stem: CF8M
- Bonnet: CF8M
- Metal gasket: SS304
- Packing: PTFE
- Packing sleeve: SS316, 304
- Packing gland nut: SS316, 304
- Elastic washer: SS316, 304
- Nut: SS316, 304
