Design Standard: ASME B16.34, API 608, ISO 17292
End To End: ASME B16.10
Connection: ASME B16.5
Design Feature: metal seat, Double sealing, Split body & trunnion mounted type, integral stem, Double block & bleed, Stable performance, Long life time, hard face of seat and ball surface, abrasion assistant, corrosion resistant, available for high pressure & high temperature working condition.
Material: Carbon Steel, Low-temp. Carbon steel, Austenitic stainless steel & Other material as client required.

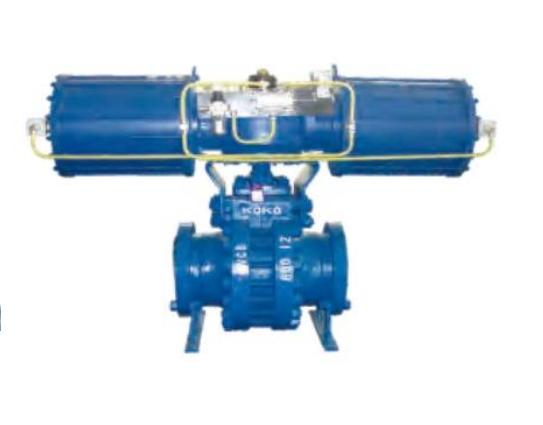

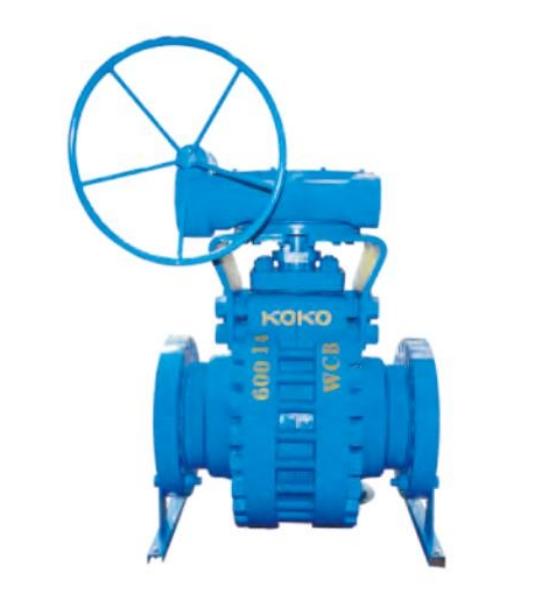

Operation: Gearbox, Pneumatic, Electric
Test and Inspection Standard: API 598
Normal Size: 4” – 20”, DN100-DN500
Pressure Rating: Class150LB-900LB, PN10-PN160
