Applicability: High pressure forged ball valves are applicable for pipes of CLASS600Lb, 800Lb, 900Lb and 1500Lb, working temperature -46°C~180°C (soft seal ring as PTFE, MOLON or PEEK seal ring) or -46°C~425°C (hard seal face), used to cut off or get through the medium in pipeline. Besides, we design and manufacture valves responding to users' actual working conditions and special requests. By using different materials, they may be applicable for water, steam, oil, nitric acid, acetic acid and etc.
Structural Features:

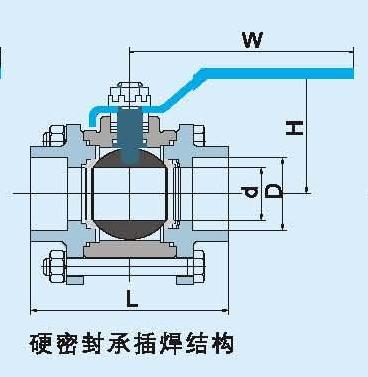

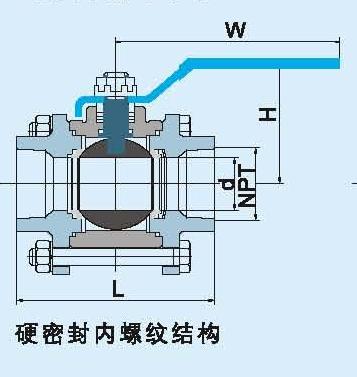

- High pressure forged ball valve is of three-piece structure.
- Body and bonnet are processed with die-forging technology for reasonable structure and elegant outline.

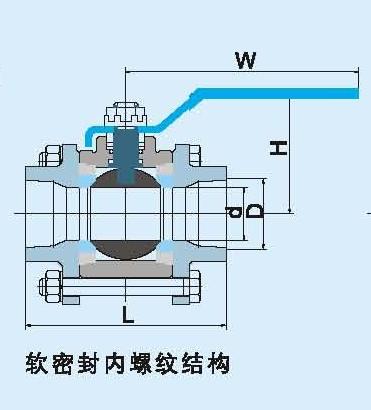

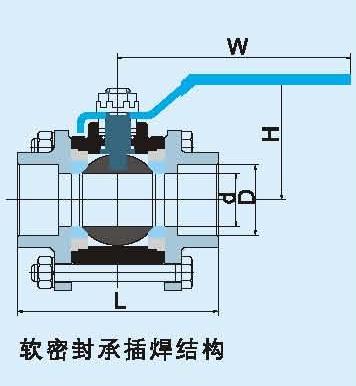

- Resilient seal structure of valve seat for dependable seal and light open-close moment.
- Bottom-mounted anti-blowout and antistatic structure of valve stem.
- 90° on-off limit mechanism and locking device may be configured to avoid misoperation if requested by users.
- ISO5211 connection dimensions provided at the top of valve to be connected to pneumatic or electric device by removing the handle.
