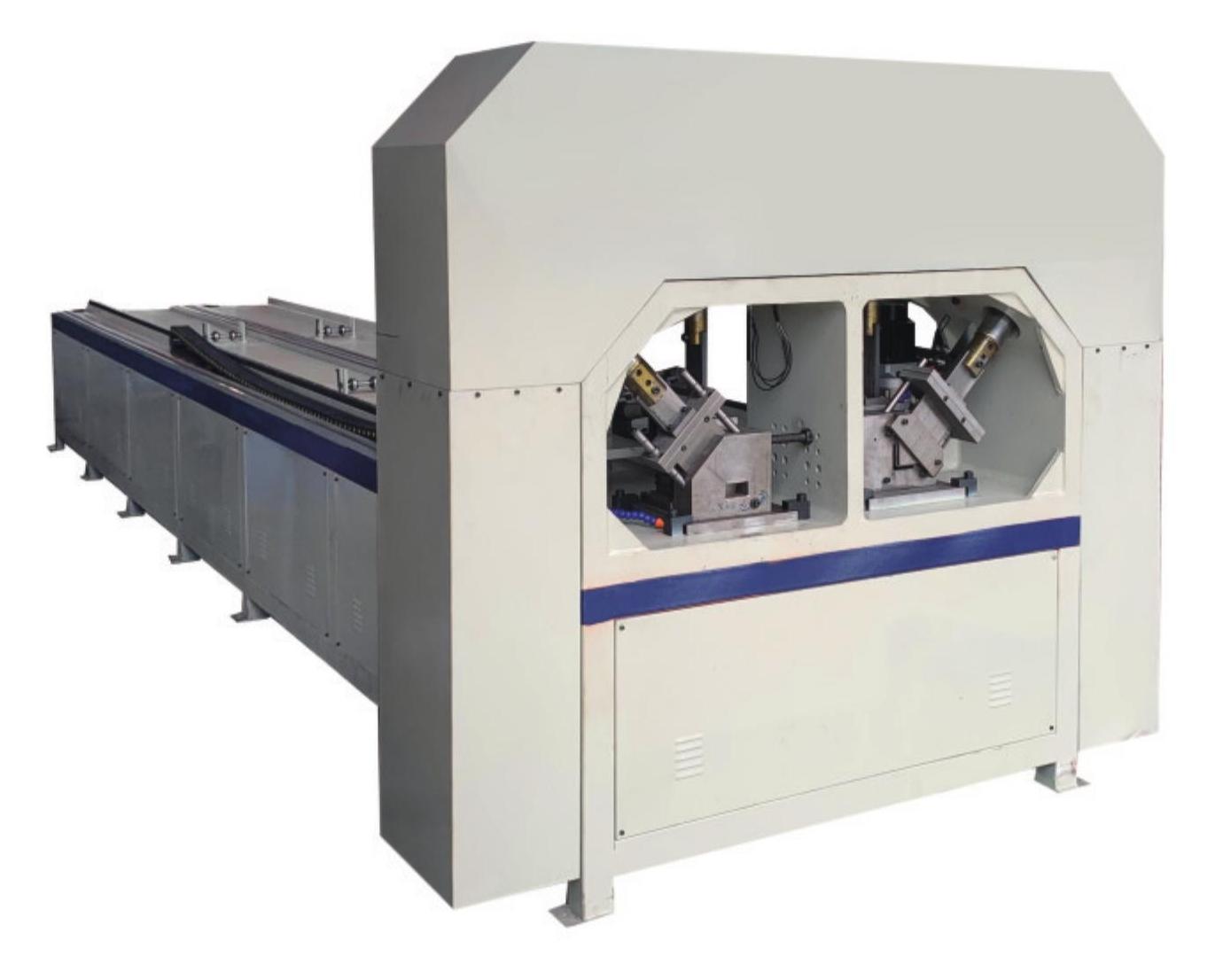

HYDRAULIC CNC PUNCHING AND CUTTING MACHINE

Machinery Features

• CNC profile and pipe punching machine, maximum punching pipe 100 × 5mm.

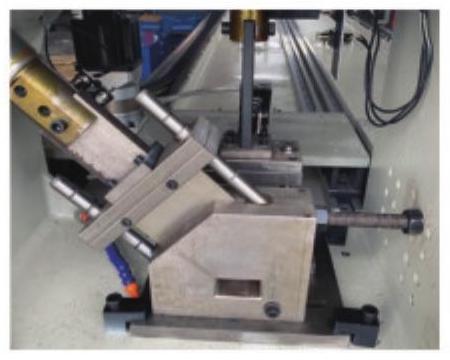

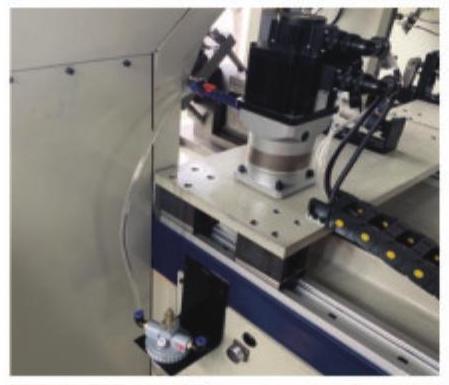

• Servo motor and planetary reducer accurate feeding, 40 ton hydraulic cylinder punching (customizable).
• The power of the motor is 7.5/11kw, pneumatic / hydraulic clamp, automatic needle cooling device.
• Automatically start hydraulic oil cooler and fan, automatically blow waste.
• CNC system and 7-inch touch screen, manual or automatic operation on the screen.
• View daily / total production on the screen and follow error messages on the screen and observation pages.
• Optional pedal or button control, stamping 3–10m machine length optional.

Application Range

• Building climbing rack, shelf, guardrail, steel structure, mining machinery, solar support and so on.

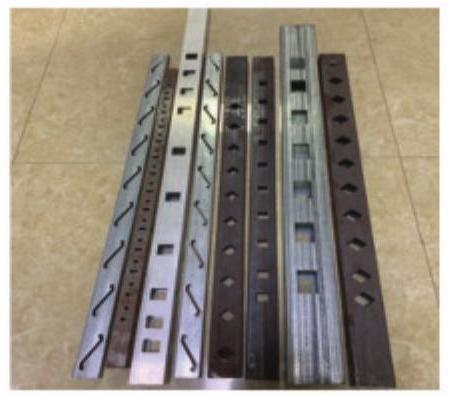

• Processing pipe, angle steel, channel steel, I-beam, aluminum profile, flat iron, special-shaped materials and so on.
