Main Performance Specifications
- Product specification: NPS 1/2" ~ 2" (DN15 ~ 50)
- Applicable temperature: -20 ~ 120 °C
- Nominal pressure: PN 1.6MPa
- Design and manufacture: GB/T 12237 / ANSI B16.34

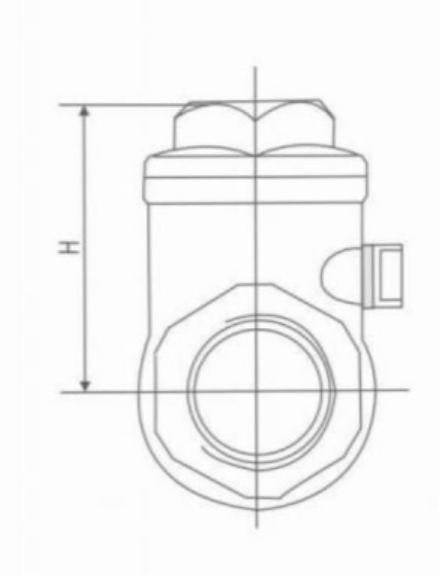

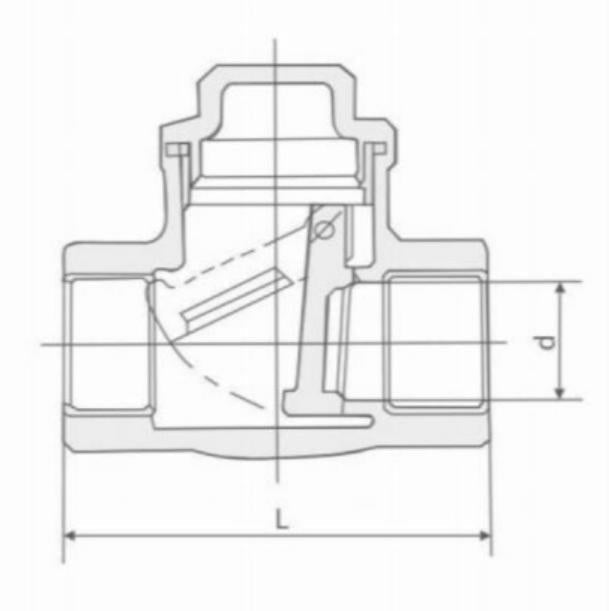

- Dimension reference: GB/T 9113.1/ASME B16.5 CLASS150
- Structural length: GB/T 12221/ASME B16.1
- Thread standard: according to BSPT/BSP/NPT/DIN/JIS /RC/G
- Inspection and test: GB/T 13927/API 598
