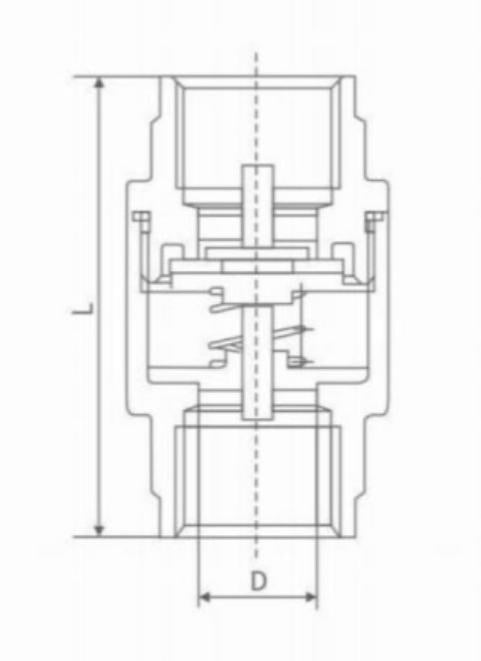

Schemc
Main Performance Specifications
Product specification: NPS 3/8"~3" (DN10~80)
Applicable temperature: -20~180°C
Nominal pressure: PN 1.6~6.4MPa
Design and manufacture: GB/T 12237/ANSI B16.34
Connection size: GB/T 9113.1/ASME B16.5 CLASS150
Structural length: GB/T 12221/ASME B16.1
Thread standard: according to BSPT/BSP/NPT/DIN/JIS/RC/G
Inspection and test: GB/T 13927/API 598
