Product Introduction

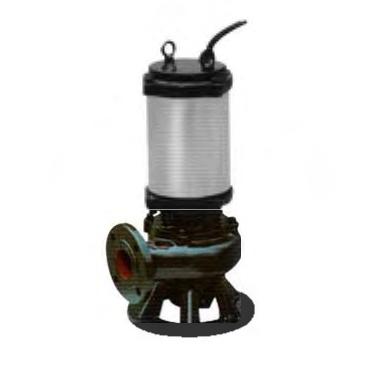

JYWQ, JPWQ series of automatic mix sewage pump is the use of automatic mixing device based on ordinary type sewage pump, the device with the motor shaft, mixing a very strong force, the sediment sewage tank stirred into suspension, suction pump discharge, improve the anti clogging sewage pump, capacity, disposable completion of drainage, cleaning, in addition to silt, save operating costs, is advanced and has obvious practical environmentally friendly products.
The Conditions of Use
- The medium temperature does not exceed 60 degrees, medium, severe 1-1.3kg/dm3 and pH in the range of 4-10.
- 1Cr18Ni9Ti stainless steel can be used in a variety of corrosive medium.

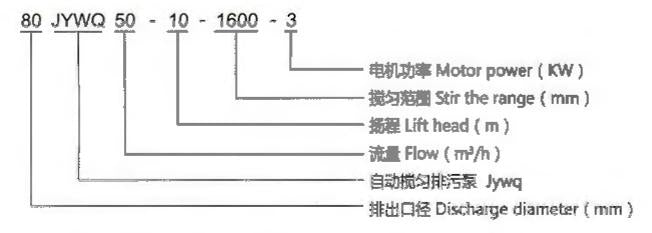

Type Designation
Structure Characteristics
- The unique double channel non clogging impeller structure, increase the flow capacity and the ability of sewage discharge.
- Automatic mixing device, mixing a very strong force, the pool of sediment mixing, into suspension after suction impeller discharge, reach the dredging effect.
- Divides the pedestal of a two, mixing with the water affect each other.
- For the double end mechanical seal mechanical seal in oil chamber in the long term, to ensure safe and reliable operation of the pump.
- Vice impeller fluid power sealing structure, both to protect the secondary seal, mechanical seal, and balance the axial force, prolong the service life of the bearing.
- Pump wiring cavity is provided with a leak detection probe, leaking, the probe signal, the control system implemented to protect the pump, the company can be matched with automatic safety protection control cabinet.
- Motor stator with class B and class F insulation, equipped with thermal protector; overload protection device when the motor heating, timely action, the absolute protection of the pump and motor.
- The oil chamber is provided with a water probe, when the mechanical seal is damaged, water into the oil chamber, the probe signal, the control system implemented to protect the pump.
- Pump with internal circulation cooling system, to ensure that the water pump is working, the minimum water level in the pool.
Functional Data
