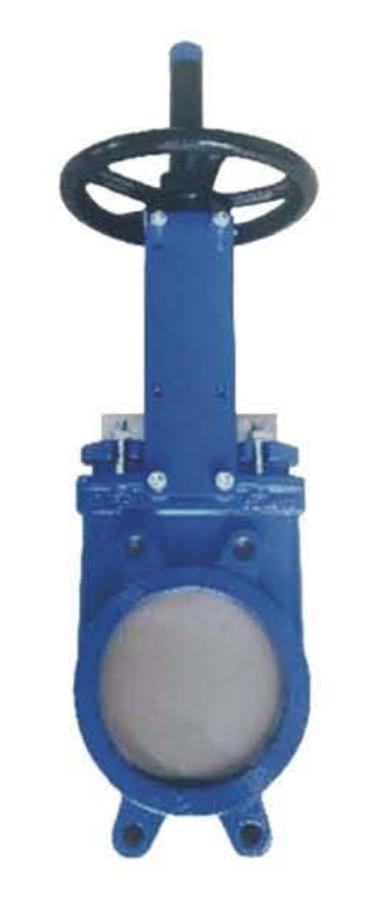

KNIFE GATE VALVE WITH FLOW DIRECTION PN10-CLASS150

Description

• Face to face: MSS-SP-81
• Testing: DIN 3230, MSS-SP-81
• Working temperature
  • NBR <80℃
  • EPDM <120℃
  • VITON <150℃

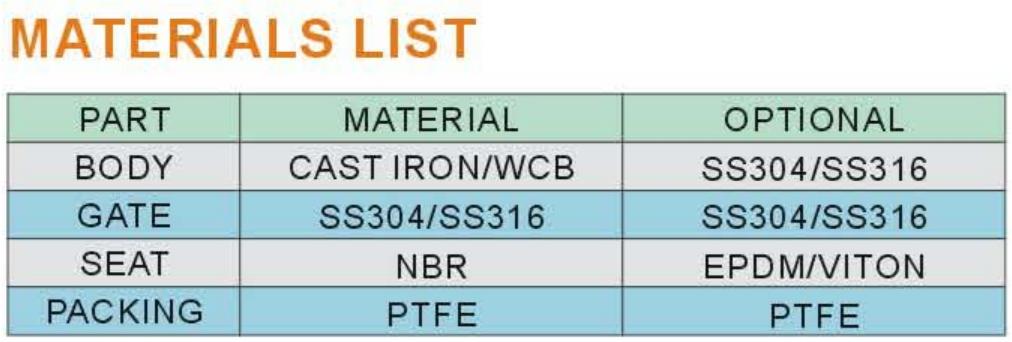

Materials List

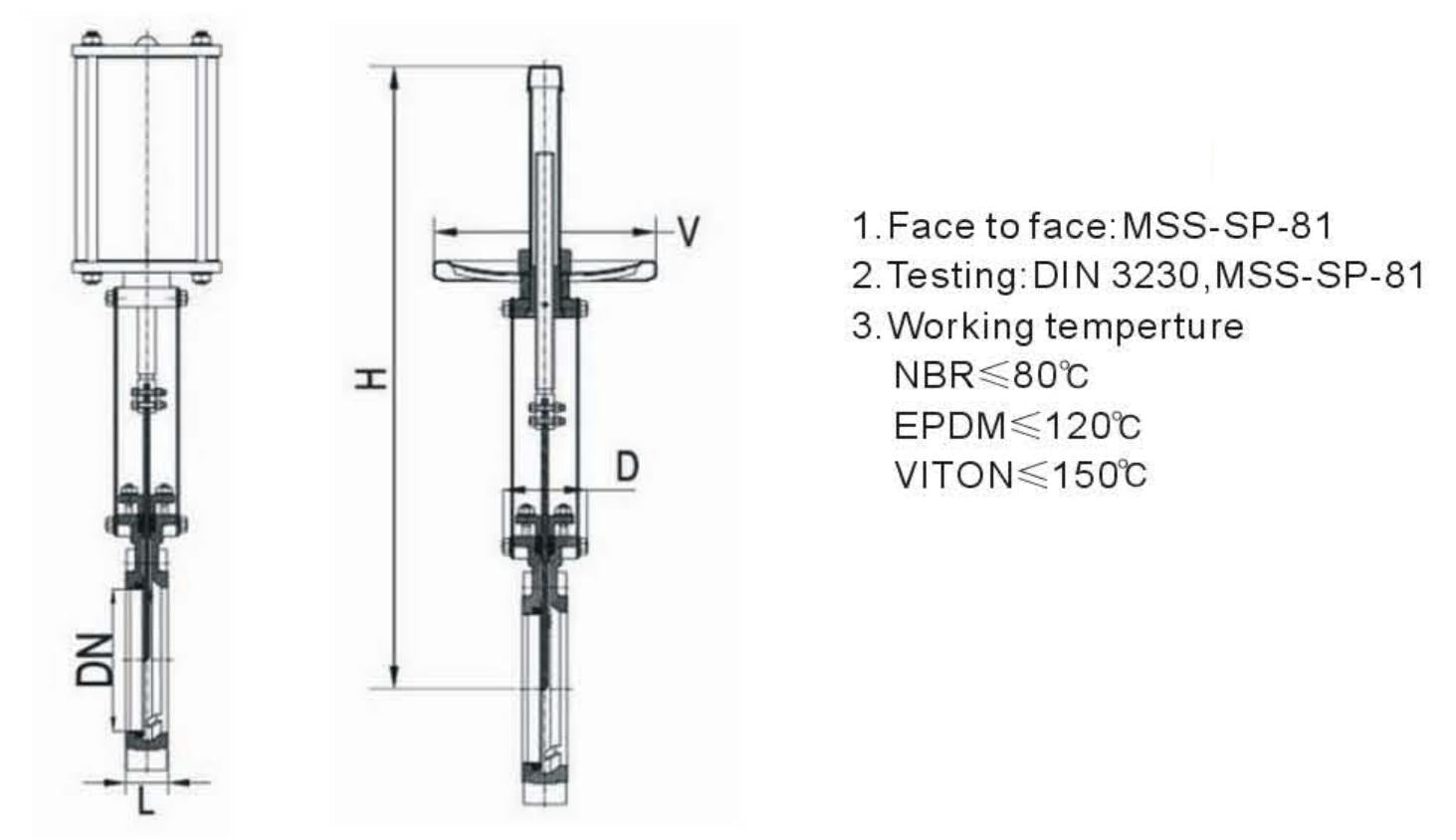

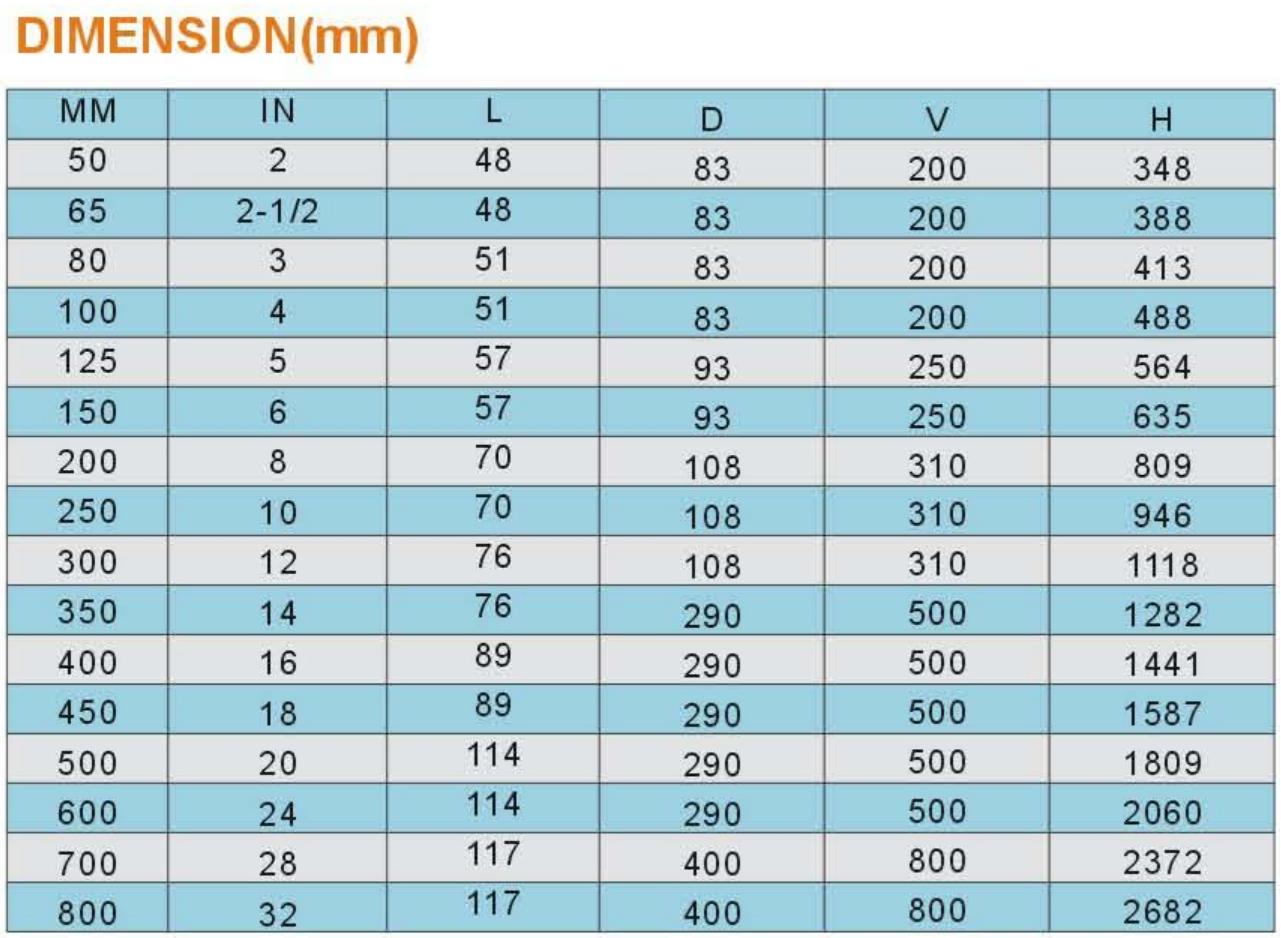

Dimension (mm)
