The compressor refrigerator is mainly used in petroleum, chemical industry, metallurgy, mining, power, environmental protection and other industries, forced lubrication in the ship and other large machinery and equipment, dilute oil supply system in all kinds of mechanical equipments work continuously for a long time. Transferring temperature is 30°C to 120°C, the viscosity is not more than 50 m2/s containing no solid particles and impurities machine oil, turbine oil lubricity and properties similar to other media.

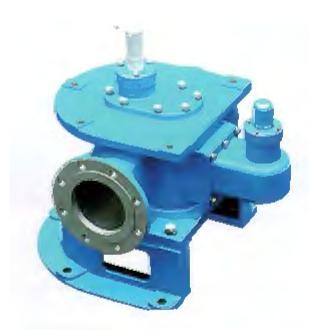

LYB vertical arc gear pump consists of body, vertical chassis, vertical joint plate, dynamic forced lubrication bearing cover, shaft, safety valve and sealing plates, the main drive gear has four spiral gear, and safety valve is differential pressure structure, oil pump and motor is direct connection structure, it has reasonable structure, stable running, low noise, long life and high efficiency properties, can suit continuous work.
