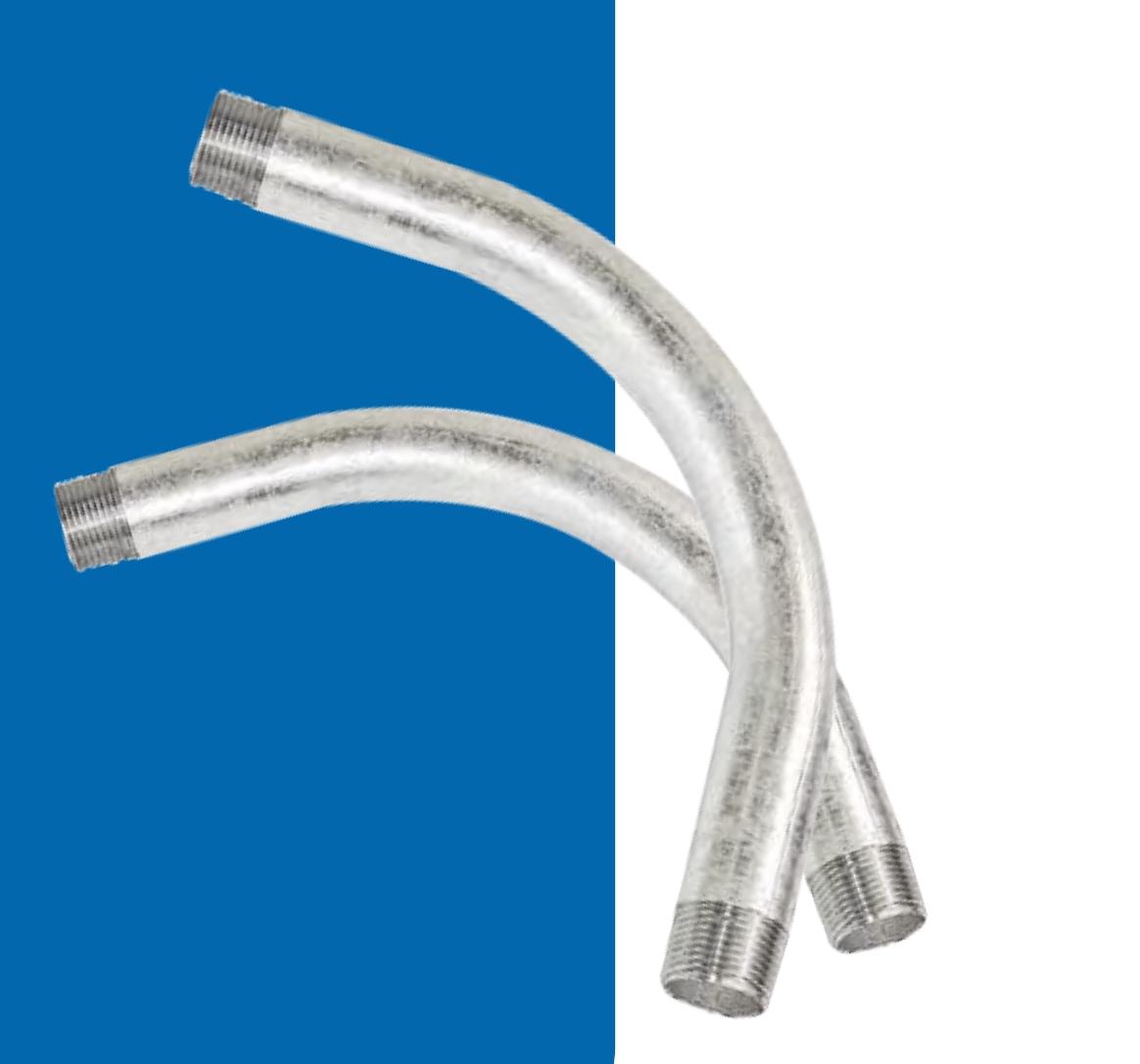

Rigid steel conduit elbow is manufactured from prime conduit shell with high-strength in accordance with the latest specifications and standard of ANSI C80.1(UL6).
Elbows are produced in normal trade sizes from 1/2” to 6”, the degree including 15°, 22.5°, 30°, 45° and 90°.
Elbows are threaded on both ends. The elbows are used to connect the rigid steel conduit to change the way of the conduit.

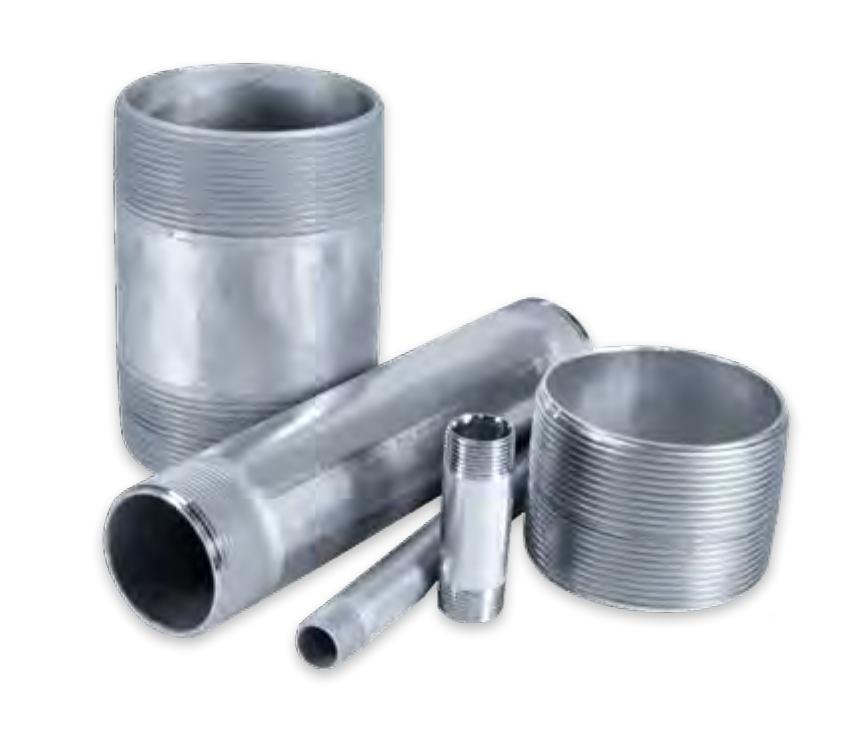

Rigid conduit Nipple is manufactured from high-strength conduit shell.
Nipples are produced in normal trade sizes from 1/2” to 6”, the length of the nipples including close nipples, 1-1/2”, 2”, 2-1/2”, 3”, 3-1/2”, 4”, 5”, 6”, 8”, 10”, 12” or according customer’s request.
The nipples are used to connect the rigid steel conduit to extend the length of the conduit.
Elbows with special radius or special degree available upon request.
NOTE
Each lot of 100 nipples shall weigh not less than the number of pounds (kilograms) determined by the formula: W = 100 * (LA) - B
where W is the unit weight of 100 nipples / L is the length of one nipple / A is the nipple weight per unit length / B is the weight lost in threading 100 nipples.
