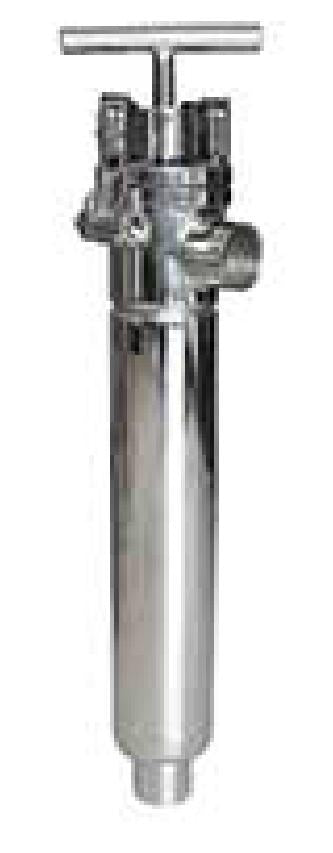

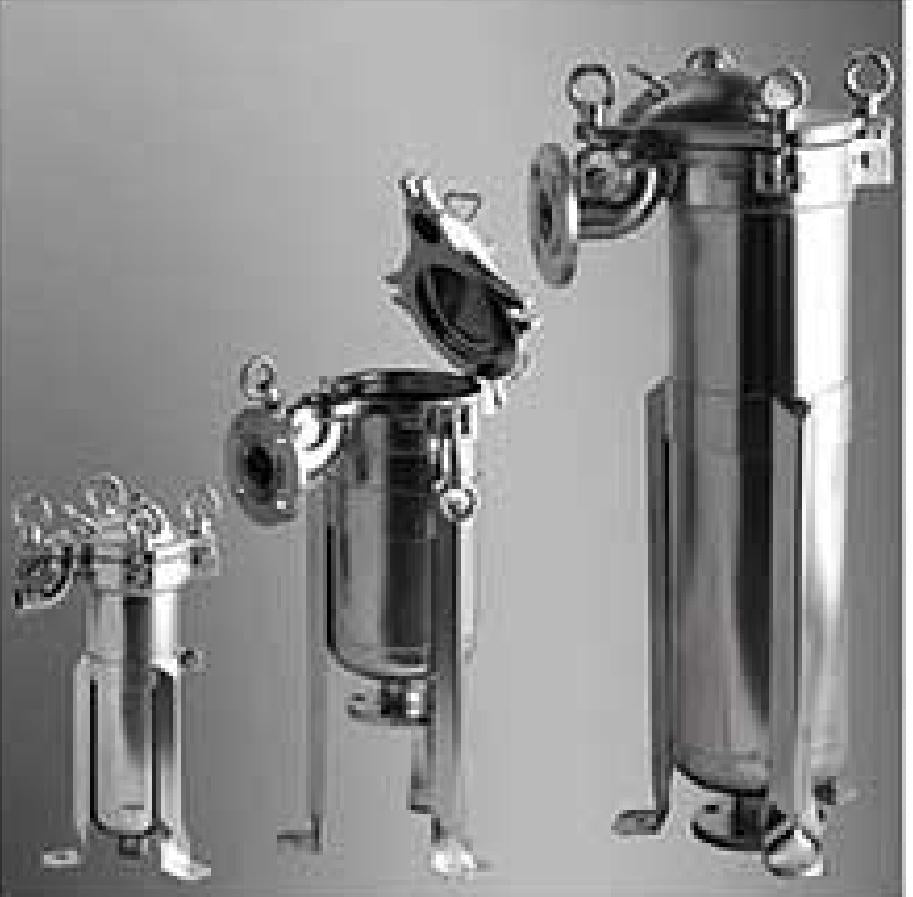

The bag filter has a quick-opening sealing structure and a O-ring sealing type, making it easier to clean. The filter residue is small, and it is very convenient to replace the filter bag. Single-bag filters have side-entry filters and top-entry filters. The standard single-bag side-entry filters are cost-effective filters for conventional filtration applications. They are made of stainless steel, SS304, and SS316L materials. Designed and manufactured according to chemical standards, with excellent corrosion resistance, safety and reliability, and durability. The upper cover is designed with quick opening, loosen the round nut to open the upper cover, and the replacement of the filter bag is convenient and quick. At present, it has been widely used in various filtering conditions. The top-entry single-bag filter is a multi-purpose filter equipment with novel structure, small size, simple and flexible operation, energy saving, high efficiency, airtight work, and strong applicability.

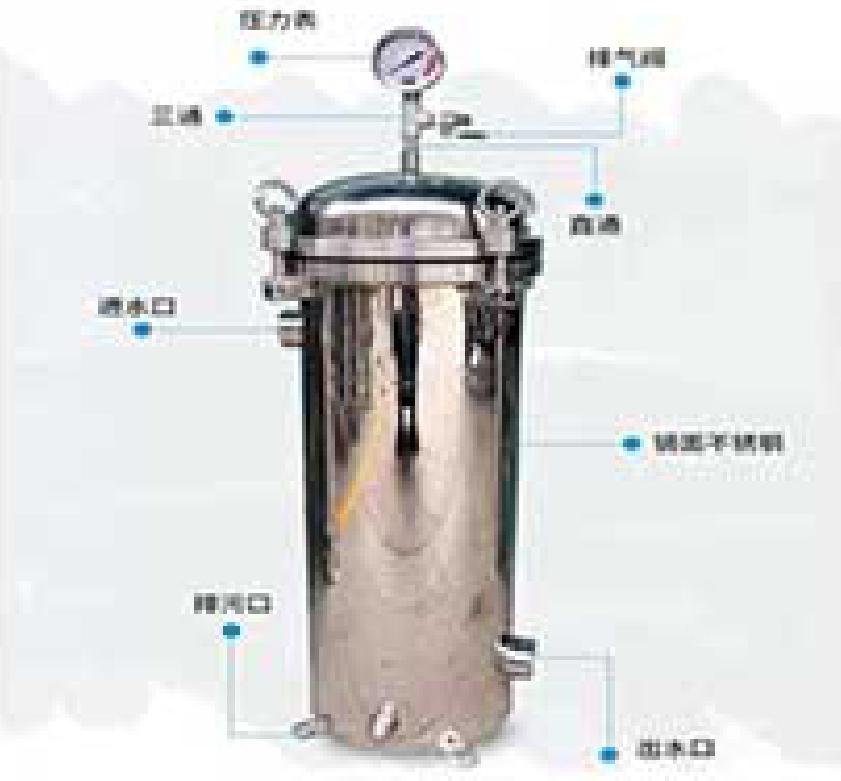

Product Details (Core Components)
- The larger treatment capacity is the reference value when treating water, the actual value will be different due to the change of liquid viscosity, impurity content and pressure difference
- Filters made of stainless steel, 304 stainless steel, 316L stainless steel and plastic are available
- Provide various O-rings of different materials to meet the requirements of different fluids and working temperatures
- The locking method of the filter cover can be made into a hoop type, a buckle type, a ring type, etc.
Product Application
Mainly used for the filtration of paint, beer, cosmetics, vegetable oil, electroplating solution, milk, industrial water, latex, sugar water, fruit juice, vinegar, resin, ink, and wastewater industrial.
Specification
- Specifications: GB, AMS, DIN, JIN, customized; single-bag type, parallel type, multi-bag type, filter element type;
- Model: S, T series, PBF polypropylene container, etc.;
- Rated flow: 6, 10, 23, 51..., 1088 tons/hour, etc.;
- Rated working pressure: 10, 20., kg/cm², etc.;
- Cylinder material: 304, 316 stainless steel (internal and external sandblasting or polishing treatment) or customized materials on request;

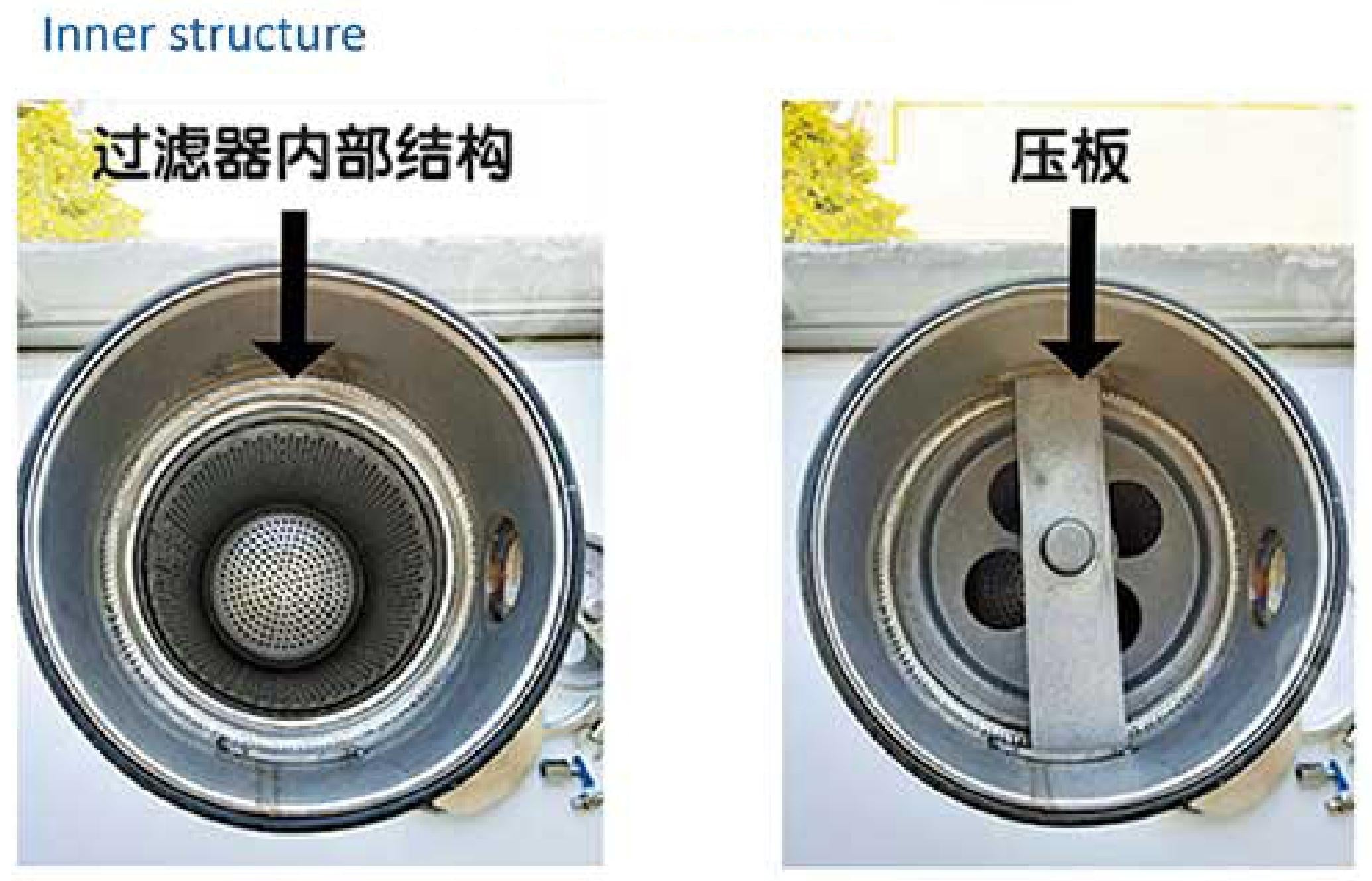

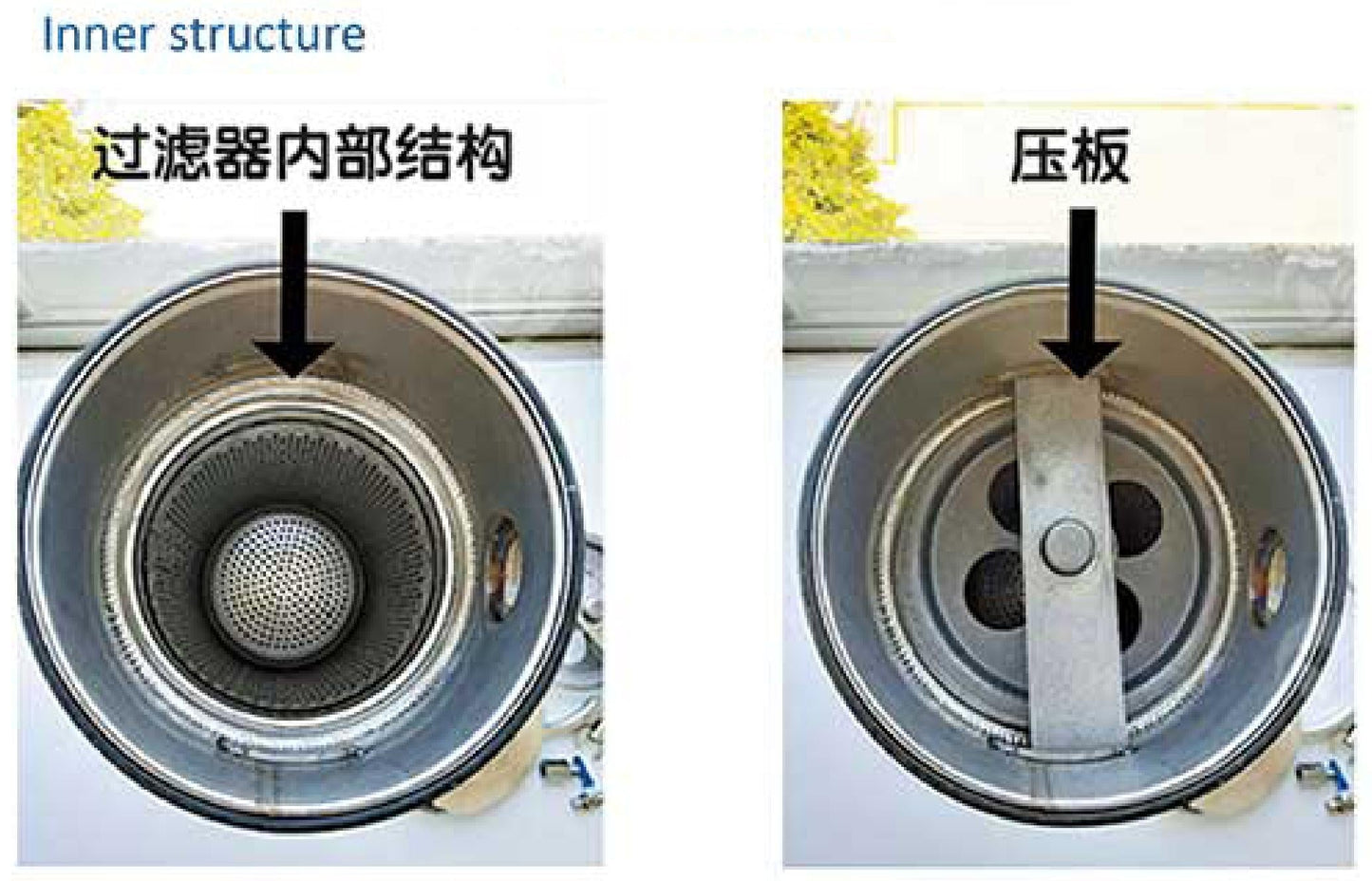

- Built-in high-strength support filter basket: made of high-strength stainless steel mesh with a uniform aperture of 3.5mm;
- Import and export size: 1-14 or customized;
- Import and export position: side in and side out, side in and bottom out, top in and bottom out, top in and side out, or customized according to requirements;
- Interface type: flange, screw port or customized according to requirements;
- Filtration accuracy: 1-800um (micron) relative or absolute accuracy.
