Schemc
Main Performance Specifications
Product specification: DN 15~50
Nominal pressure: PN 1.0/1.6MPa
Applicable media: water, air, oil, acid
Applicable temperature: -20 ~ 280 °C
Thread standard: according to BSPT/BSP/NPT/DIN/JIS/RC/G
Connection size: GB/T 9113.1/ASME B16.5 CLASS150
Structural length: GB/T 12221/ASMW B16.1
Design and manufacture: GB/T 12224/ANSI B16.34
Inspection and test: GB/T 13927/API 598
Material of Main Parts

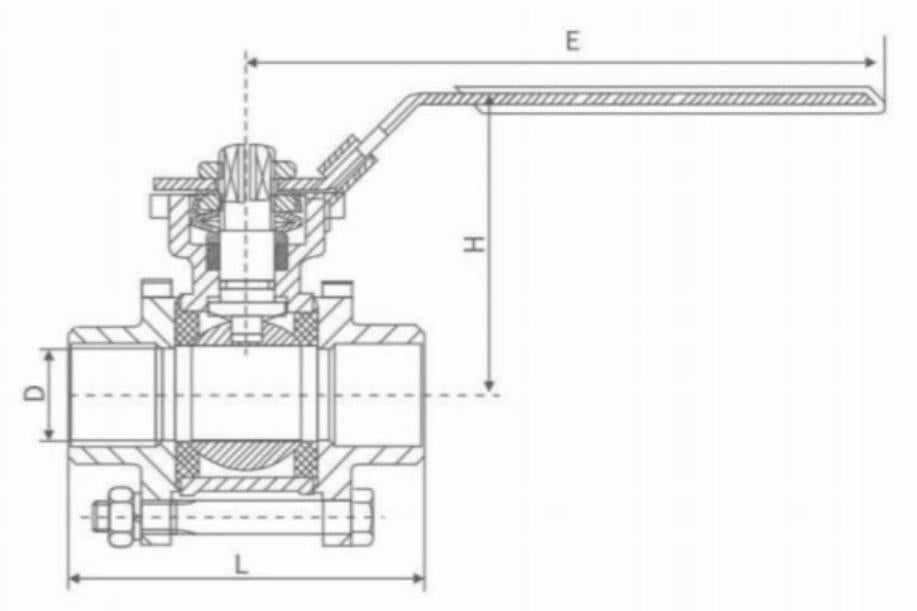

Main External and Connecting Dimensions
