Main Performance Specifications
- Product specification: DN 15~100
- Nominal pressure: PN 1.6MPa
- Applicable medium: water, gas and oil
- Applicable temperature: -20 ~ 120°C
- Thread standard: BSPT/BSP/NPT/DIN/JIS/RC/G
- Design and manufacture: GB/T 12224/ANSI B16.34
- Inspection and test: GB/T 13927/API 598
- Air pressure test: 1.6MPa

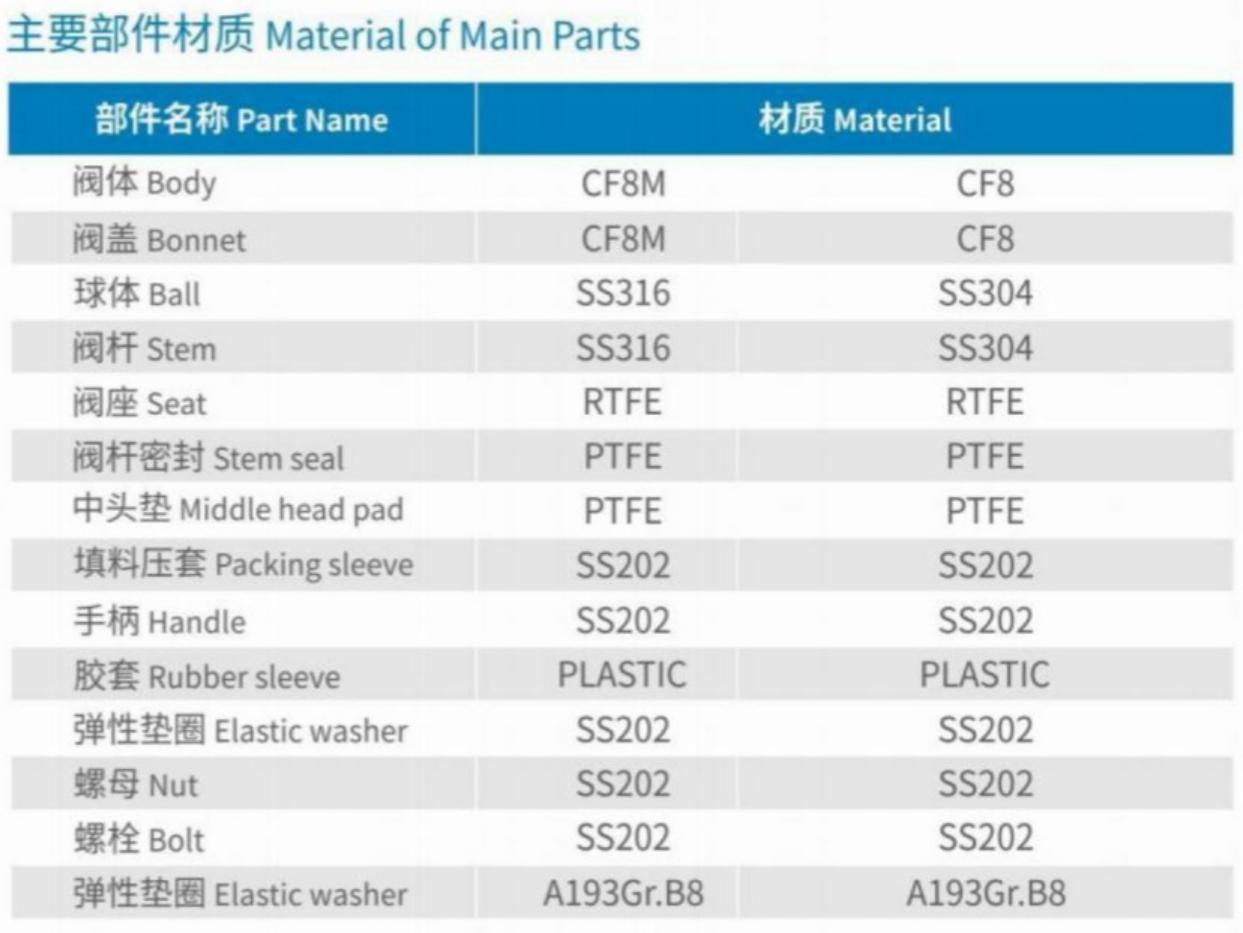

Material of Main Parts

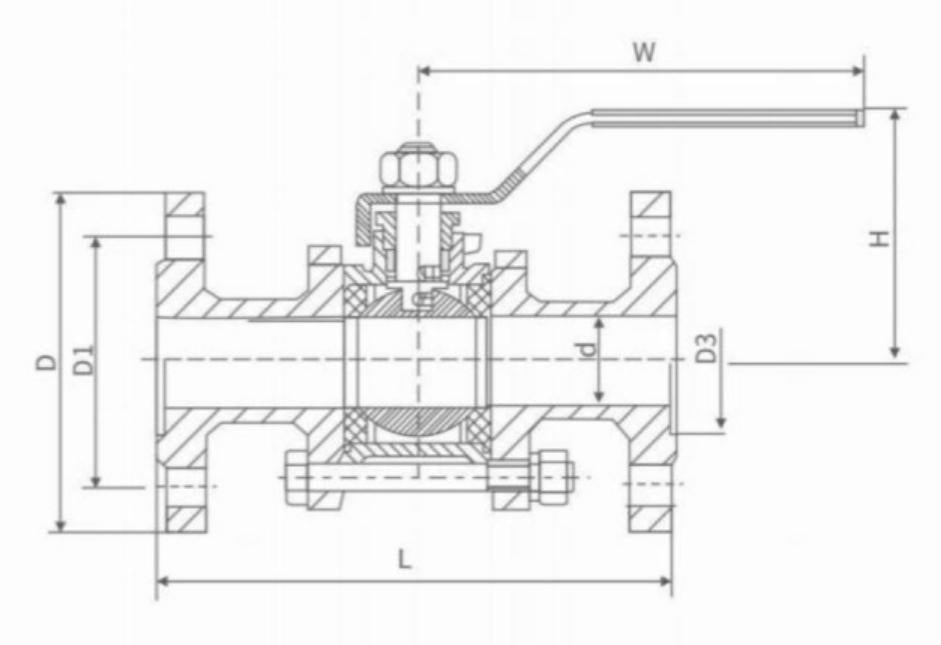

Main External and Connecting Dimensions
