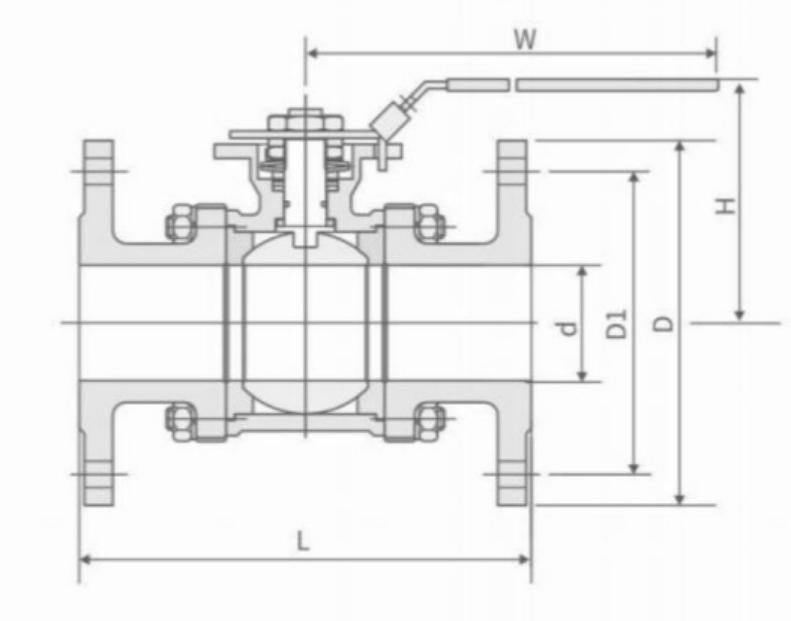

Schemc
Main Performance Specifications
Product specification: DN15~50
Nominal pressure: PN 1.6MPa
Applicable medium: water, gas and oil
Applicable temperature: -20 ~ 280°C
Thread standard: BSPT/BSP/NPT/DIN/JIS/RC/G
Design and manufacture: GB/T 12224/ANSI B16.34
Inspection and test: GB/T 13927/API 598
Air pressure test: 1.6MPa

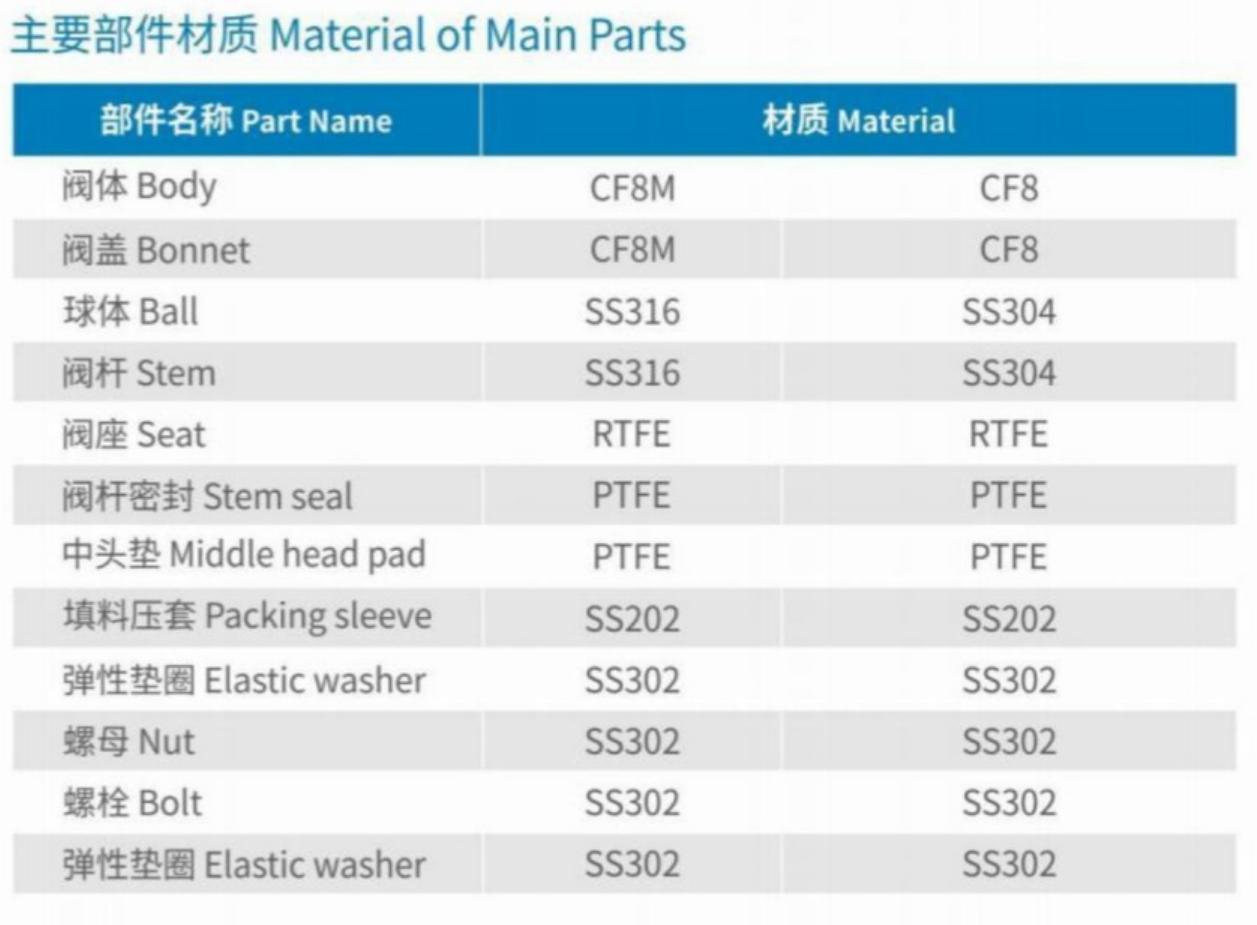

Material of Main Parts

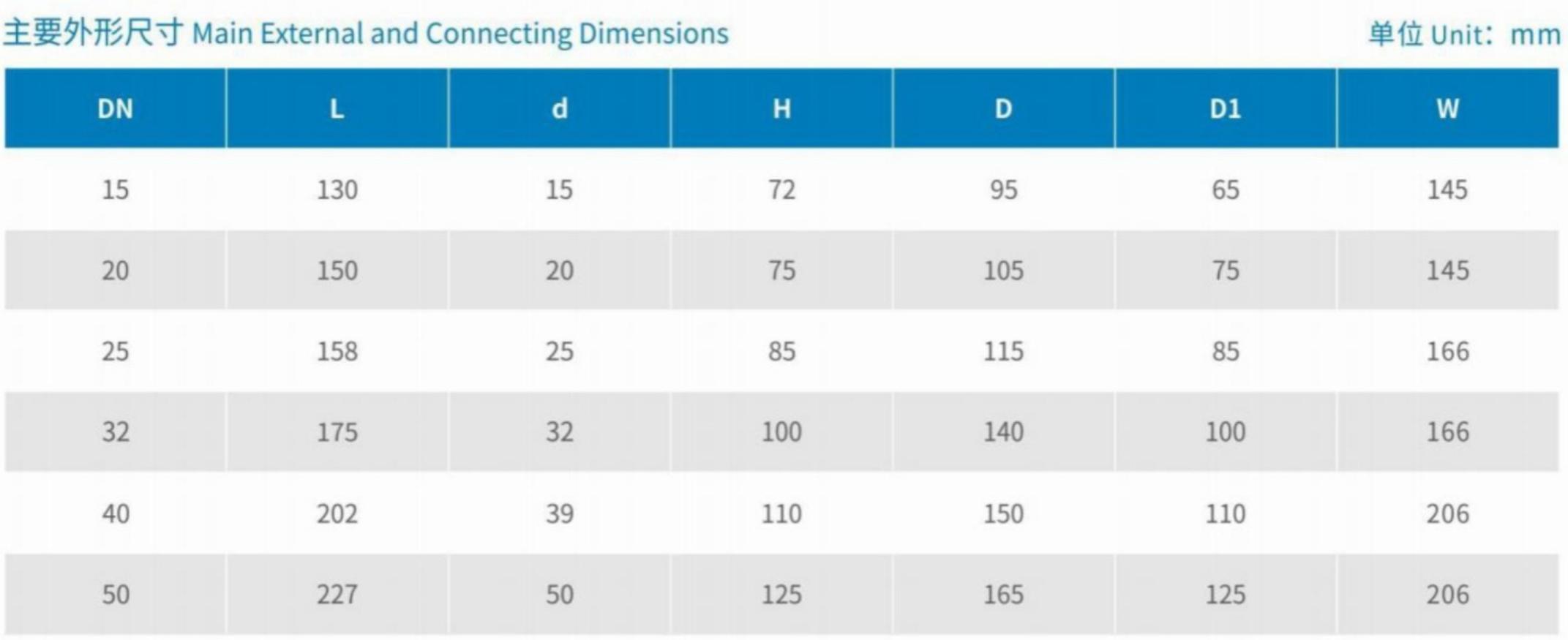

Main External and Connecting Dimensions
