Schemc
Main Performance Specifications
Product specification: DN 15 – 50
Nominal pressure: PN 63 / 1000WOG
Applicable media: water, air, oil
Applicable temperature: -20 – 280°C
Design and manufacture: GB/T 12224/ANSI B16.34
Thread standard: according to BSPT/BSP/NPT/DIN/JIS/RC/G
Inspection and test: GB/T 13927/API 598
Air pressure test: 4.0MPa
Material of Main Parts

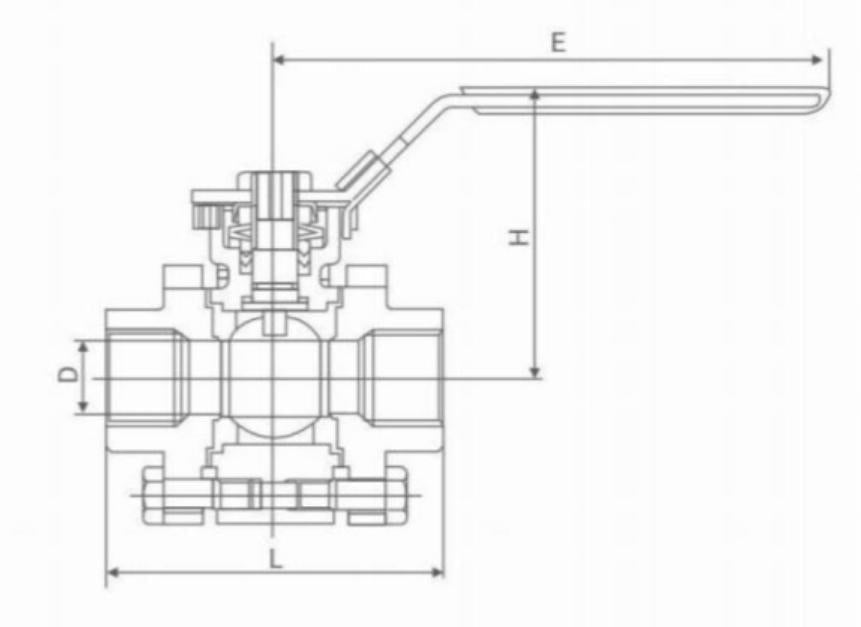

Main External and Connecting Dimensions
