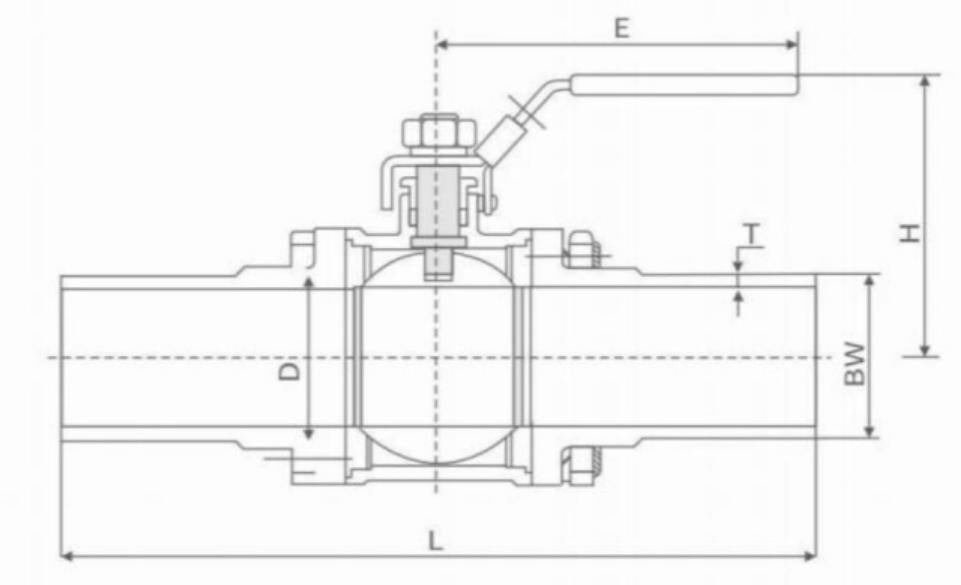

Schemc
Main Performance Specifications
Product specification: DN 15~100 (NPS 1/2"~4")
Nominal pressure: PN 1.0 / 1.6MPa
Applicable media: water, air, oil, acid
Applicable temperature: -20 ~ 120°C
Thread standard: according to BSPT/BSP/NPT/DIN/JIS/RC/G
Design and manufacture: GB/T 12224/ANSI B16.34
Inspection and test: GB/T 13927/API 598
Material of Main Parts
Main External and Connecting Dimensions
