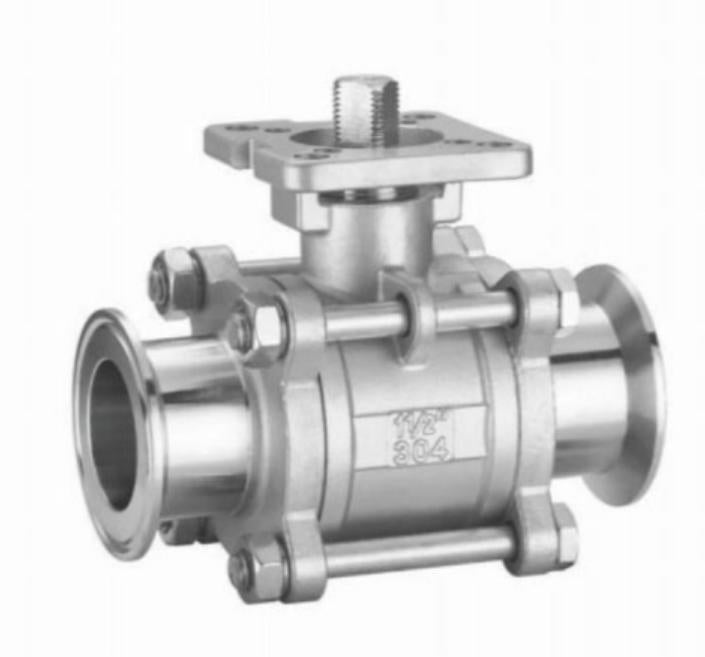

THREE-PIECE QUICK-FIT HIGH PLATFORM BALL VALVE

Product specification: NPS 1/2"–4"

Nominal pressure: PN 1.0/1.6MPa

Applicable media: water, air, oil

Applicable temperature: -20 – 120 °C

Thread standard: according to BSPT/BSP/NPT/DIN/JIS/RC/G

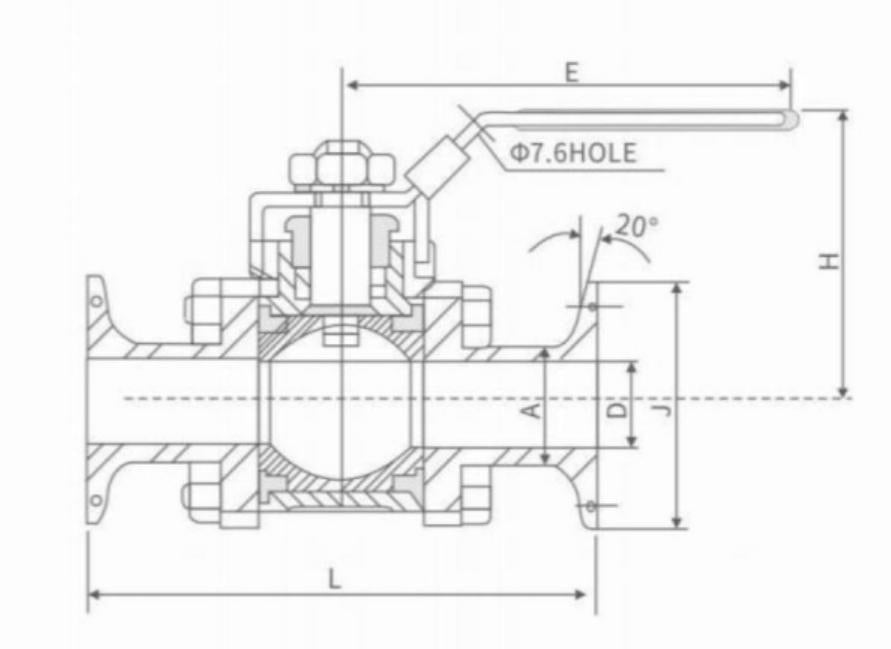

Structural length: GB/T 12221/ASME B16.1

Design and manufacture: GB/T 12224/ANSI B16.34

Inspection and test: GB/T 13927/API 598
