Schemc
Main Performance Specifications
Product specification: NPS 1/4"~2" (DN6~50)
Nominal pressure: PN 1.6MPa
Applicable media: water, air, oil
Applicable temperature: -20 ~ 220 ℃
Thread standard: according to BSPT/BSP/NPT/DIN/JIS/RC/G
Design and manufacture: GB/T 12224/ANSI B16.34
Inspection and test: GB/T 13927/API 598

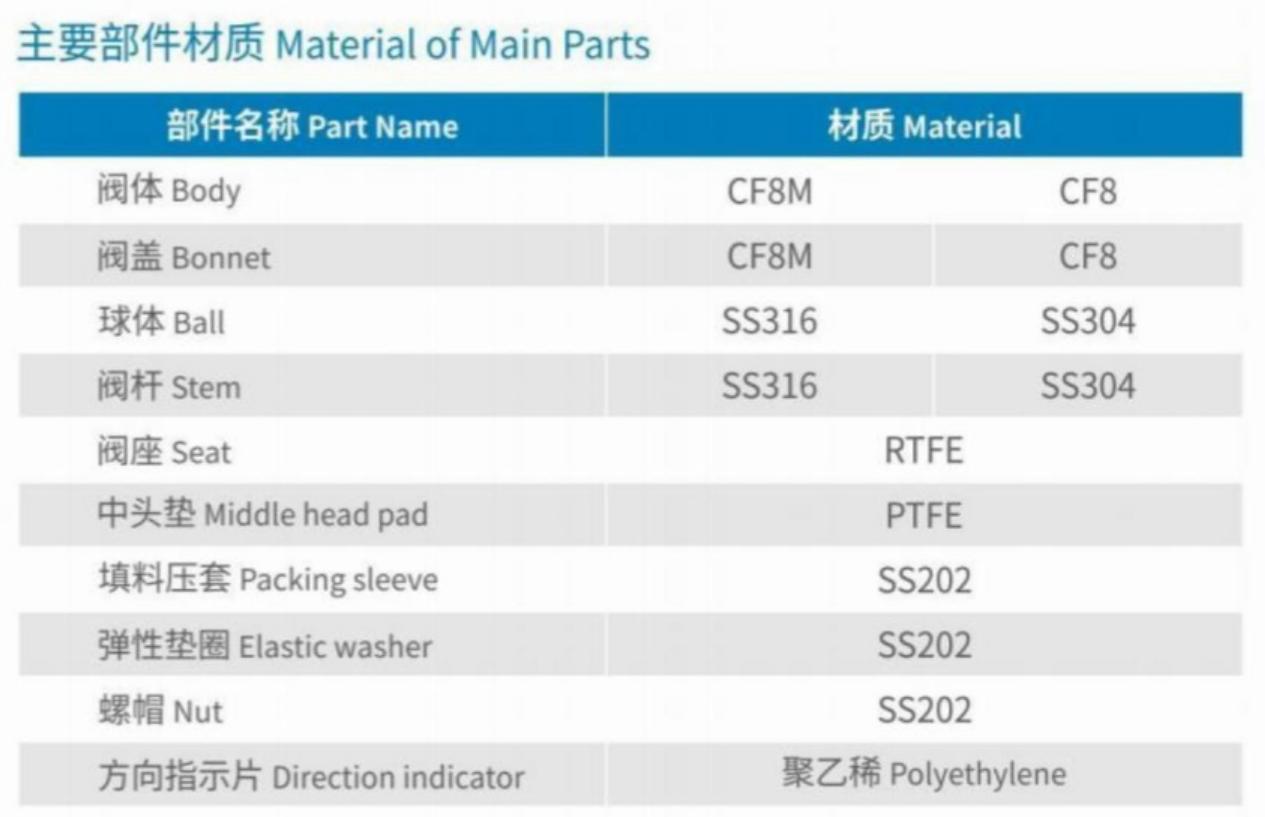

Material of Main Parts

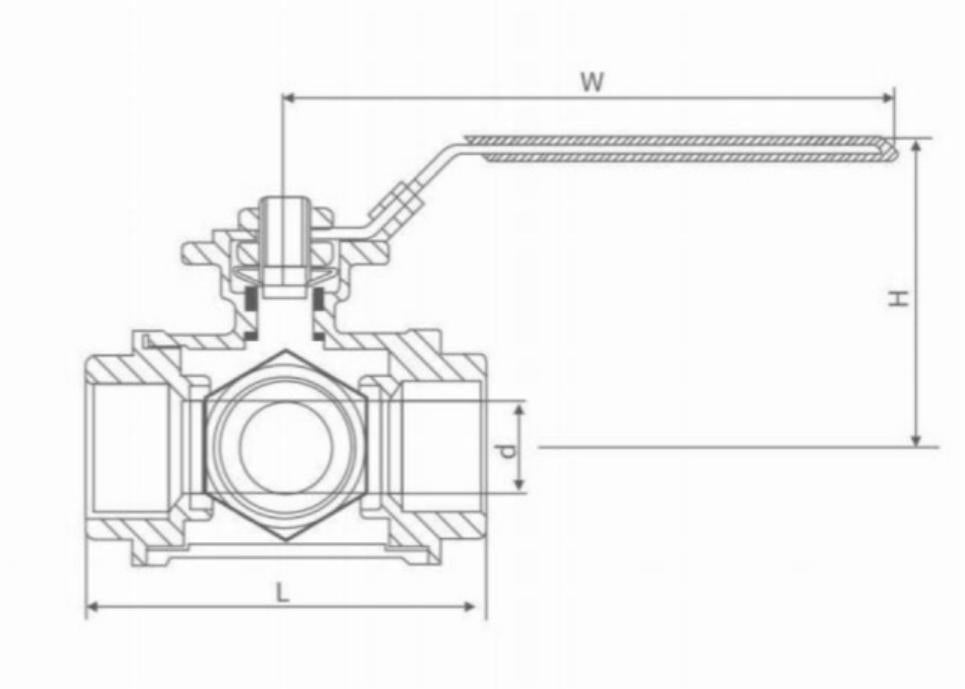

Main External and Connecting Dimensions
