Brief Introduction
1. The pump adopt international standard design, the impeller is a conical type structure; suitable for conveying liquid containing particles concentration and suspension;
2. Horizontal radial split, after the door structure, assembly and disassembly without removing the pipeline pump and motor; with high head, small flow and low cavitation allowance etc;
3. Pump shaft seal adopts dynamic seal and mechanical seal, safe and reliable.
4. Impeller cover wear parts can be replaced conveniently and quickly, repair, reduce the production cost;
5. The pump rotor of axial compensation, improve the service life.
Application Scope

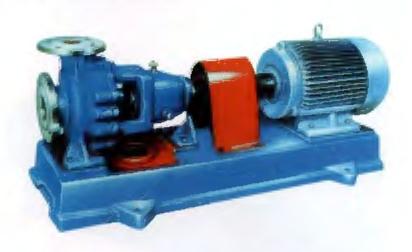

TSB chemical centrifugal pump is applicable to chemical, oil, grease, cosmetics, pharmaceutical, food and other industries in the production of transportation of solid particles of 10% liquid and all kinds of suspension, choose different material, but also transport a variety of corrosive liquid. The transmission medium temperature of -20 DEG ~180 DEG, special structure can reach 350 DEG C.
