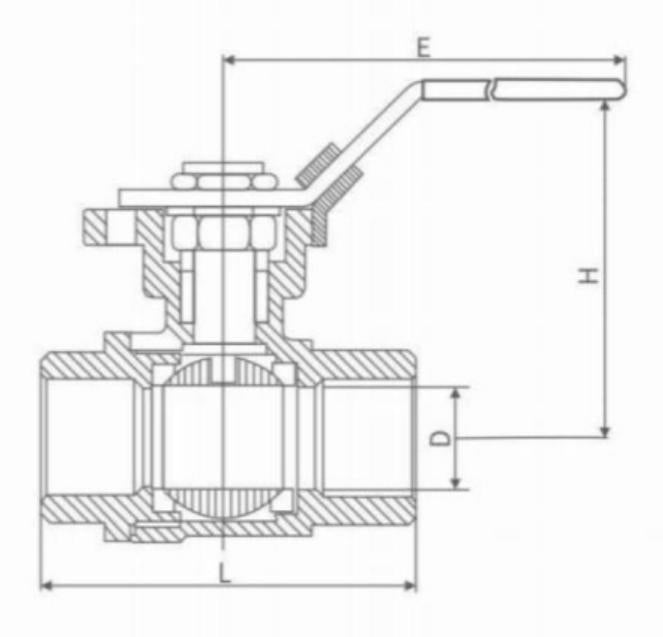

Schemc
Main Performance Specifications
Product specification: NPS 1/2” – 4”
Nominal pressure: PN 1.0/1.6MPa
Applicable media: water, oil, air, acid
Applicable temperature: -20 – 120 °C
Thread standard: according to BSPT/BSP/NPT/DIN/JIS/RC/G
Design and manufacture: GB/T 12224/ANSI B16.34
Inspection and test: GB/T 13927/API 598

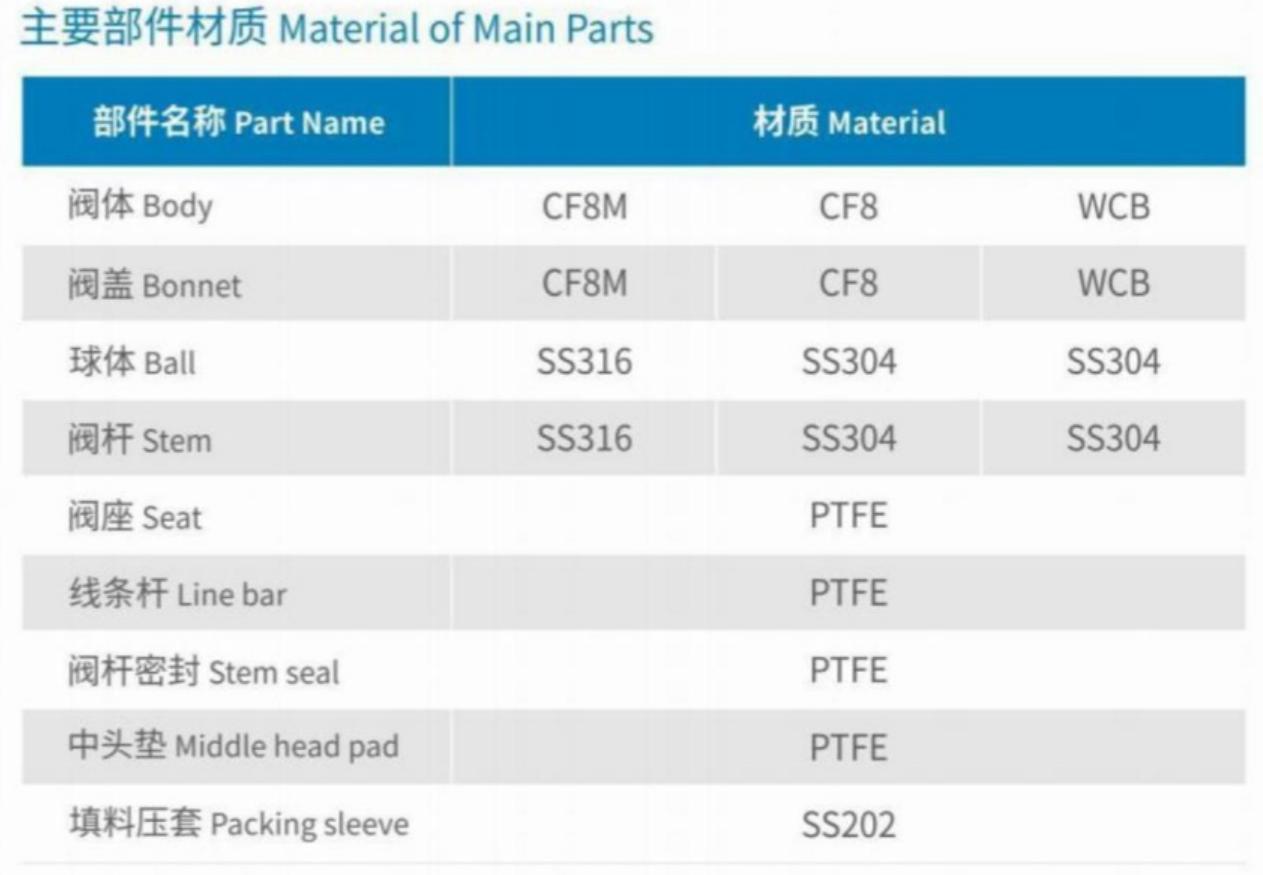

Material of Main Parts
Main External and Connecting Dimensions
