Main Performance Specifications
- Size range: NPS 1/4"~3" (DN 6~80)
- Nominal pressure: PN 1.0 / 1.6MPa
- Applicable media: water, air, oil, acid
- Applicable temperature: -50~232°C
- Thread standard: according to BSPT/BSP/NPT/DIN/JIS/RC/G
- Design and manufacture: GB/T 12224/ANSI B16.34
- Inspection and test: GB/T 13927/API 598
Material of Main Parts

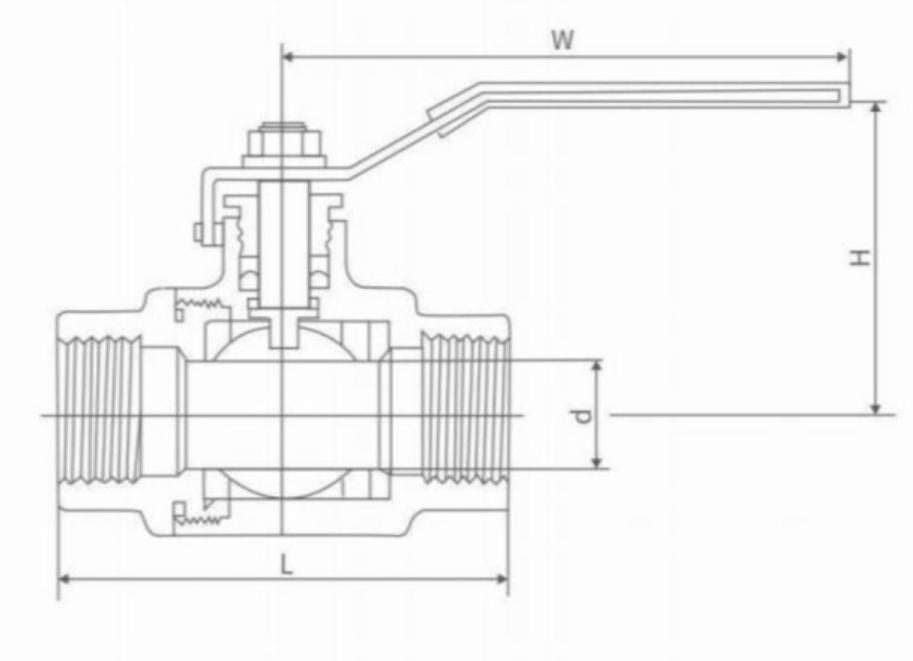

Main External and Connecting Dimensions
