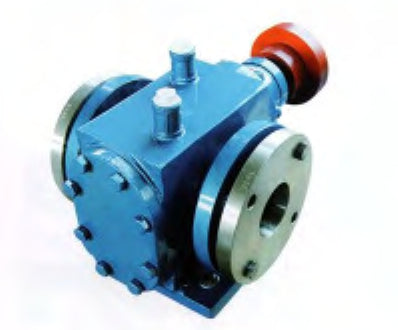

YCB-G TYPE HEAT INSULATION CIRCULAR GEAR PUMP

Brief Introduction

This series of heat insulating gear pump is used to transfer different medium, such as heavy oil, asphalt, resin, detergent and glue, which not includes solid particles and the temperature not higher than 300°C, with solidifying character under the normal temperature. It also applies to the site with heat insulated requirement in the process technology and outdoor installation at cold area.

This series of heat insulating gear pump belongs to external gear pump, the tooth form is composite formed by arc and sine curve. It could transfer many kinds of medium with steady output flow and pressure. There are heat insulating jacket and inlet and outlet joints on the pump casing, so it could adopt the media, such as heat-conducting oil, steam, hot water and cold water to heat, keep warm and cooling the transferred medium and pump. When the viscosity of transferred medium is larger than 1500cst, speed should be reduced.

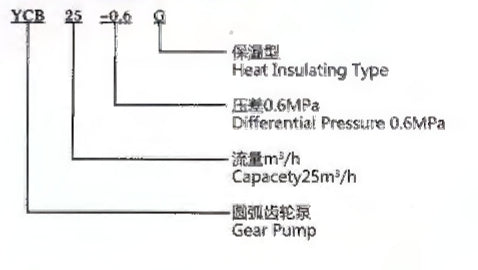

Model Explanation

Functional Data

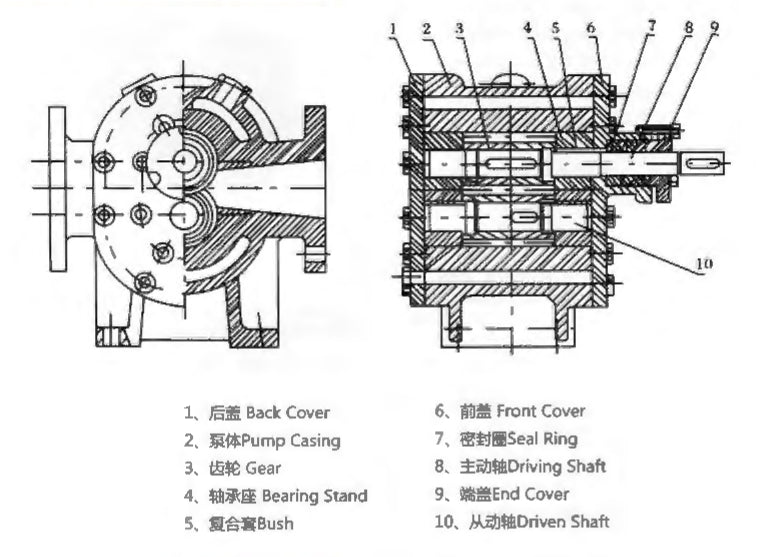

Brief Introduction of Structure

This series of heat insulating gear pump has simple and compact structure. It is convenient for use and maintenance. The main parts adopt high quality steel with precise processing, so it has good quality. It has good performance of self-priming, so it needs not to be filled oil before operate the pump every time. Watch the pump front motor, the rotation direction is clockwise.

1. Pump Casing
   One pair of gears and four bearing stands are reset in the hole of pump casing. The front cover and the back cover were set at ahead and behind. User could connect the pipe line by using flanges at both sides, and connect the heat insulated medium entrance of the outer pump by using two screwed holes on top of pump casing.
2. Gear and Shaft
   Spiral gear and shaft compose of shaft-gear. The helical shaft gear and herringbone shaft gear could be adopted according to different specifications and capacity.
3. Bearing stand bush(Sliding Bearing)
   After the bearing stand and bush are fitted together, put them into the pump casing and support the gear operate.
4. Gasket
   Gasket is put at compact plane between the pump body and front or back cover, and has the seal ability of jointing plane.
5. Shaft Seal
   Shaft seal has axial sealing function for the input shaft end of pump. There is shaft packing room at the front cover of pump. It could be equipped with mechanical seal or packing.
